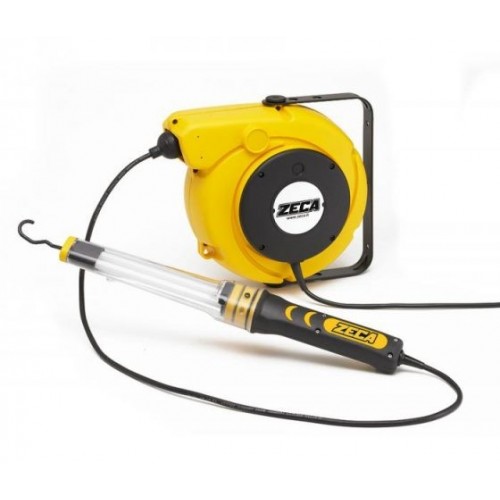

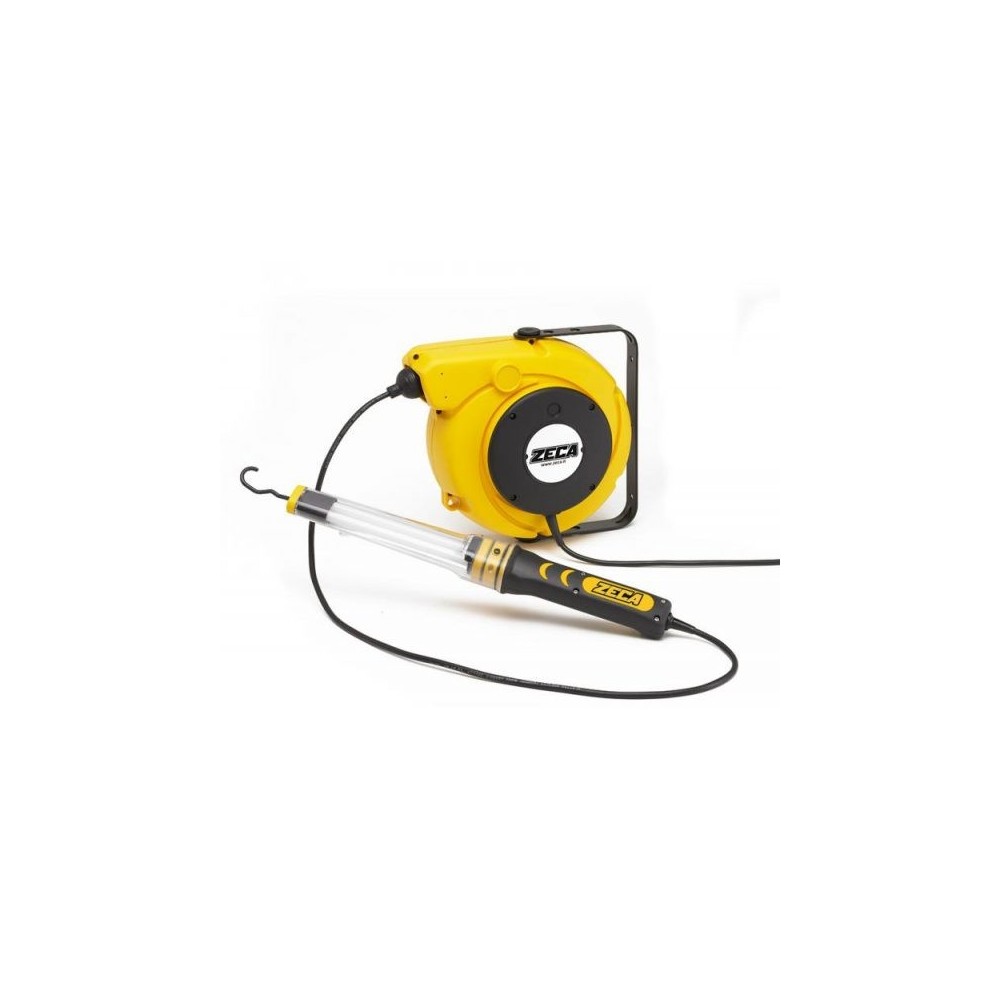

5908/328 IP55 CABLE IP55 WITH TRANSFORMER AND LAMP ZECA

CABLE IP55 WITH TRANSFORMER AND LAMP ZECA MODEL 5908/328 IP55

Cable reels for applications where protection is needed special. This model provides IP55 protection. In addition, the transformer takes the power from the incoming 230V to a voltage of low output 24V, much safer for the user. The cable drum has the sliding contacts with collector ring and brushes.

The cable drum is equipped with lamp FLUO 328, by the tapered shape and the excellent enlightening power.
The secret of this lamp is the location of the electronic circuit, which is arranged in the handle.

The structure of the winder is very durable, made of impact resistant plastic.
The cable runs quickly and easily thanks to the automatic stopping device, and the recoil spring with a high resistance.

For the preparation of the cable drum is the fixing bracket and rotating wire.

Data sheet

• Cable length (m) 15,5 (14+1.5)
• Power cable 1 m
• Supply voltage 230V

• Model lamp 328 24V
• Attack lamp and power Fluorescent 11W 2G7
• Bulb supplied
• Max W bulb 3.5


• Degree of protection lamp IP64
• Protection winder IP55
• Ambient temperature of use: -5/+50°C


• Size 390x310x230 mm
• Weight 5 Kg


• Transformer
• power 14VA
• power supply: 230V
• output 24V

It is also available in a version 5908/330 IP55 lamp COB LED
