AM57/306 CABLE REEL WITH LAMP 306 SERIES AM, ZECA

CABLE REEL WITH LAMP 306 MODEL AM57/306
CABLE REEL AM SERIES, ZECA

The cable drum is made to be durable: the structural elements are of shockproof material.
The cable runs smoothly in both directions:
- mouth cable accompanies the movement of return,
- the recoil spring high strength allows you to rewind without difficulty,
- the shut-off device of the cable locks the roll to the desired length without requiring the operator to have metres of cable is not used that are getting in the way.

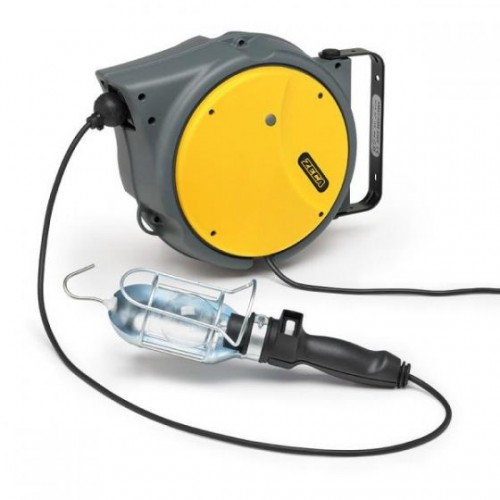

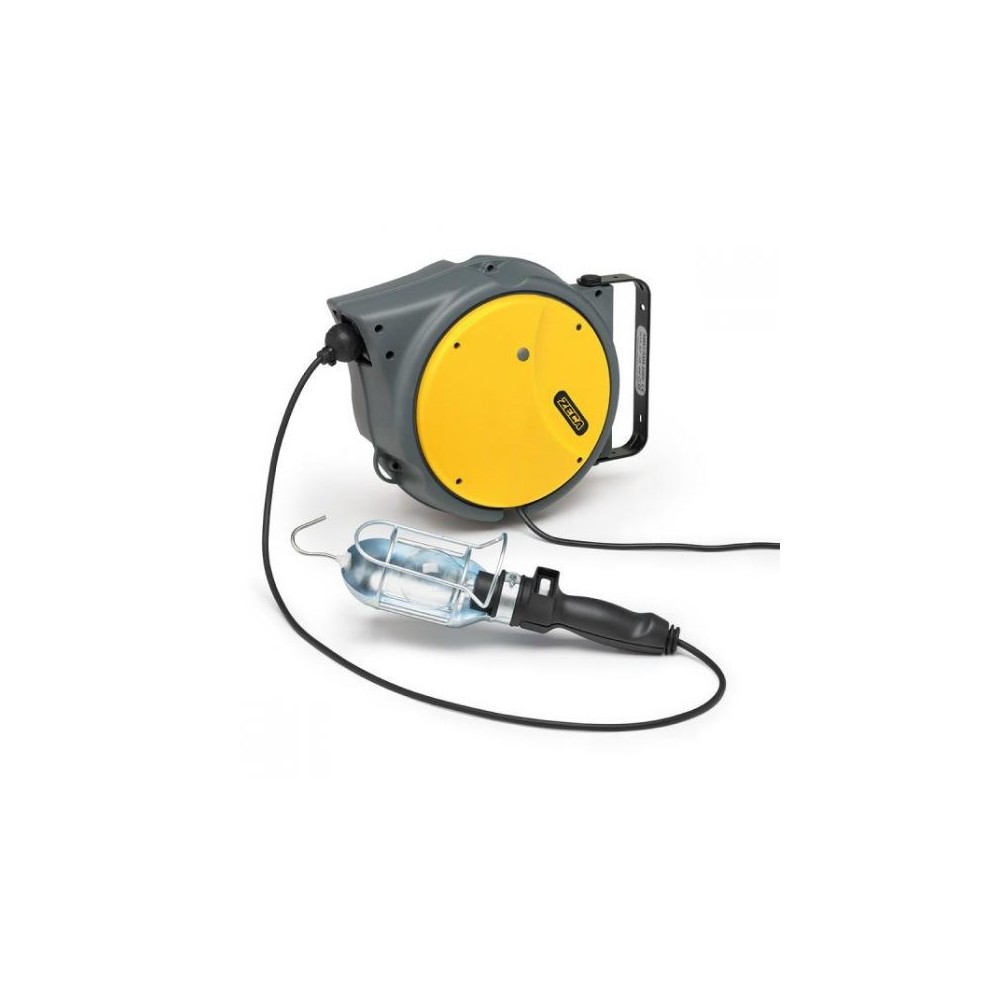

The cable drum is equipped with the most classic and well-known lamp zeca. The legendary 306.
The T306 mount traditional light bulbs, is designed to be used in all places of work, even those more difficult to tackle. The handle is oil-proof, acid-proof and antisolvente. All the quality and warranty zeca is found in this product. The handle is ergonomic to ensure a firm grip and comfortable. Inside the grip is the strain relief yet.
The cage of the steel wire that secures the bulb close to the hinge, the replacement of the bulb requires a moment. The reflector of the light to the interior of the housing of the bulb is sheet of galvanized steel, the material that best optimizes its function.
The lamp is equipped with switch protected inserted in a special compartment.
The lamp is equipped with a convenient swivel hook.

For the preparation of the cable drum, you have the grassy mounting bracket with metal adjustable swivel.

Data Sheet

• Cable length (m) 15,5 (14+1.5)
• Input cable 1 m
• Type of cable H05 RN-F-2X1 mmq
• IN 230-12-24V
• OUT 230-12-24V
• Supply voltage max 250V


• Model lamp 306
• Light bulb provided NO
• Max W light bulb 60W E27


• Degree of protection lamp IP20
• Protection winder IP42
• Ambient temperature of use: -5/+50°C

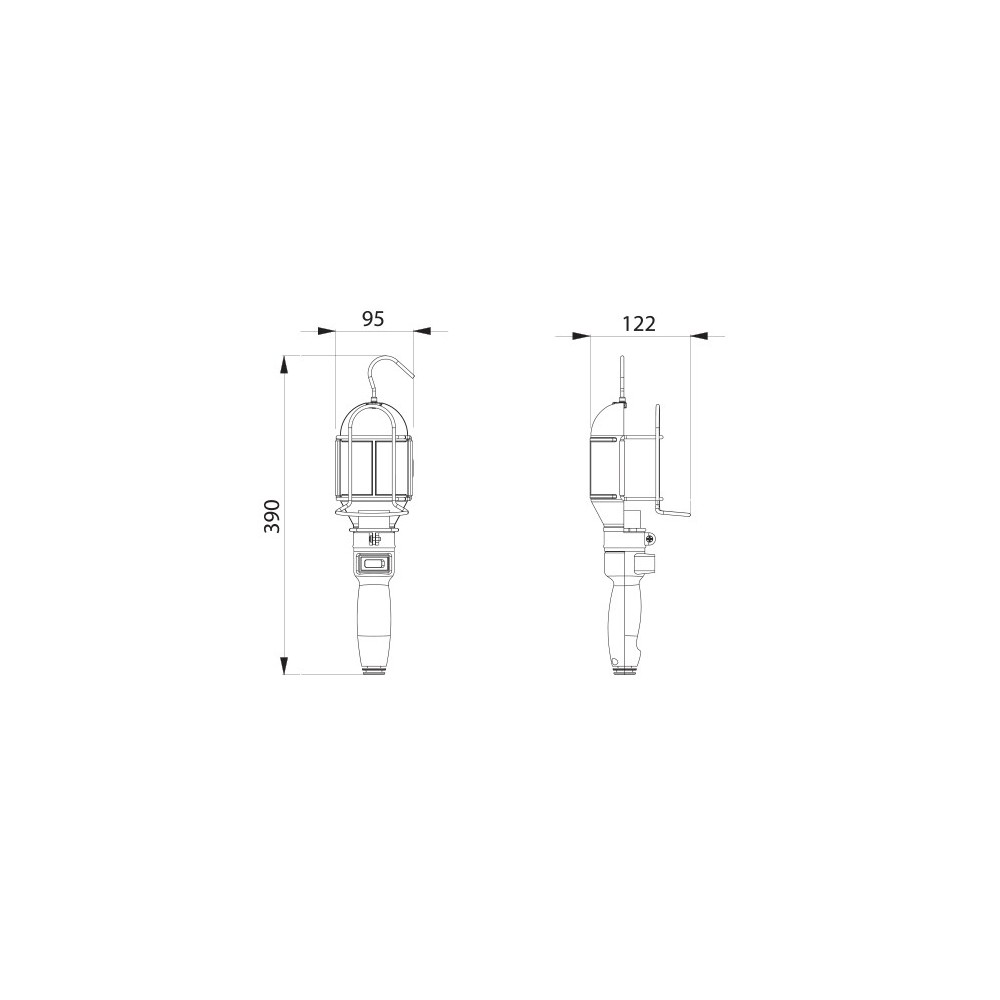

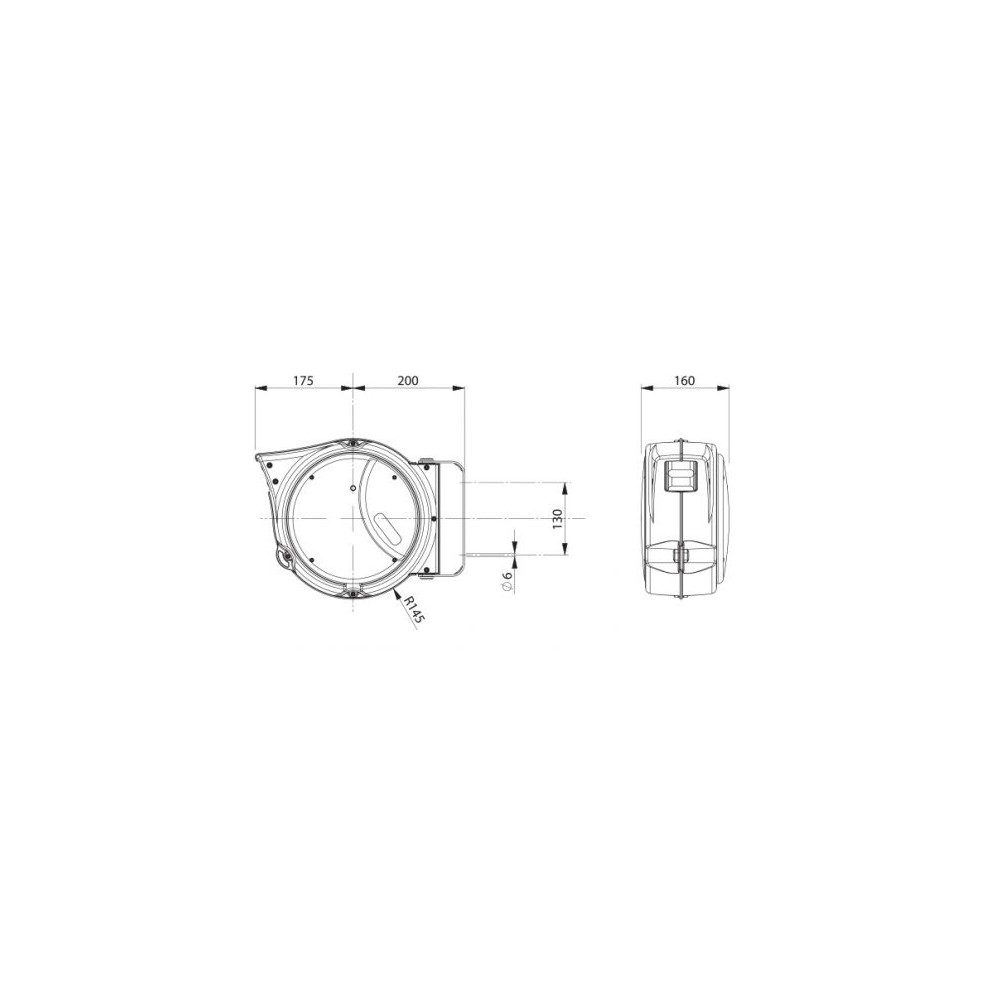

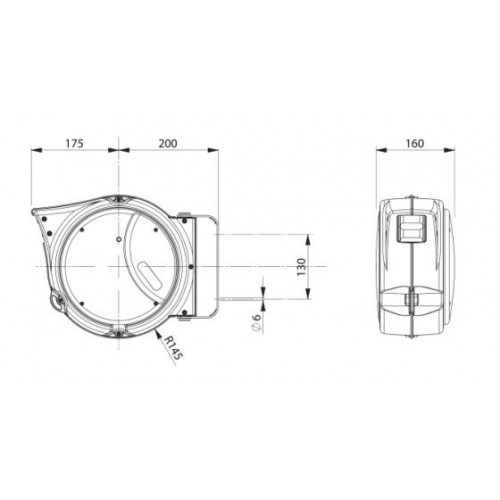

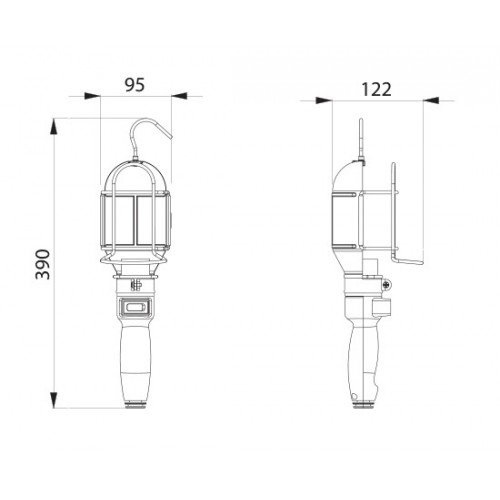

• Size 390x310x200
• Kg 4,5
