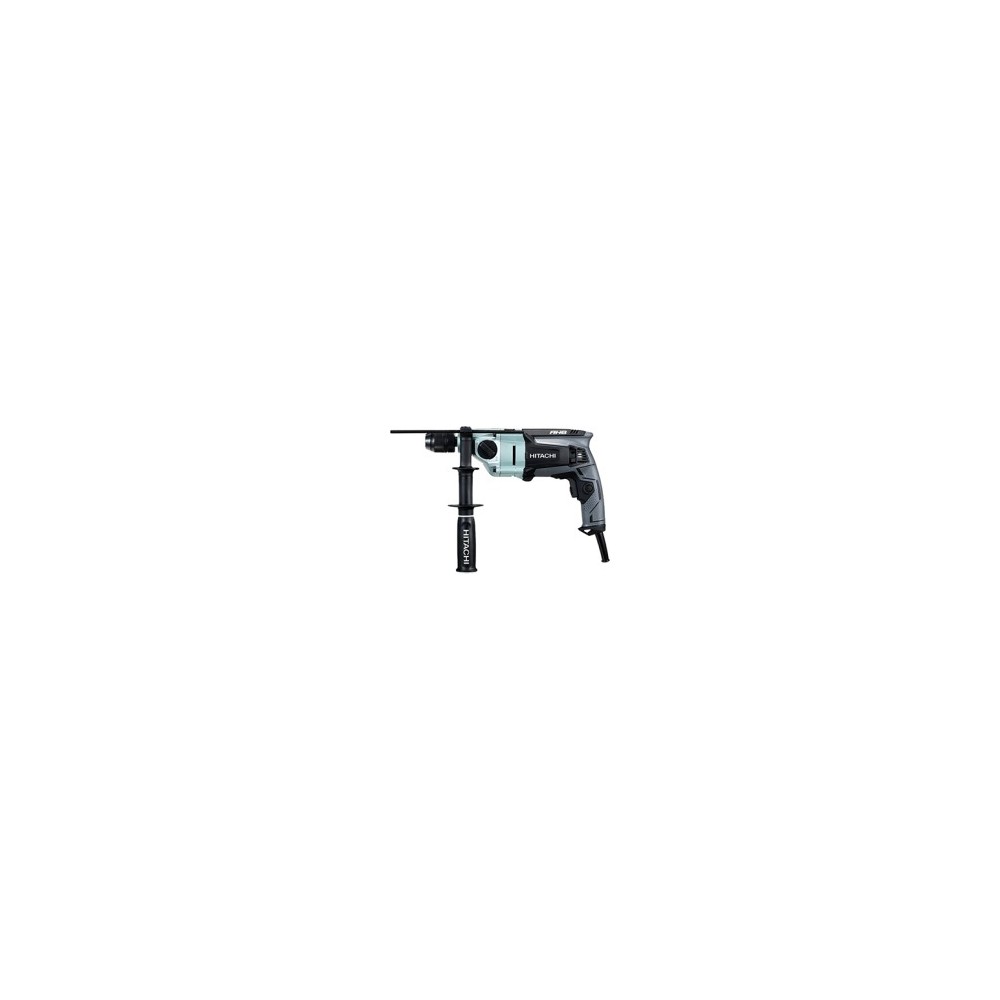

HDV20VD HAMMER DRILL 860 W HIKOKI

Drill with percussion 860 W code DV20VD HIKOKI
Characteristics
860 W reversible hammer drill. Powerful and robust tool. This drill is equipped with a safety clutch and works at two speeds with mechanical change. The number of revolutions are adjusted thanks to the electronic switch. The robust keyless chuck is of excellent quality.
Each component is made with the best materials: the motor body is in AHB duralumin appreciated for its sturdiness. Duralumin is perfect for containing rotating components such as the brush holder which manages the rotation reversion while keeping the speed constant regardless of the direction. The AHB also reduces the spark generated by the contact between the brushes and the commutator. When the twinkle is reduced, efficiency increases, the same principle of the Brushless motor is applied to this motor with higher energy efficiency than traditional lower class ones.
The hikoki drill is used with a combined rotation and percussion action for drilling holes in hard surfaces such as concrete, marble and granite. In this case, the drilling capacity reaches up to 20 mm. Only the rotation function is used for drilling in simpler materials. The drilling capacity is 13 mm in steel while it reaches up to 40 mm in wood and plastic.
Data sheet
Spindle opening 1.5 ~ 13mm
Ø hole in concrete 20 mm
Ø hole in steel 13 mm
Ø hole in wood 40 mm
Spindle connection 1/2 "x 20 UNF
Power consumption 860 W
No-load speed 0 ~ 1,100 - 3,000 rpm
No-load percussion 0 ~ 1 4,300 - 39,000 strokes / min
Length 363 mm
Width 85 mm
Height 215 mm
Weight (EPTA) 3 kg
Carbon brushes 999088 standard
Carbon brushes 999076 self-locking
