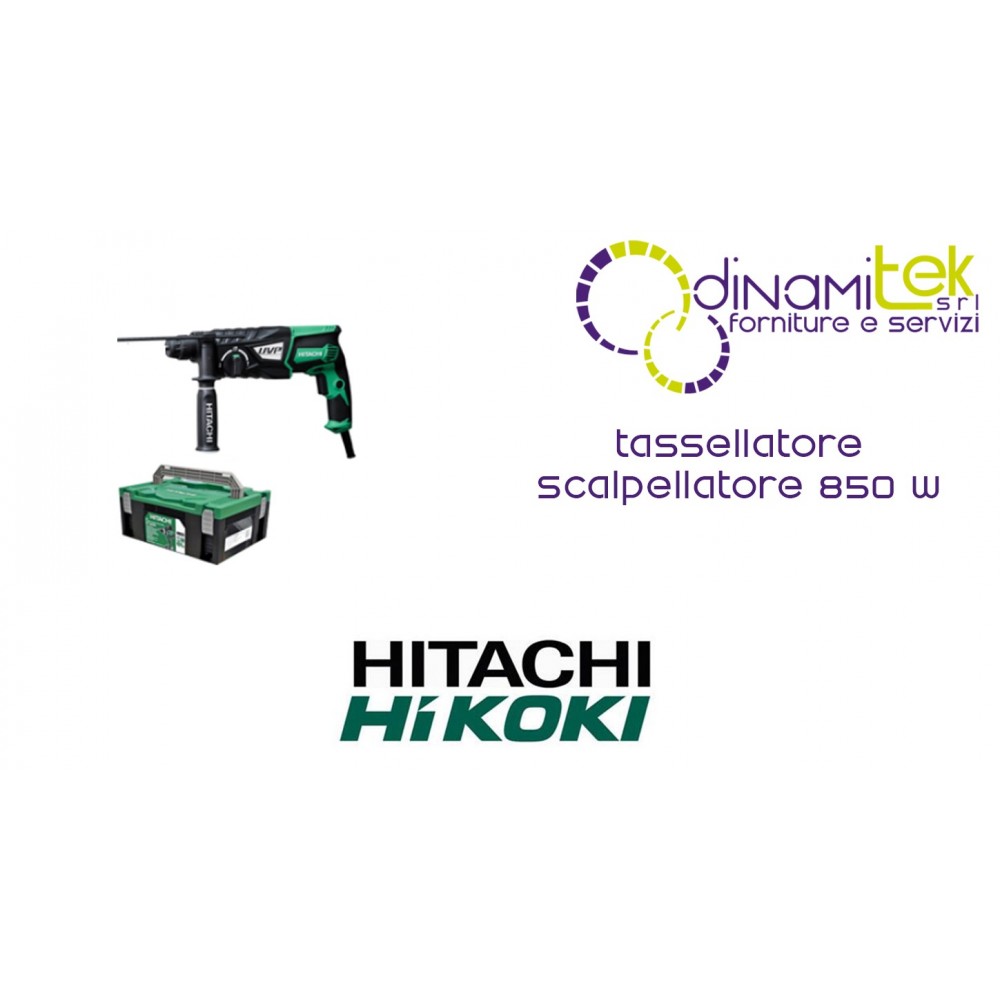

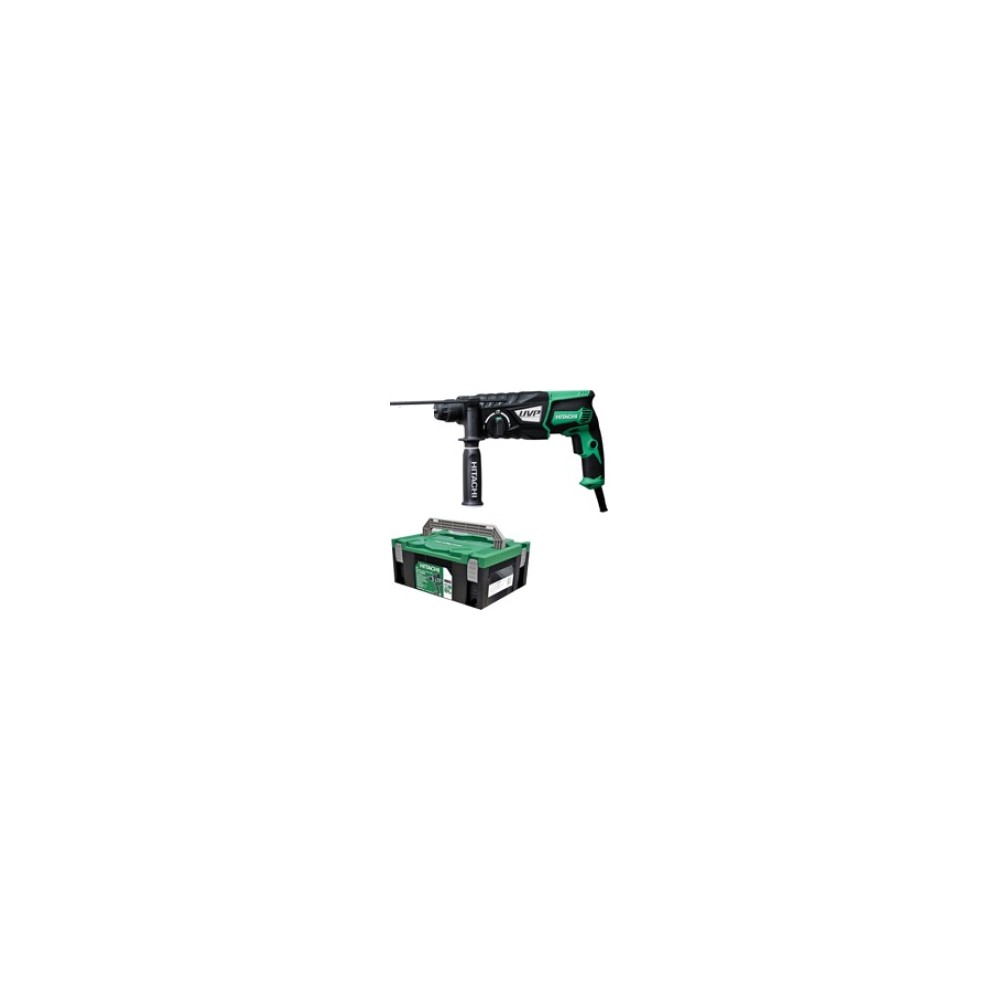

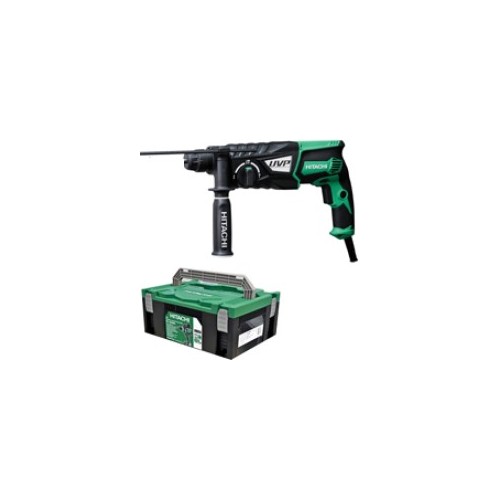

DH28PCY CHIPPER 850 W HIKOKI

850 W rotary hammer
High-performance 3-mode model:
rotation with percussion, rotation only or percussion only adjustable with Vario-Lock device. The Vario-Lock is the device for selecting the optimal position of the chisel. The three working modes are selected with a manual selector. The combined action of rotation and percussion allows the hammer to be used to open anchor holes and to drill into brick and reinforced concrete. With only percussion, grooves and scrapes are made
This model has the SDS-PLUS connection, is equipped with a safety clutch and an electronic switch for speed regulation.
In favor of the user, the hammer hammer is equipped with anti-vibration UVP technology and a protection system that prevents empty shots.
Thanks to Hitachi pneumatic technology, the impact energy is optimized. The system that controls and manages the internal pressure of the pneumatic chamber is also innovative, which makes drilling more effective.
In the area of the second shaft, the bushing has been replaced by a bearing in order to increase the resistance to high working temperatures.
Data sheet
SDS-plus connection
Ø hole in concrete 28 mm
Ø hole in steel 13 mm
Ø hole in wood 32 mm
Ø hole with crown tip 50 mm
Power consumption 850 W
Energy per single hit 3 J (EPTA)
No-load speed 0 ~ 1,100rpm
Percussion at full load 0 ~ 4,300 strokes / min
Length 367 mm
Width 75 mm
Height 198 mm
Weight 2.9 kg
Vibration max drilling (EN 60745) 11.5 m / s2 (triaxial)
Vibration max demolition (EN 60745) 10.5 m / s2 (triaxial)
Carbon brushes 999041 standard
Carbon brushes 999072 self-locking
