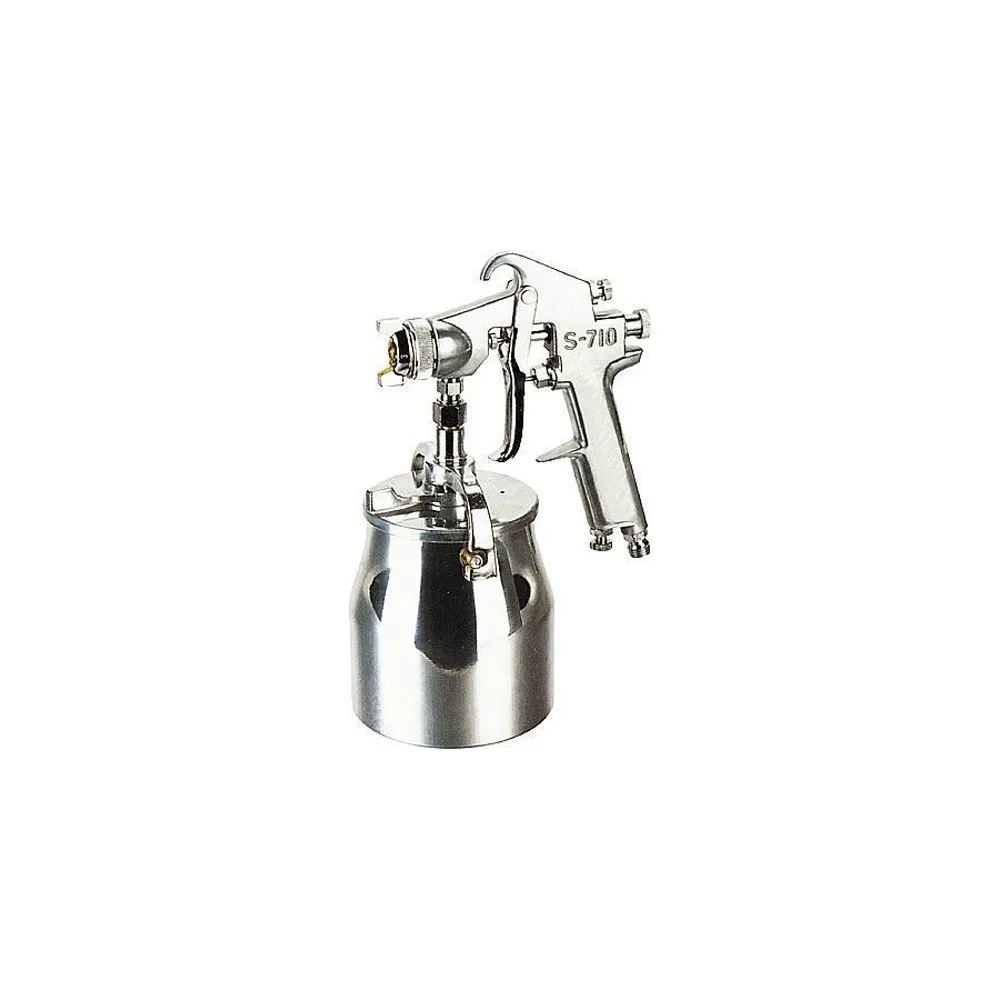

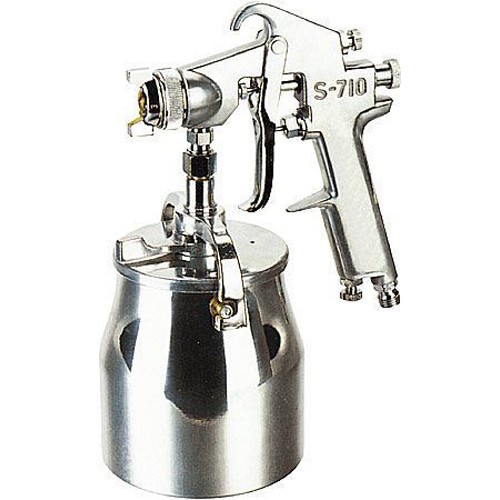

S710 CONVENTIONAL MANUAL LOW PRESSURE AIRBRUSH ASTURO

Precision and Versatility for Every Surface

The asturous Model S710 conventional hand-held airbrush is designed to deliver consistent, high-performance low-pressure painting. Its solid construction, with an aluminum body and critical components such as the stainless steel needle and nozzle , ensures long operating life and extremely high corrosion resistance, in line with LTF reliability standards.

Applications and Areas of Use

The technical flexibility of this model makes it suitable for a wide range of production sectors:

• Carpentry and Industry: Professional painting of ferrous materials in general.
• Wood Sector: Ideal for finishing furniture, components and wooden structures.
• Plastics Processing: Effective for covering various types of plastic substrates.

Usable Materials and Compatibility

The S710 is compatible with a wide variety of paint products, ensuring optimal atomization for every type of finish:

• Clear varnishes, liquid paints and standard varnishes.
• Double-layer metallics and pastel shades.
• Heavy enamels, single-component and two-component.

Technical Advantages and Control

The instrument integrates features designed to maximize accuracy and reduce operator fatigue:

• Lightweight: The body weighs only 455 grams , making it easy to handle.
• Autoclave System: The 700cc aluminum tank with autoclave closure ensures a secure seal and constant pressure.
• Fine Adjustment: Equipped with micrometric air pressure adjustment to perfectly calibrate the spray pattern.
• Balanced Air Consumption: Operates effectively between 99 and 240 lt/min.

Main Technical Data

• Operating pressure: 3.5 ÷ 5 bar (Maximum pressure: 5 bar).
• Tank capacity: 700 cc.
• Air inlet: 1/4” M.

Available Variants (Nozzle Diameter)

The airbrush can be configured with different nozzle sizes to suit the viscosity of the material used:

• Ø 1.0 mm | Ø 1.3 mm | Ø 1.5 mm | Ø 1.8 mm
