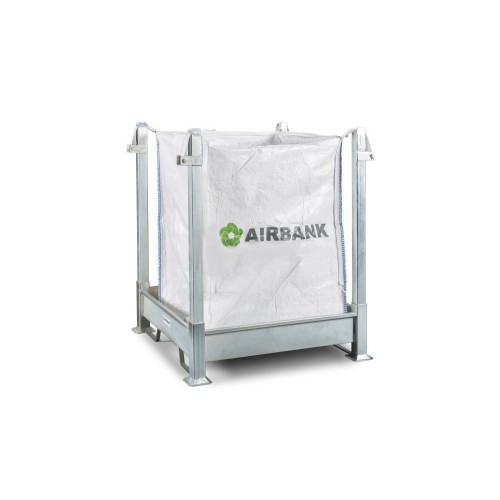

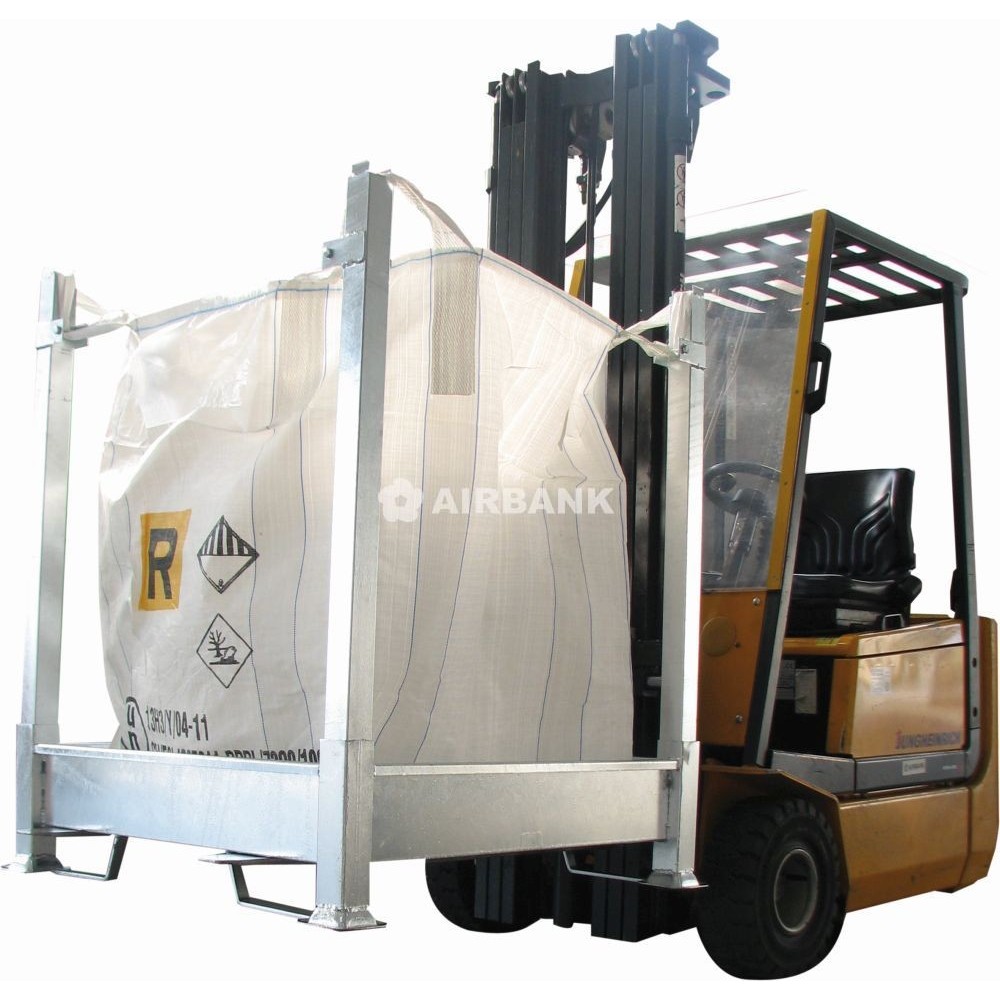

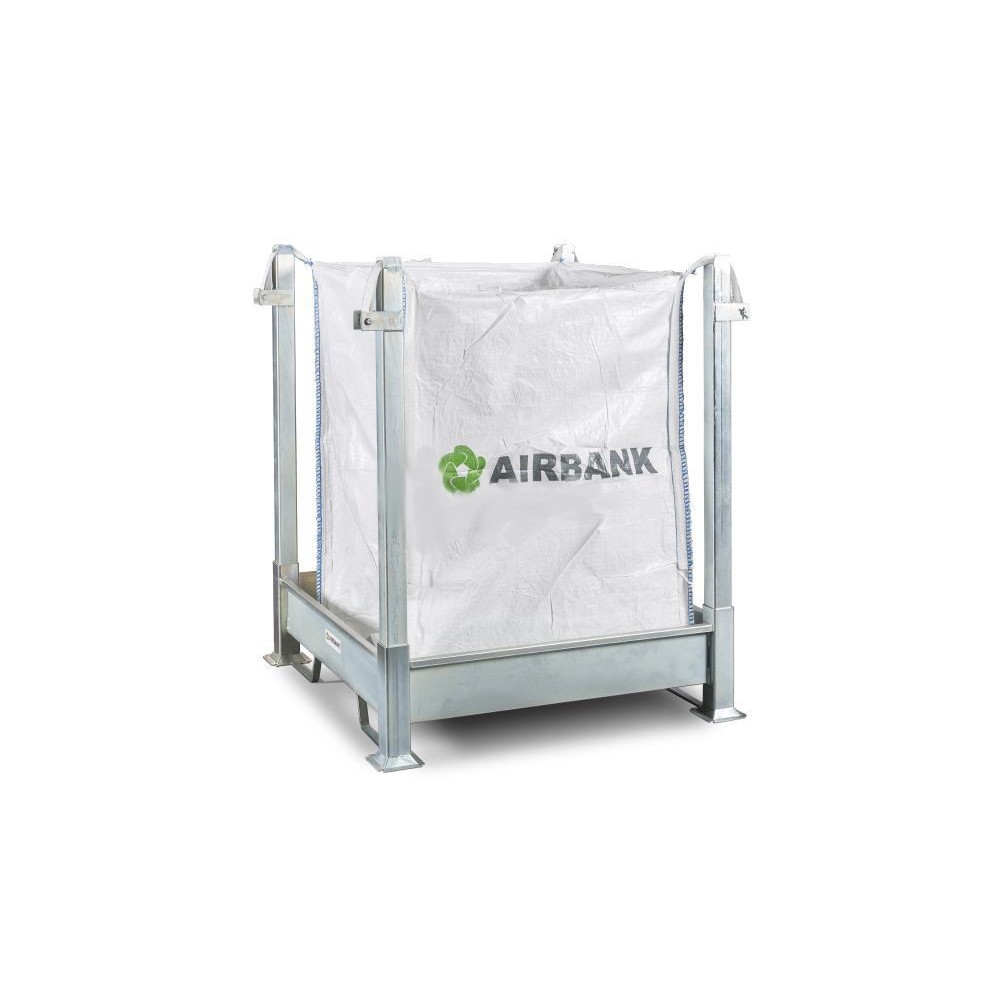

X413001203 BIG BAG REMOVABLE STRUCTURE FOR AIRBANK BAG
Sturdy removable structure for BIG BAG in galvanized carbon steel
for the safe support of the sale of BIG BAG collection bags
Sturdy removable structure for BIG BAG in galvanized carbon steel. Equipped on each column with a safety lock for the
handles of the BIG BAG sales bags so the four straps are fixed and the insertion of the material does not involve any problem.

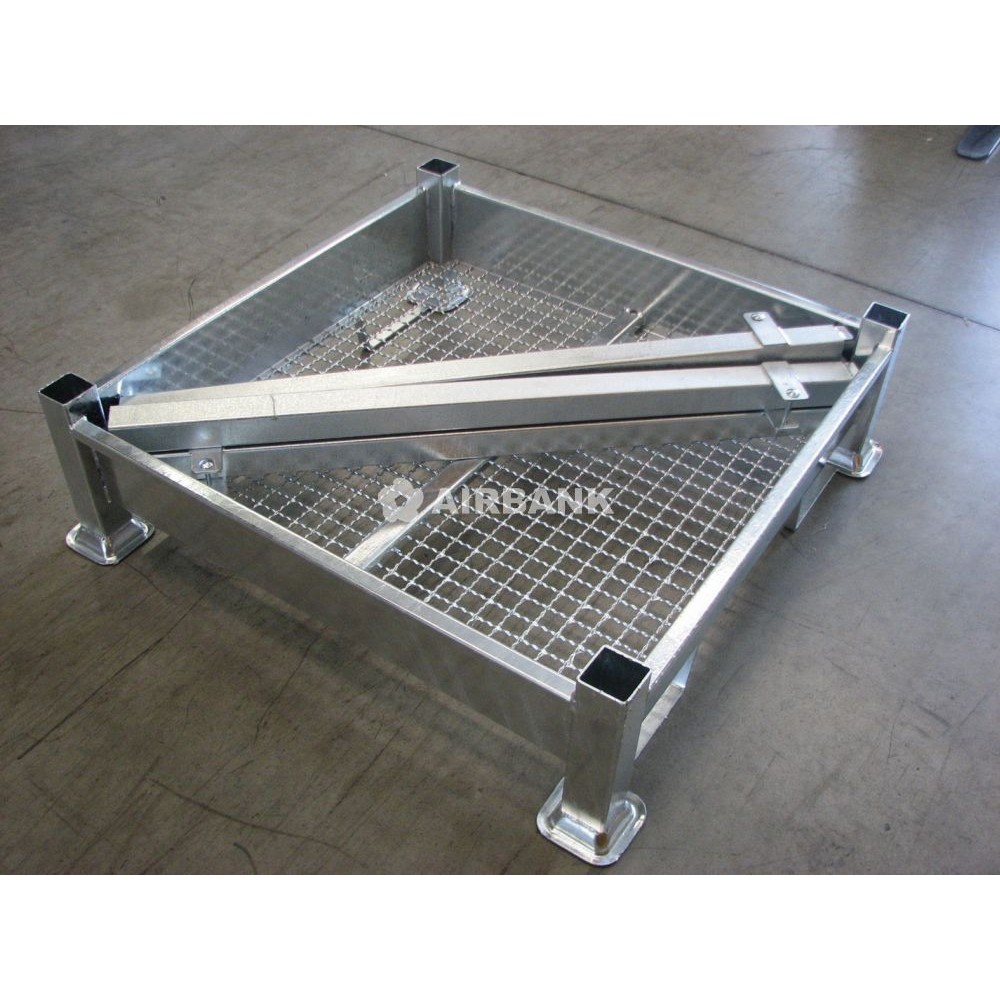

Assembly is very simple, starting from the tank at the base and positioning the 4 4 columns of the structure inside the 4 holes at the corners of the base. The safety blocks must be oriented outwards and in a specular way at 2 to 2. At this point the BIG BAG is positioned inside the structure and locked by the handles using the appropriate blocks of the posts.
It is advisable to periodically check the tightness of the safety blocks and replace the locking screws when worn. The columns should also be used only if they are not damaged in any way, otherwise it is best to replace them. The BIG BAG holder is made only for the permitted uses
DATA SHEET
Capacity 1000 Kg
Dimensions
Length 1070 mm
Width 1070 mm
Height 1350 mm
413001203
