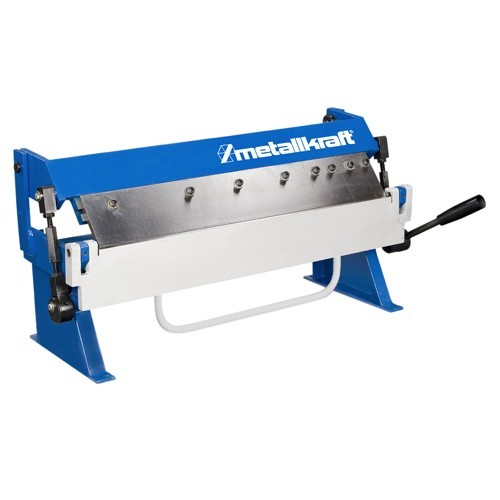

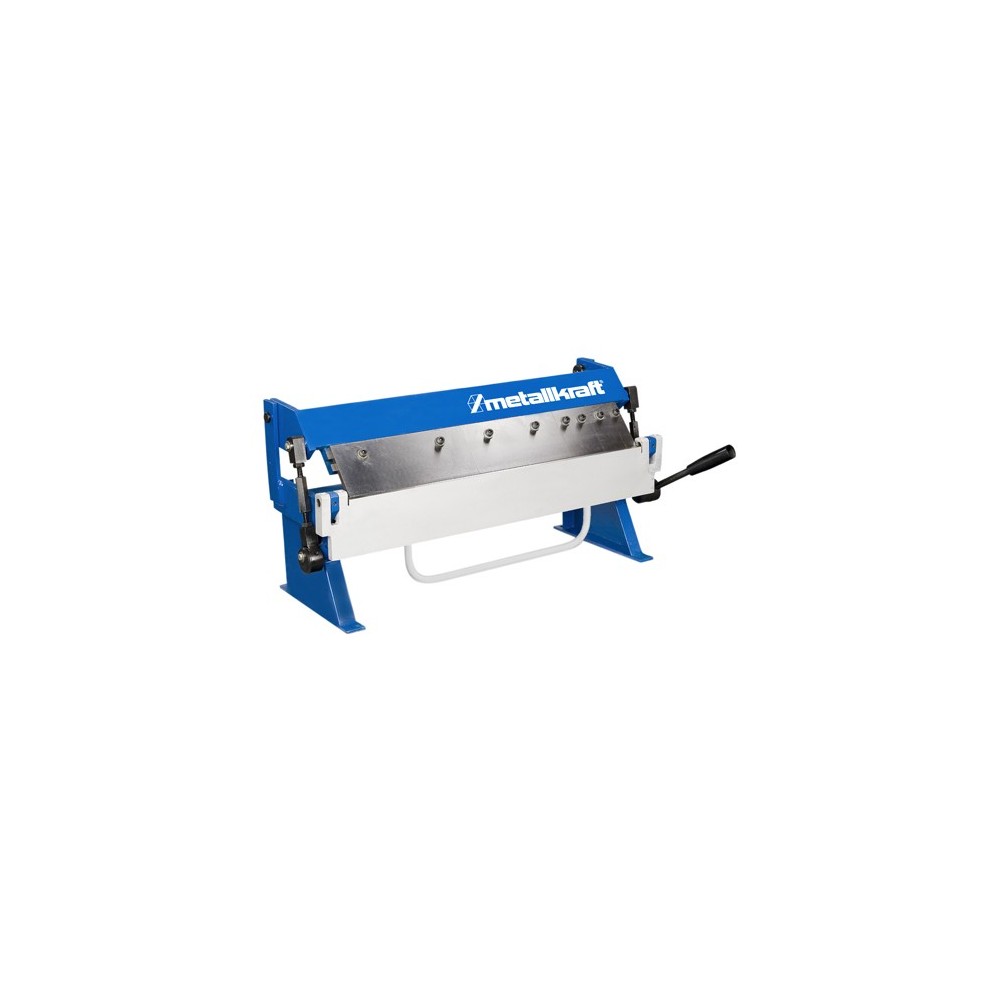

HBSM 610 HS APRON BENDING MACHINE MAX WIDTH 610 MM METALLKRAFT

The metallkraft HSBM 610 HS manual apron bending machine is the ideal professional tool for producing profiles and box sections up to 610 mm wide. Featuring a segmented upper bar and a quick eccentric positioning system, this machine combines stability and versatility, making it easy to transport and perfect for use in the workshop or on the construction site.

Shipping cost: Free for
422,59 €
Tax included

422,59 € Tax excluded

Quantity
Available product, order it now.

Versatility and Precision in Sheet Metal Bending

The metallkraft HSBM 610 HS model (Code MET3772610) represents an excellent solution for craftsmen requiring a robust and flexible manual bending machine. Its linear construction ensures maximum stability during operation, ensuring precise and consistent bends on sheet metal up to 1 mm thick.

Segmented Upper Bar for Complex Machining

The distinguishing feature of this bending machine is the 5-segment upper bar , which allows the tool to be adapted to different working widths, making it ideal for creating U-profiles or complex box shapes. The included segments have the following sizes: 25, 50, 75, 205, and 255 mm.

Technical and Construction Features

  • Safe Clamping System: Equipped with a locking device that ensures the stability of the sheet metal during the bending operation.
  • Quick Adjustment: The upper bar is positioned quickly and easily using an eccentric system.
  • Optimal maneuverability: Bending is performed easily via a practical bow handle.
  • Portable Design: Weighing 42kg and compact in size, the machine can be easily moved to different job sites.

Technical Reference Data

Characteristic Detail
Maximum working width 610 mm
Maximum sheet metal thickness* 1.0 mm
Maximum bending angle 135°
Maximum passage 25 mm
Dimensions 850 x 360 x 420 mm
Net weight 42 kg

*Note: Cutting performance refers to materials with a mechanical strength of 400 N/mm².

Choosing metallkraft, a brand distributed by LTF , means investing in a reliable tool, designed to last over time and improve the efficiency of your production cycles.
For those who work sheet metal and metals in general: professional machines and accessories made in Germany. Metallkraft is an industry leader in Italy with LTF
