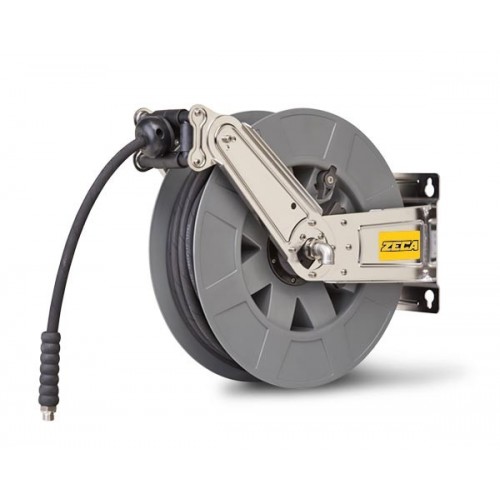

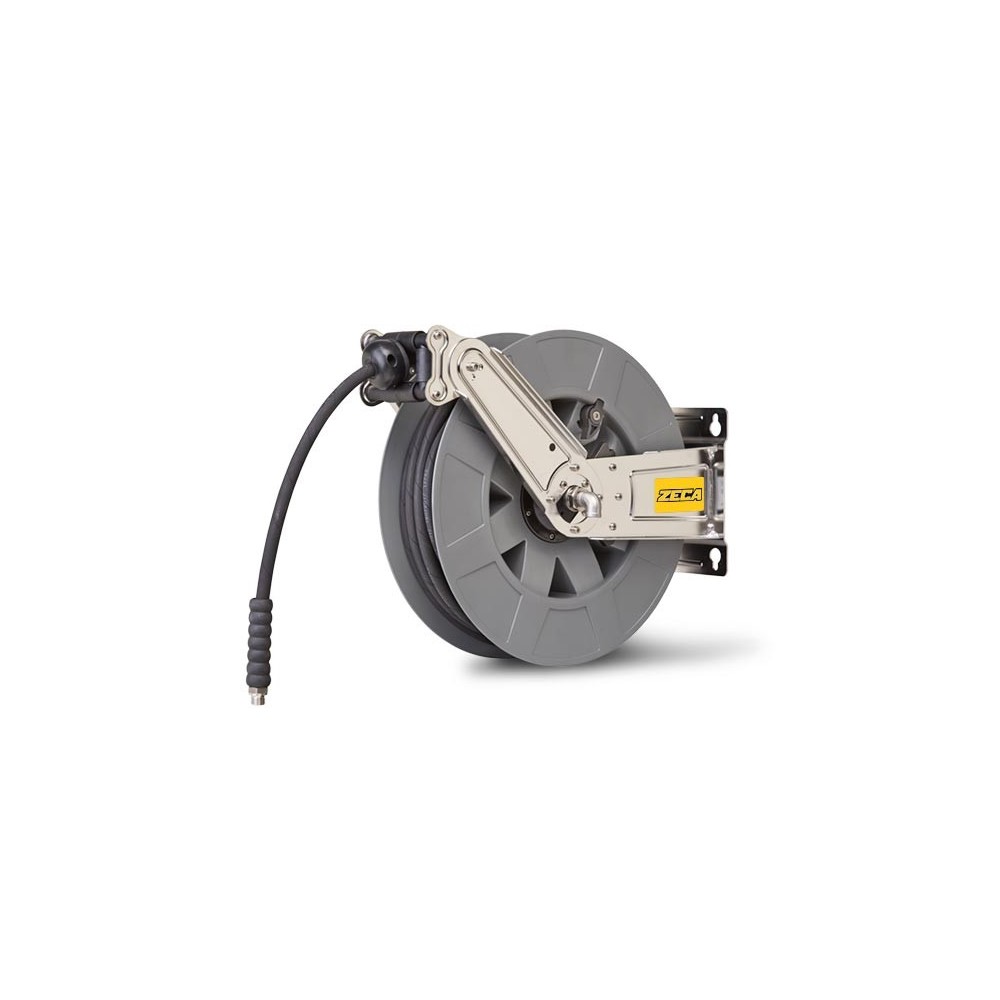

8482/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM
X
8482/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1

8482/1111 HOSE REEL FULL STEEL SERIES 8400 FOR AT BLUE 15 BAR ZECA HOSE M 8 - DIAM INT PIPE 19 MM

HOSE reel WITH BLUE 15 Bar SERIES 8400 FULL STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

Rotary coupling and hose inlet of STAINLESS steel.

Connection output STAINLESS steel.

STAINLESS steel bolts and screws.

Shipping cost: Gratis for
561,93 €
Tax included

561,93 € Tax excluded

Quantity

8482/1111 HOSE reel FULL STEEL SERIES 8400 FOR AT BLUE 15 BAR ZECA HOSE m 8 - DIAM INT PIPE 19 mm
Special hose for transport of AdBlue can be used in all work contexts the most challenging because suitable to the working environments more and more aggressive and with corrosive atmospheres.
To facilitate the operator, the hose reel 8482 is equipped with the mouth of the rollers can be positioned, the pad bracket and adjustable automatic stop system: the unwinding and rewinding of the hose is always easy and fast.
The hose reel has the spool of ABS and it is made with high quality materials
Tree coil in STAINLESS steel AISI 304
seal in FPM (Viton)
Bushing AISI 304 STAINLESS
Shaft coupling the rotating STAINLESS steel AISI 304
ring in STAINLESS steel AISI 304
Brackets in STAINLESS steel AISI 304
Rotary coupling and hose inlet of STAINLESS steel
Screws in STAINLESS steel AISI 316L
Coupling output and coupling input in STAINLESS steel AISI 316L
Tree, coil, bushings, locknuts and shaft coupling the rotating STAINLESS steel AISI 304
The hose reel Full of STAINLESS steel and are suitable in different application fields, from food industry to the boating industry and the chemical sector, work environments, aggressive and corrosive atmospheres. Ideal for industrial cleaning operations, blowing and transport of fluids such as oil and AdBlue.
Data sheet
Fluid
type Blue 15 bar
temperature -10°C / +60°C
Tube
type of pipe PVC - PU
tube diameter 19 mm 3/4”
hose length 8 m
Fittings
inlet 3/4”M
outlet 3/4”F swivel

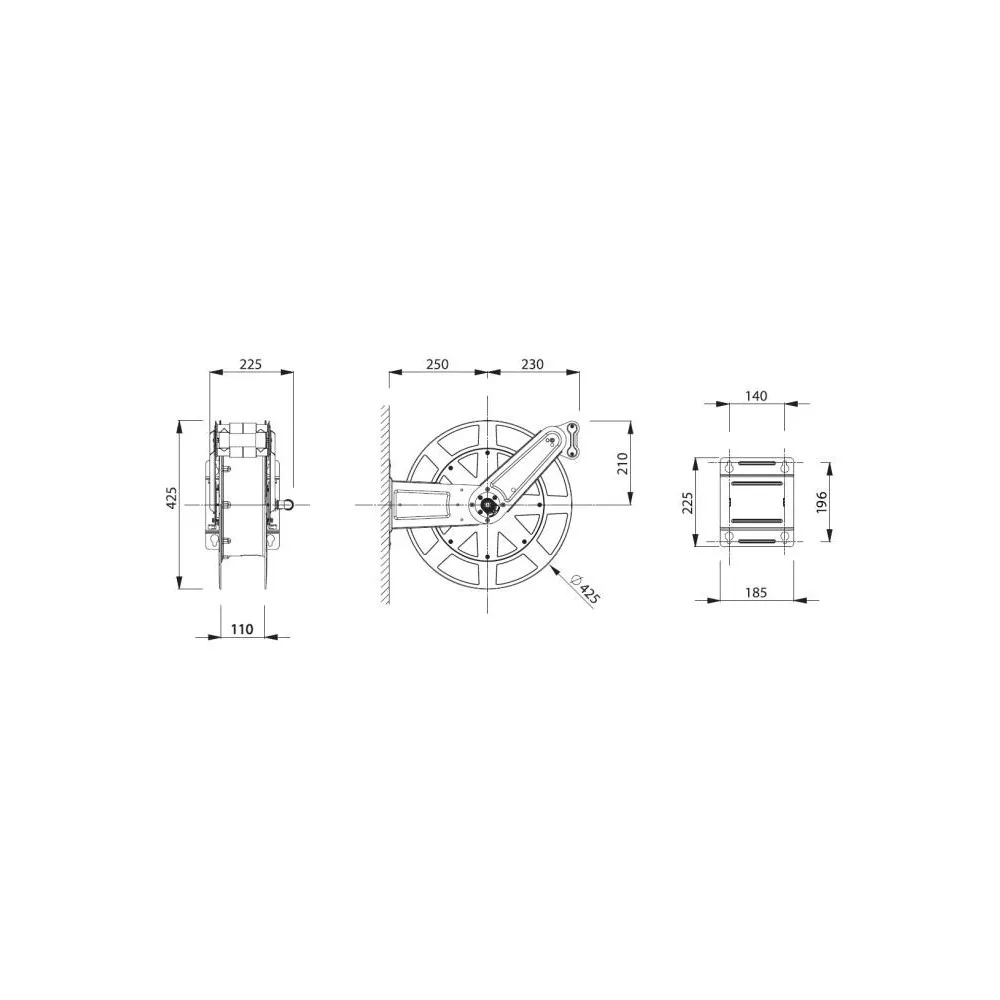

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC

Zeca
Azienda italiana leader del settore delle automotive, offre ottime soluzioni per l'industria


8482/1111

SERIE 8400 INOX ZECA

Download (2.64M)

SERIE 8400 ZECA

Download (893.7k)
