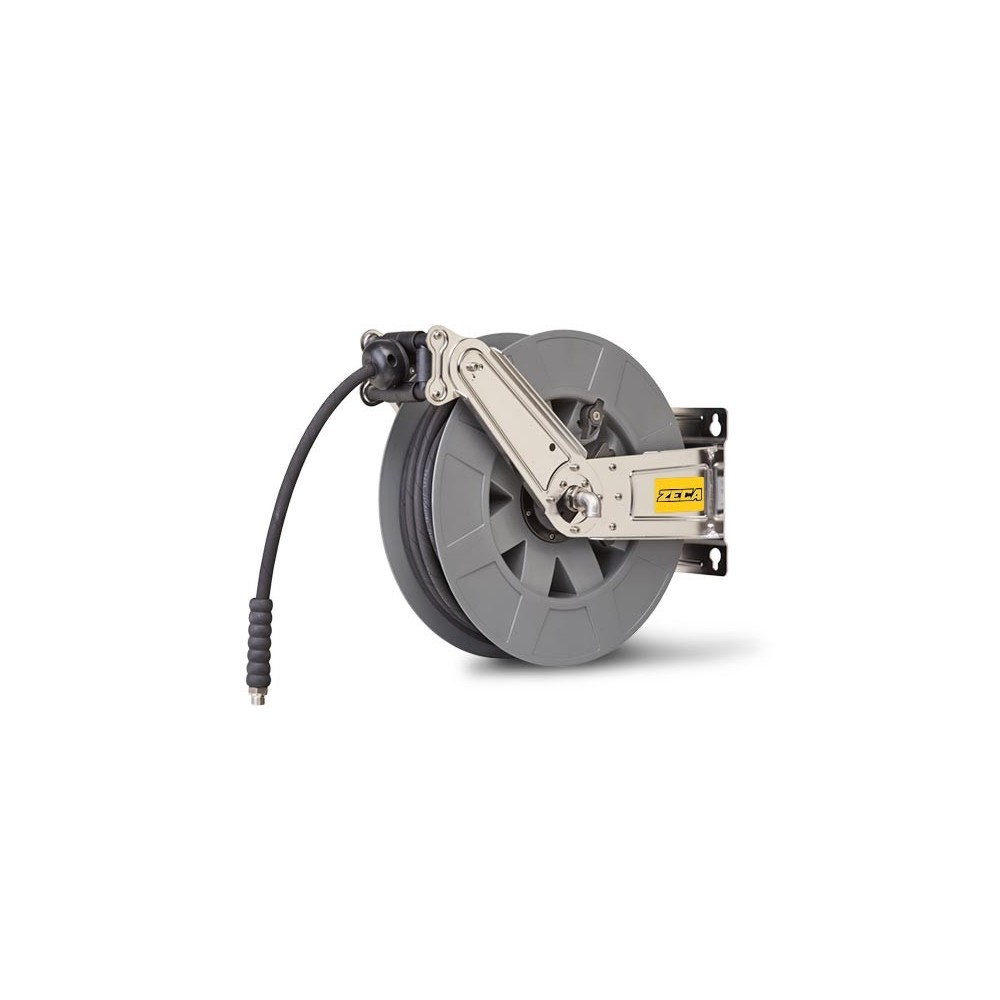

8446/1000 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR OIL AND WATER 180 BAR ZECA BLUE TUBE M 15 - DIAM INT PIPE 10 MM

HOSE reel OIL-WATER 180 Bar-SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Free for
361,34 €
Tax included

361,34 € Tax excluded

Quantity
Available product, order it now.

8446/1000 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR OIL AND WATER 180 BAR ZECA BLUE TUBE m 15 - DIAM INT PIPE 10 mm
Hose reel series LIGHT STAINLESS steel more durable and better performing of the classic series 8400.
Now you can use the hose reel in industrial applications massive because it resists well to work environments with aggressive and corrosive atmospheres. This model was created for the transport of oil and water at high pressure.
The hose reel 8446 has the coil of durable ABS, the mouth of the rollers can be positioned in different configurations, the automatic stop system of the tube and the buffer wraps adjustable, which means that the operations of unwinding and rewinding of the hose are reduced in any condition.
Detail of the fitting in the entrance
shaft steel coil
seal in FPM(viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass
Other materials
Brackets in STAINLESS steel AISI 304
Screws in STAINLESS steel AISI 316L
Connector stainless steel/brass
The fitting on the inlet side in brass
Shaft rotary joint in brass/STAINLESS steel AISI 304
Tree steel coil, bushings, and ferrules in brass
Data sheet
Fluid
type oil – water 200 bar
temperature -15°C / +130°C
Tube
type of hose EN857 1 SC Blue-Non-Marking
tube diameter 10 mm 3/8”
hose length 15 m
Fittings
inlet 3/8”F
outlet 3/8”M swivel

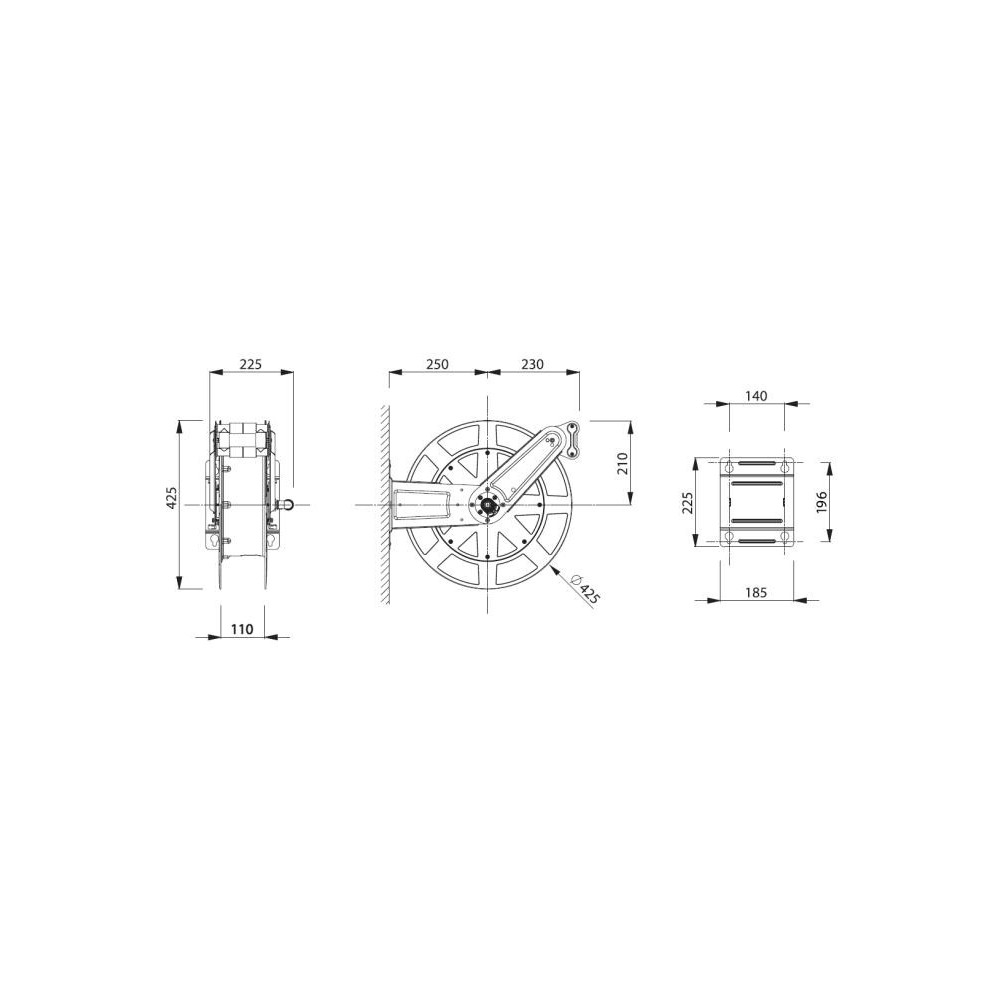

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8446/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
