8443/1000 8400 SERIES STAINLESS STEEL LIGHT HOSE REEL FOR OIL AND WATER 180 BAR BLACK HOSE 18 M - INNER TUBE DIAMETER 10 MM ZECA

OIL-WATER HOSE REEL 180 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
416,2 €
Tax included

341,15 € Tax excluded

Quantity
Available product, order it now.

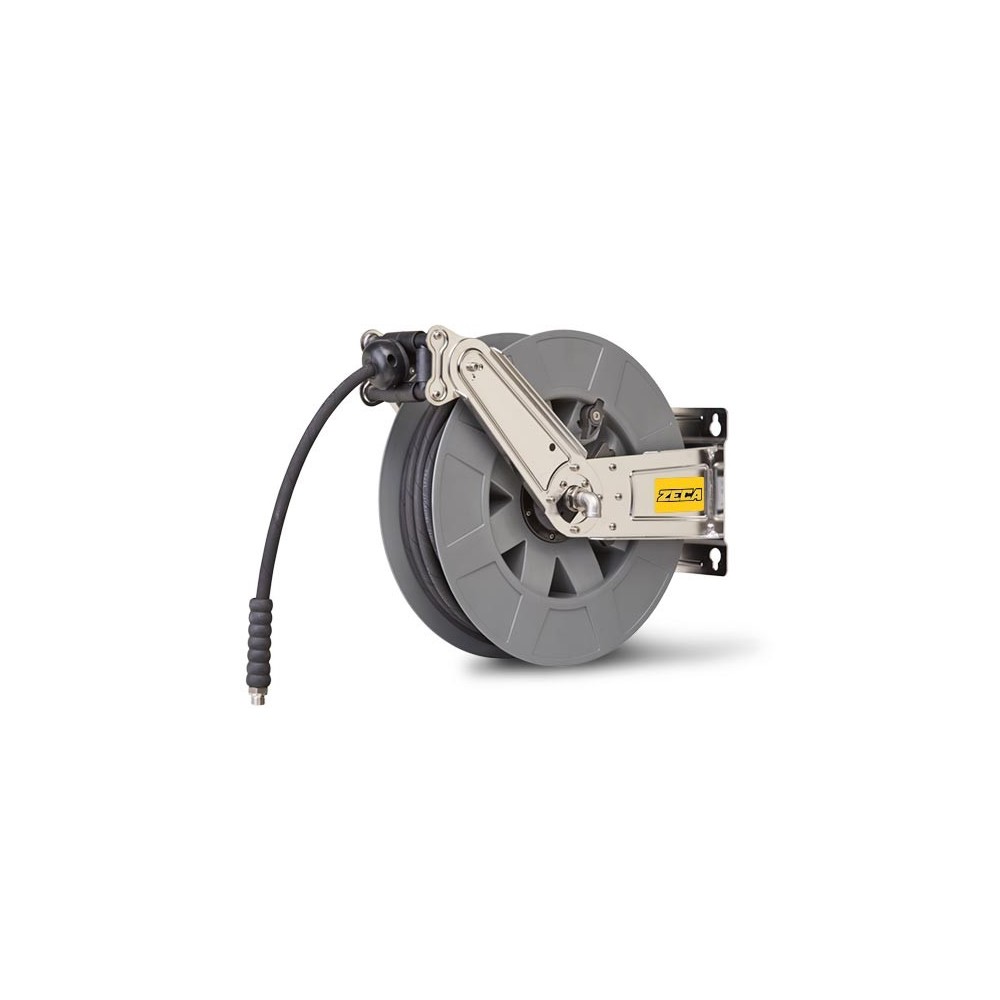

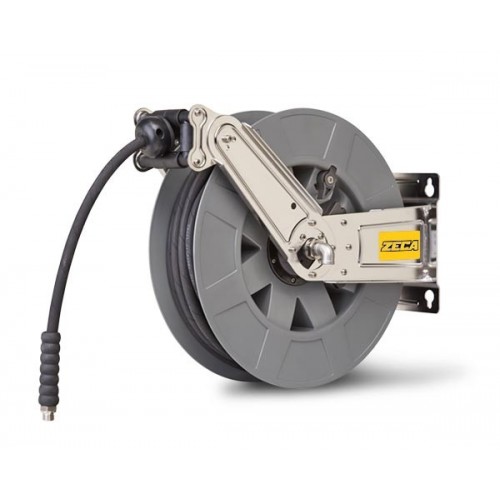

8443/1000 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR OIL AND WATER 180 BAR Zeca BLACK HOSE 18 m - INT. HOSE DIAM. 10 mm
The 8400 hose reels have changed, now there is the new LIGHT INOX series improved in resistance and performance thanks to the new production materials used and technical improvements made to the hose reel.
First of all, the reel is made of ABS so the hose reel is resistant and can be used in aggressive and corrosive work environments.
The 8443 high pressure oil and water hose reel can be used in the marine and chemical industries.
The hose reel features an adjustable hose stopper and a roller nozzle that can be positioned in different configurations to facilitate hose passage both during unwinding and rewinding. To make it easier and more comfortable for the user, the hose reel is also equipped with an automatic hose stop system, so there's no need to unwind it completely and work with excess hose underfoot.
A lot of steel has been used in the FULL INOX series:
AISI 304 stainless steel brackets
AISI 316L stainless steel screws

Detail of the inlet connection
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
Steel/brass outlet fitting
Technical data sheet
Fluid
oil type – water 180 bar
temperature -15°C / +130°C
Tube
pipe type EN857 1 SC Black
tube diameter 10 mm 3/8”
tube length 18 m
Connections
3/8”F inlet
3/8”M swivel outlet

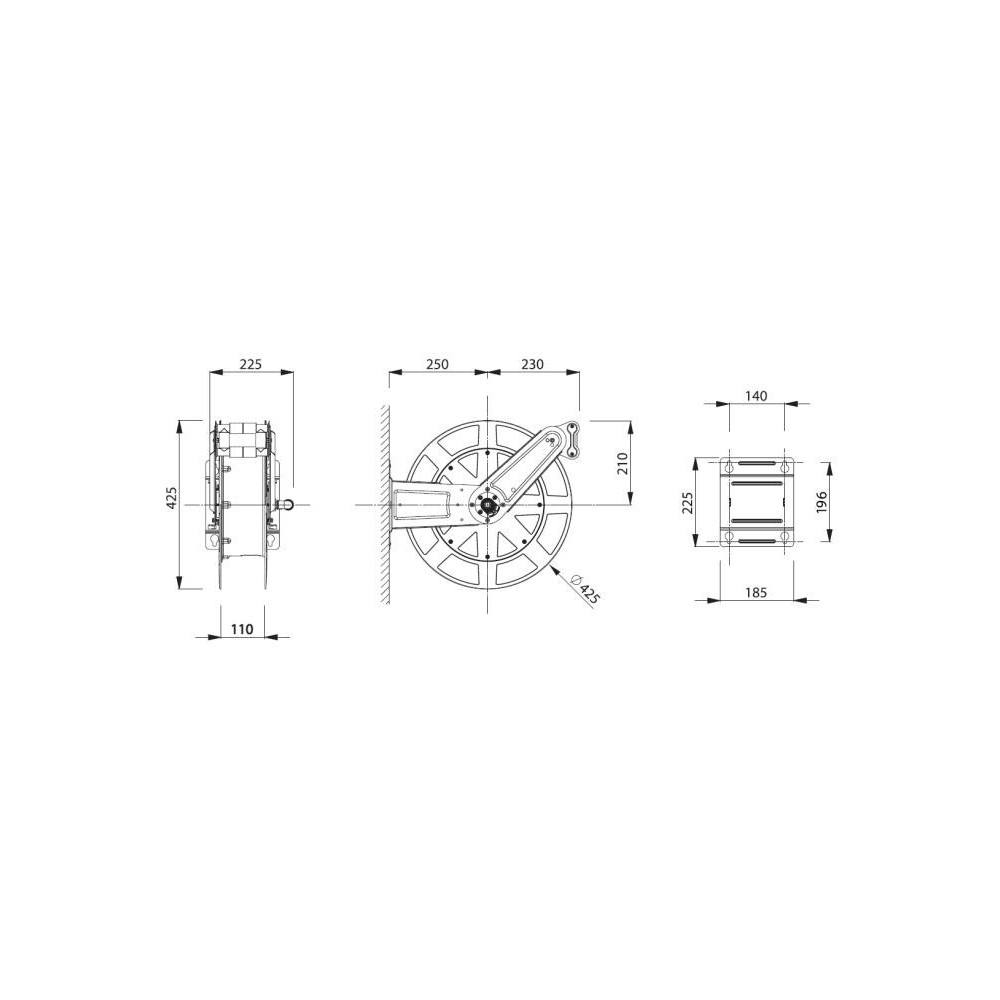

Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8443/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
