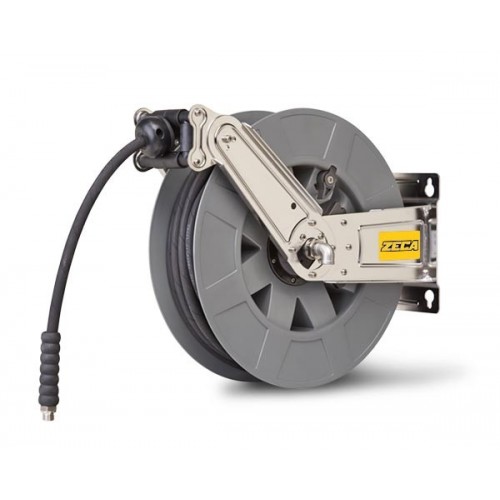

8442/1111 8400 SERIES FULL STAINLESS STEEL HOSE REEL FOR OIL AND WATER 180 BAR BLACK HOSE 15 M - INNER TUBE DIAMETER 10 MM ZECA

OIL - WATER HOSE REEL 180 Bar SERIES 8400 FULL STAINLESS STEEL NEW.

AISI 304 stainless steel bracket.

Rotating joint and inlet fitting in stainless steel.

Stainless steel outlet connection.

Stainless steel screws.

Shipping cost: Free for
430,44 €
Tax included

352,82 € Tax excluded

Quantity
Available product, order it now.

8442/1111 FULL STAINLESS STEEL HOSE REEL 8400 SERIES FOR OIL AND WATER 180 BAR Zeca BLACK HOSE 15 m - INT. HOSE DIAM. 10 mm
Hose reel with ABS coil for high pressure oil and water from the new 8400 FULL INOX series.
The classic 8400 series has been improved for use in industrial sectors where the environment is aggressive and the atmosphere is corrosive.
Technical improvements have made it easier to use: the roller mouth, which can be positioned in different configurations, allows the hose to rewind and unwind smoothly, while the automatic hose stop system stops the hose from unwinding at the desired length. The hose stopper is also adjustable.
Full INOX hose reels are suitable for a variety of applications, from the food, marine, and chemical industries, to aggressive work environments and corrosive atmospheres. Ideal for industrial cleaning, blowing operations, and transporting fluids such as oil and AdBlue.
Technical data sheet
Fluid
oil type – water 200 bar
temperature -15°C / +130°C
Tube
pipe type EN857 1 SC Black
tube diameter 10 mm 3/8”
tube length 15 m
Connections
3/8”F inlet
3/8”M swivel outlet
Entrance connection detail
AISI 304 stainless steel coil shaft
FPM (Viton) gasket
AISI 304 stainless steel bushing
Rotating joint shaft in AISI 304 stainless steel
AISI 304 stainless steel ring
AISI 304 stainless steel brackets
AISI 316L stainless steel screws
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8442/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
