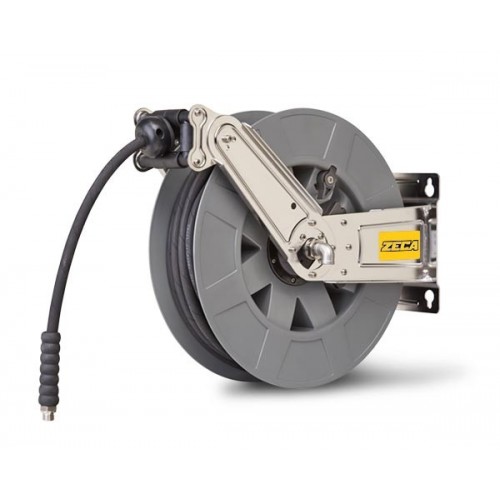

8442/1000 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR OIL AND WATER 180 BAR ZECA BLACK TUBE M 15 - DIAM INT PIPE 10 MM

HOSE reel OIL-WATER 180 Bar-SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Gratis for
369,65 €
Tax included

302,99 € Tax excluded

Quantity
Available product, order it now.

8442/1000 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR OIL AND WATER 180 BAR ZECA BLACK TUBE m 15 - DIAM INT PIPE 10 mm
The hose reel 8400 LIGHT STAINLESS steel are suitable in different application fields, the model 8442 is designed for the passage of water and oil at high pressure. It is specifically designed to be used in industry, is not afraid of work environments with aggressive or corrosive atmospheres.
The hose reel 8400 LIGHT STAINLESS steel is made to work:
thanks to the automatic stop system of the pipe the performance you are managing to the desired length, avoiding to have feet of hose out of the way, the mouth of the rollers is positionable in various configurations to facilitate the rotation of the tube, both input and output, the buffer bracket is adjustable.
FEATURES
Brackets in STAINLESS steel AISI 304
Screws in STAINLESS steel AISI 316L
Connector stainless steel/brass
The fitting on the inlet side in brass
Coil ABS
Detail of the fitting in the entrance
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass
Data sheet
Fluid
type oil – water 200 bar
temperature -15°C / +130°C
Tube
type of hose EN857 1 SC Black
tube diameter 10 mm 3/8”
hose length 15 m
Fittings
inlet 3/8”F
outlet 3/8”M swivel
Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8442/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
