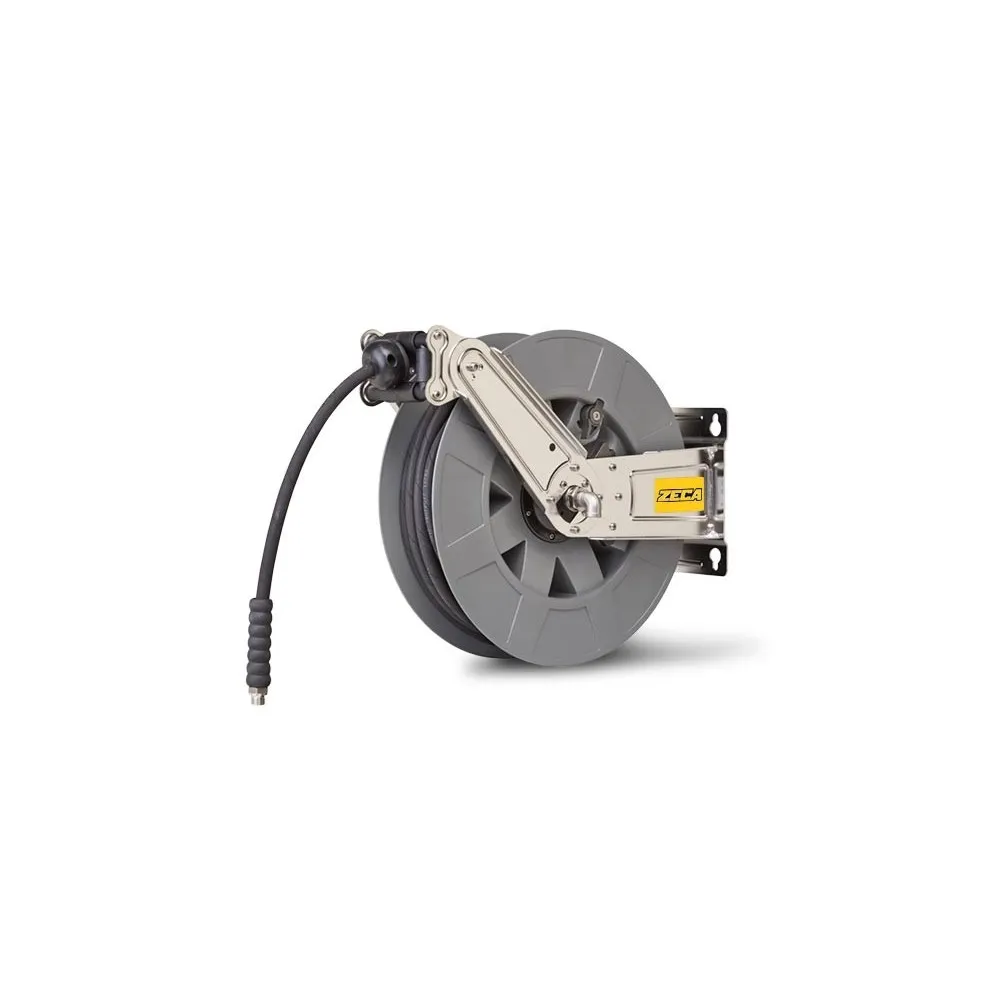

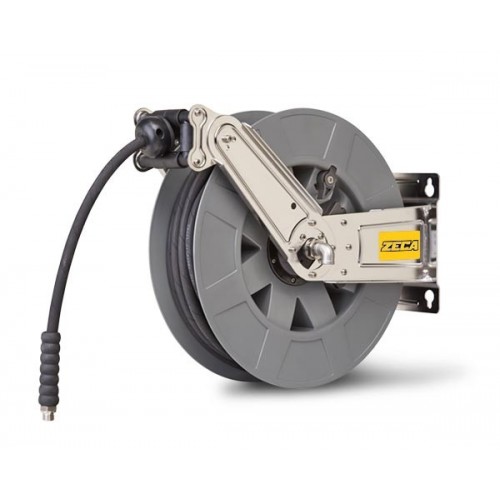

8432/1001 8400 SERIES LIGHT STAINLESS STEEL HOSE REEL FOR WATER 15 BAR 12 M HOSE - 12.5 MM HOSE INT DIAMETER ZECA

WATER HOSE REEL 15 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
320,05 €
Tax included

320,05 € Tax excluded

Quantity
Available product, order it now.

8432/1001 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR WATER FOOD INDUSTRY 15 BAR Zeca HOSE m 12 - INT. HOSE DIAM 12.5 mm
Technical improvements and high-quality materials make this series high-performance, suitable for industrial production needs, where equipment must withstand aggressive environments and corrosive atmospheres. The 8432 model is ideal for use in the food industry and large kitchens.
The 8432 hose reel is made with an ABS reel. Its use is facilitated by three systems that follow the movement of the hose both in and out:

automatic pipe stop system
roller mouth positionable in different configurations
adjustable pipe stopper
Hose reel manufacturing materials:
Incoming connection:
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
AISI 304 stainless steel brackets
AISI 316L stainless steel screws
Steel/brass outlet fitting
Technical data sheet
Fluid
water type 15 bar
temperature -10°C / +60°C
Tube
PU tube type – FOOD QUALITY
tube diameter 12.5 mm 1/2”
tube length 20 m
Connections
1/2”F inlet
1/2”M outlet

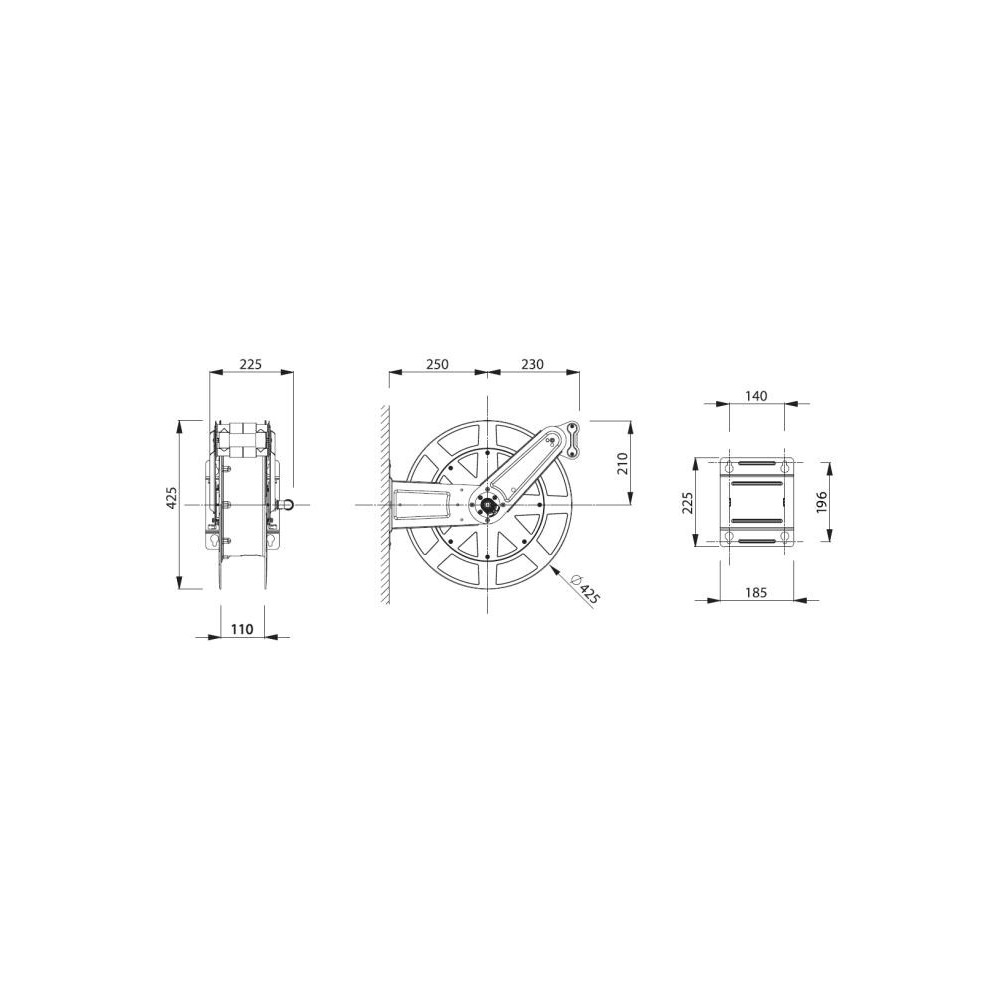

Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
The PU – FOOD QUALITY hose is certified (according to EU Regulation 1935/2004 and EU Regulation 10/2011) as suitable for contact with food. It is not suitable for the transport of food liquids.
The 8432/1001 hose reel is used in large kitchens and in the food industry
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8432/1001

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
