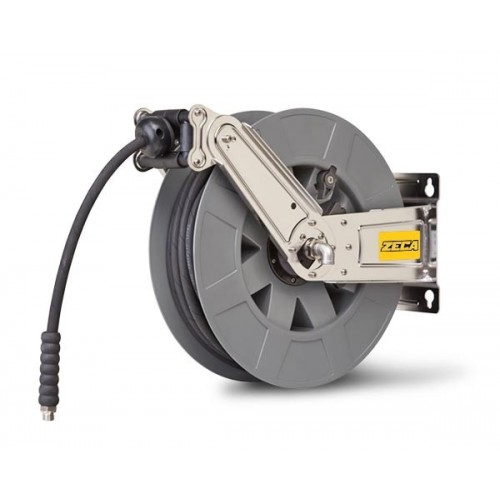

8427/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM
8427/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM Dinamitek 1

8427/1111 HOSE REEL FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE IN 20-M - DIAM INT PIPE 12.5 MM

HOSE AIR -WATER 20 Bar SERIES 8400 FULL STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

Rotary coupling and hose inlet of STAINLESS steel.

Connection output STAINLESS steel.

STAINLESS steel bolts and screws.

Shipping cost: Gratis for
324,19 €
Tax included

324,19 € Tax excluded

Quantity
Available product, order it now.

8427/1111 HOSE reel FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE in 20-m - DIAM INT
Technical improvements and the materials of the realisation of value are the features that make this series powerful, suited to the needs of industrial production, where it is necessary to use equipment that can withstand aggressive environments and corrosive atmospheres.
The hose reel 8432 is made with the coil in the ABS. The use is facilitated by three systems that have the task to follow the movement of the pipe both in input and output:

automatic stop system of the tube
the mouth of the rollers can be positioned in different configurations
buffer wraps adjustable
Materials of construction of the hose reel:
Fitting inlet:
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass
Brackets in STAINLESS steel AISI 304
Screws in STAINLESS steel AISI 316L
Connector stainless steel/brass
The hose reel Full of STAINLESS steel and are suitable in different application fields, from the boating industry and the chemical sector. They are ideal for industrial cleaning, for blowing, and fluid transport.
Data sheet
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type KPU
tube diameter 12,5 mm 1/2”
pipe length 20 m
Fittings
inlet 1/2”F
outlet 1/2”M

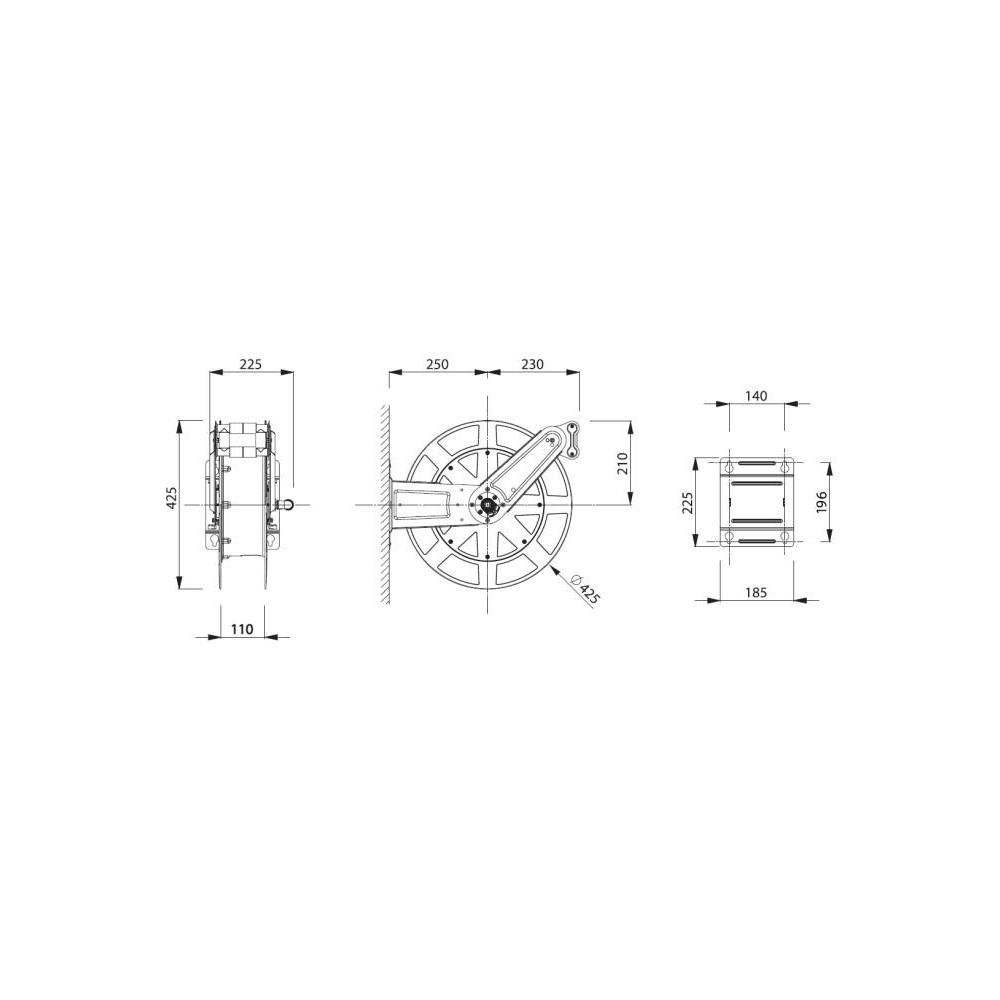

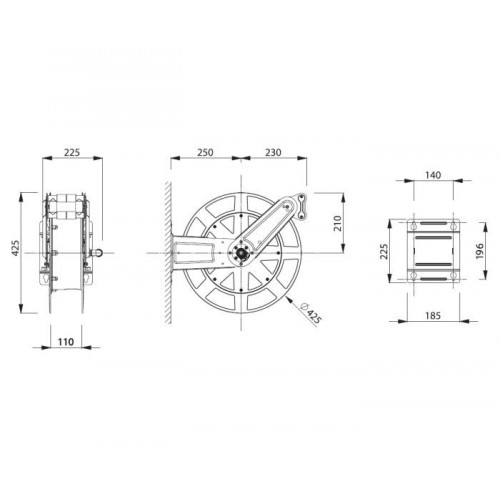

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC

Zeca
Azienda italiana leader del settore delle automotive, offre ottime soluzioni per l'industria


8427/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
