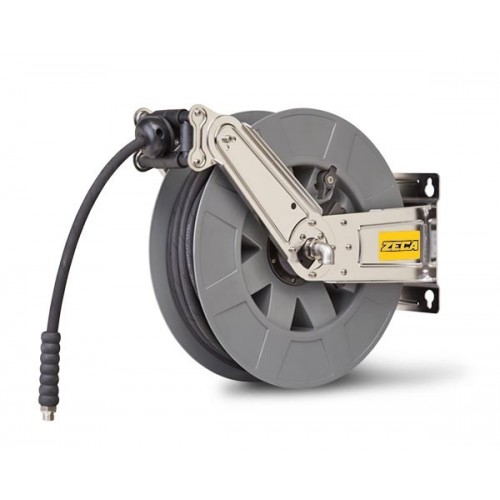

8427/1111 8400 SERIES FULL STAINLESS STEEL HOSE REEL FOR AIR AND WATER 20 BAR, 20 M HOSE - 12.5 MM INNER TUBE DIAMETER ZECA

AIR-WATER HOSE REEL 20 Bar SERIES 8400 FULL STAINLESS STEEL NEW.

AISI 304 stainless steel bracket.

Rotating joint and inlet fitting in stainless steel.

Stainless steel outlet connection.

Stainless steel screws.

Shipping cost: Free for
509,84 €
Tax included

417,90 € Tax excluded

Quantity
Available product, order it now.

8427/1111 FULL STAINLESS STEEL HOSE REEL 8400 SERIES FOR AIR AND WATER 20 BAR Zeca HOSE m 20 - DIAM INT
Technical improvements and high-quality manufacturing materials are the features that make this series high-performance, suitable for the needs of industrial production, where it is necessary to use equipment capable of withstanding aggressive environments and corrosive atmospheres.
The 8432 hose reel is made with an ABS reel. Its use is facilitated by three systems that follow the movement of the hose both in and out:

automatic pipe stop system
roller mouth positionable in different configurations
adjustable pipe stopper
Hose reel manufacturing materials:
Incoming connection:
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
AISI 304 stainless steel brackets
AISI 316L stainless steel screws
Steel/brass outlet fitting
Full INOX hose reels are suitable for a variety of applications, from nautical to the chemical industry. They are ideal for industrial cleaning, blowing, and fluid transport.
Technical data sheet
Fluid
air – water type 20 bar
temperature -15°C / +50°C
Tube
KPU tube type
tube diameter 12.5 mm 1/2”
tube length 20 m
Connections
1/2”F inlet
1/2”M outlet
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8427/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
