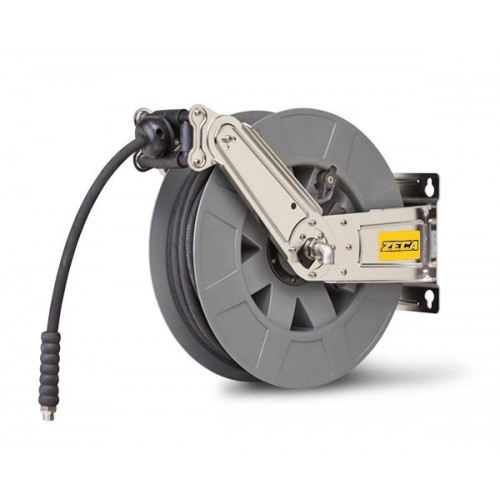

8427/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8427/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8427/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM Dinamitek 2
  • 8427/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 12.5 MM Dinamitek 3

8427/1002 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE IN 20-M - DIAM INT PIPE 12.5 MM

HOSE AIR -WATER 20 Bar SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Free for
413,46 €
Tax included

338,90 € Tax excluded

Quantity
Available product, order it now.

8427/1002 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE in 20-m - DIAM INT
Hose reels series 8400 LIGHT STAINLESS steel more durable and efficient, perfect for use in industrial environments with aggressive and corrosive atmospheres.
Made with quality materials, the hose reel has the coil in ABS, screws in STAINLESS steel AISI 316L, the STAINLESS steel brackets in AISI 304
Detail of the fitting in the entrance
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass
To facilitate the use of the hose reel, are made of the best techniques:

Automatic stop system of the tube
The mouth of the rollers can be positioned in different configurations
Buffer wraps adjustable
Data sheet
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type KPU
tube diameter 12,5 mm 1/2”
pipe length 20 m
Fittings
inlet 1/2”F
output steel/brass 1/2”M
Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8427/1002

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
