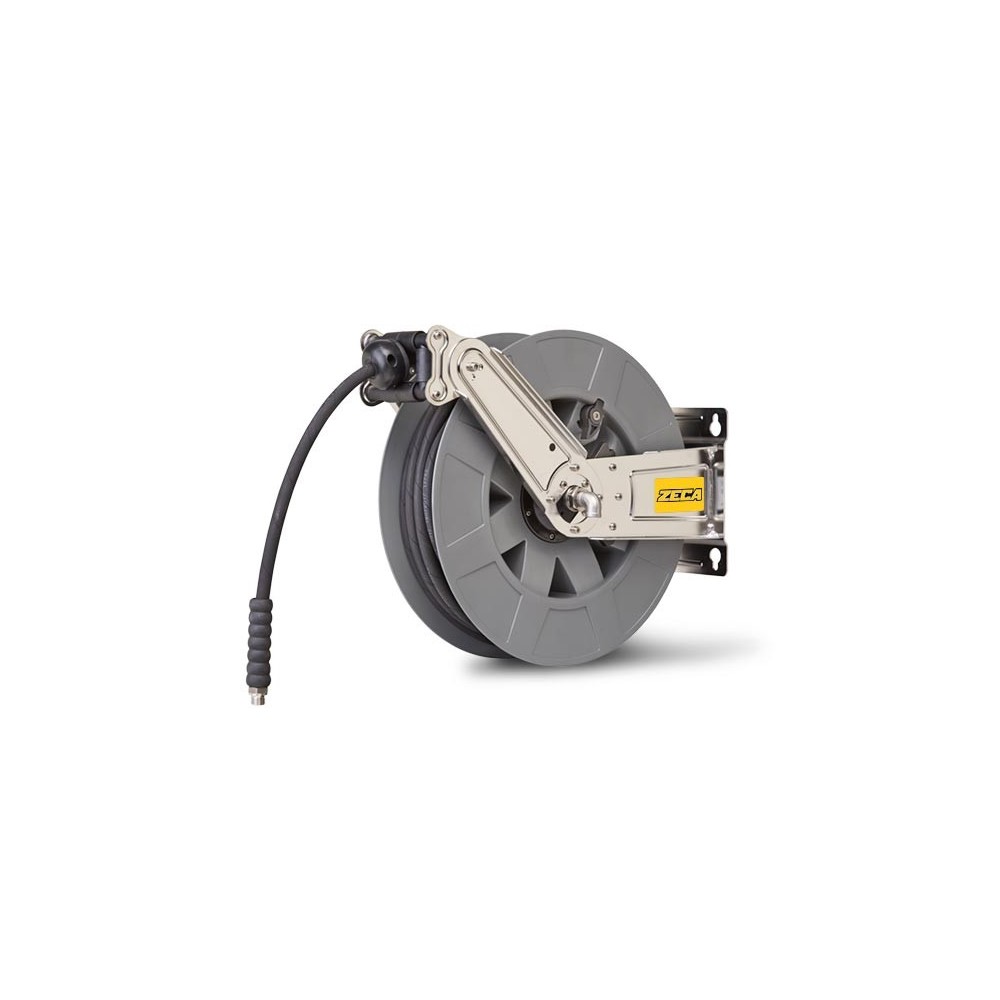

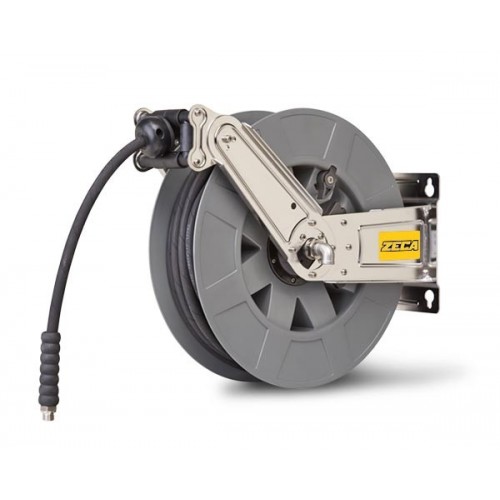

8426/1111 HOSE REEL FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA TUBE M 15 - DIAM INT PIPE 12.5 MM

HOSE AIR -WATER 20 Bar SERIES 8400 FULL STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

Rotary coupling and hose inlet of STAINLESS steel.

Connection output STAINLESS steel.

STAINLESS steel bolts and screws.

Shipping cost: Free for
381,54 €
Tax included

381,54 € Tax excluded

Quantity
Available product, order it now.

8426/1111 HOSE reel FULL STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA TUBE m 15 - DIAM INT
The hose reel 8400 FULL STAINLESS steel, are suitable in different application fields as they are made with quality materials. Are used in the nautical sector and in the chemical industry, as well as in industry where the work environment is very aggressive corrosive environment. They are ideal for industrial cleaning and for the passage of air and water at low pressure.
The hose reel 8426 has the coil in ABS, the brackets of AISI 304 STAINLESS steel and fixings in STAINLESS steel AISI 316L. In order to facilitate the user, the hose reel is equipped with automatic stop system of the tube, the buffer wraps adjustable, and the mouth of the rollers can be positioned in different configurations. These technical improvements have the purpose of facilitating the movement of the pipe both in input and output.

Data sheet
Detail inlet
tree coil in STAINLESS steel AISI 304
seal in FPM (Viton)
bushing AISI 304 STAINLESS
shaft coupling the rotating STAINLESS steel AISI 304
ring in STAINLESS steel AISI 304
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type KPU
tube diameter 12,5 mm 1/2”
hose length 15 m
Fittings
entry AISI 316L STAINLESS steel 1/2”F
output AISI 316L STAINLESS steel 1/2”M

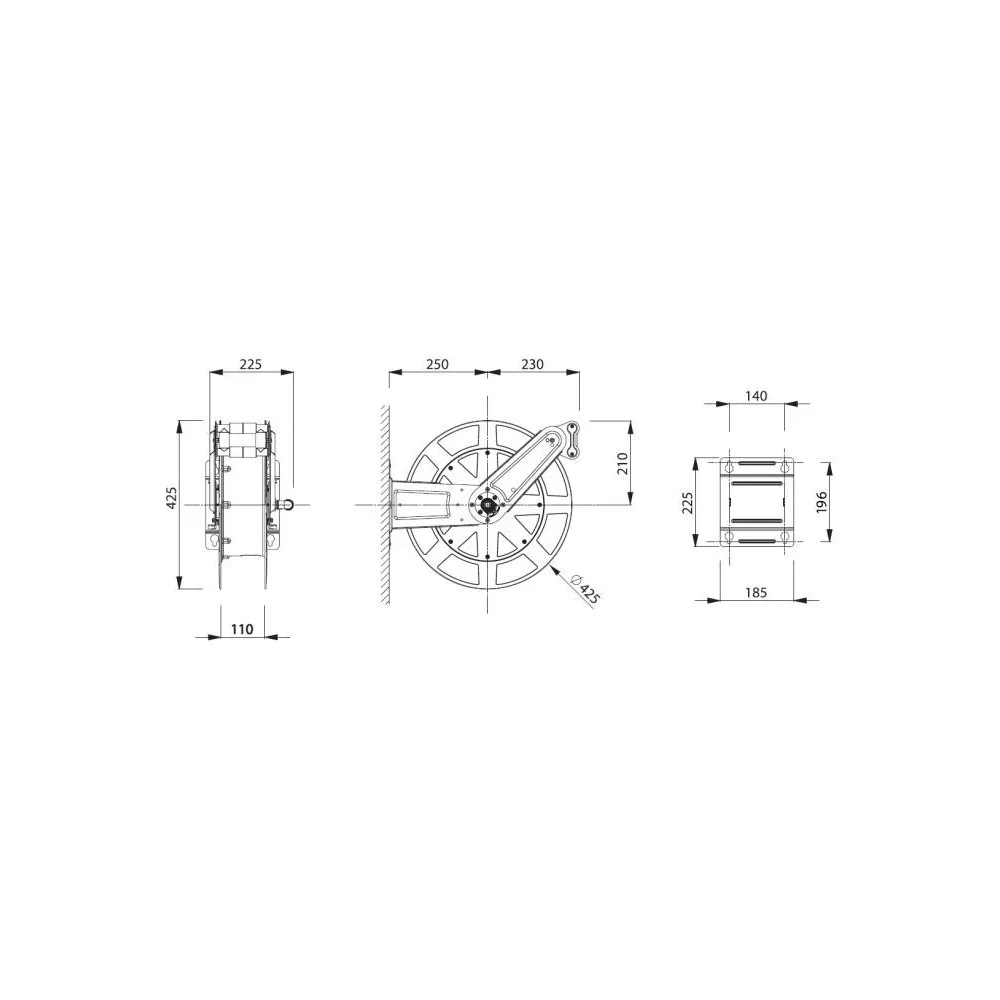

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8426/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
