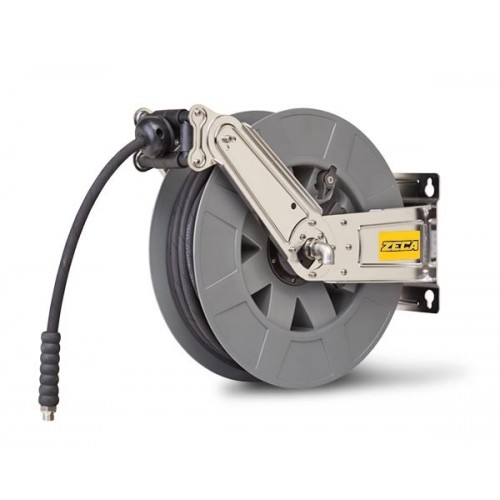

8426/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8426/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8426/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 2
  • 8426/1002 HOSE REEL LIGHT STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 3

8426/1002 8400 SERIES STAINLESS STEEL LIGHT HOSE REEL FOR AIR AND WATER 20 BAR, 15 M HOSE - 12.5 MM INNER DIAMETER HOSE ZECA

AIR-WATER HOSE REEL 20 Bar SERIES 8400 LIGHT INOX NEW.

AISI 304 stainless steel bracket.

Standard joint.

Brass outlet fitting.

Stainless steel screws.

Shipping cost: Free for
404,7 €
Tax included

331,72 € Tax excluded

Quantity
Available product, order it now.

8426/1002 LIGHT STAINLESS STEEL HOSE REEL 8400 SERIES FOR AIR AND WATER 20 BAR Zeca HOSE m 15 - DIAM INT
The 8400 hose reels are now available in the new LIGHT INOX version.
These hose reels with ABS coils are used in many sectors, in all those where resistant and high-performance equipment is required because they are not afraid of aggressive working environments and corrosive atmospheres (nautical, chemical, industrial cleaning, blowing and fluid transport).
The hose reel features an automatic hose stop system and a roller nozzle that can be positioned in various configurations: it's always easy to use, and the hose movement, both in and out, is always facilitated. This model is equipped with an adjustable hose stopper.
Technical data sheet
Fluid
air – water type 20 bar
temperature -15°C / +50°C
Tube
KPU tube type
tube diameter 12.5 mm 1/2”
tube length 15 m
Connections
1/2”F brass inlet
1/2”M brass outlet
Detail of the inlet connection
steel coil shaft
FPM (Viton) gasket
brass bushing
rotating joint shaft in brass/AISI 304 stainless steel
brass ring
PTFE rod guide ring
brass inlet fitting
AISI 304 stainless steel brackets
AISI 316L stainless steel screws
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8426/1002

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
