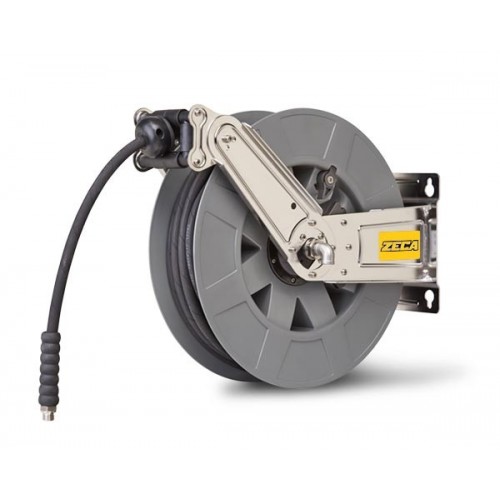

8406/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE M 18 - DIAM INT PIPE 10 MM Dinamitek 1
  • 8406/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE M 18 - DIAM INT PIPE 10 MM Dinamitek 1
  • 8406/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE M 18 - DIAM INT PIPE 10 MM Dinamitek 2
  • 8406/1111 HOSE REEL FULL STAINLESS ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE M 18 - DIAM INT PIPE 10 MM Dinamitek 3

8406/1111 8400 SERIES FULL STAINLESS STEEL HOSE REEL FOR AIR AND WATER 20 BAR, 18 M HOSE - 10 MM INNER TUBE DIAMETER ZECA

AIR-WATER HOSE REEL 20 Bar SERIES 8400 FULL STAINLESS STEEL NEW.

AISI 304 stainless steel bracket.

Rotating joint and inlet fitting in stainless steel.

Stainless steel outlet connection.

Stainless steel screws.

Shipping cost: Free for
498,34 €
Tax included

408,48 € Tax excluded

Quantity
Available product, order it now.

8406/1111 FULL STAINLESS STEEL HOSE REEL 8400 SERIES FOR AIR AND WATER 20 BAR Zeca HOSE m 18 - DIAM INT
The 8400 hose reels in the new FULL INOX special edition are suitable for various fields of application: nautical, chemical sector, aggressive work environments and corrosive atmospheres, industrial cleaning, blowing operations and fluid transport
The special Zeca hose reel has a reel made of durable ABS.
Every detail is crafted with care, using only quality materials.
For example, the incoming connection is made up of:
AISI 304 stainless steel coil shaft
FPM (Viton) gasket
AISI 304 stainless steel bushing
AISI 304 stainless steel rotary joint shaft
AISI 304 stainless steel ring
Furthermore, the special 8400 FULL INOX is equipped with:
AISI 304 stainless steel brackets
Stainless steel rotary joint and inlet fitting
AISI 316L stainless steel screws
Outlet fitting and inlet fitting in AISI 316L stainless steel
Coil shaft, bushings, rings and rotary joint shaft in AISI 30 stainless steel

In addition to its high-quality materials, the hose reel also stands out for its excellent functionality. The automatic hose stop system allows you to stop the reel at the desired length. The roller nozzle can be positioned in different configurations to facilitate the movement of the hose both in and out. The hose stop is adjustable.

Technical data sheet
Fluid
air – water type 20 bar
temperature -15°C / +50°C
Tube
SAE 100R6 hose type
tube diameter 10 mm 3/8”
tube length 18 m
Connections
1/2”F inlet
3/8”M outlet
Dimensions 550X505X270 mm
Weight 10 kg
ISO EN 12100 CE 2006/42/CE regulation
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8406/1111

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
