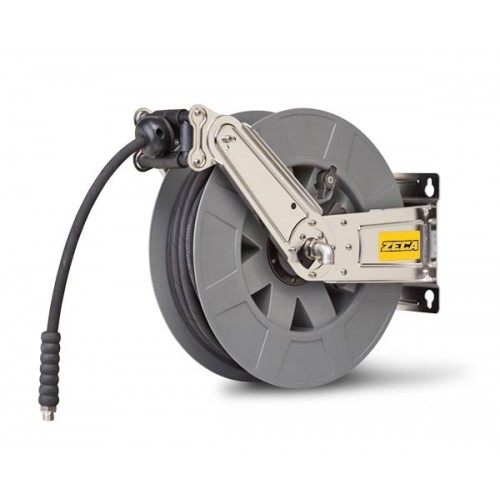

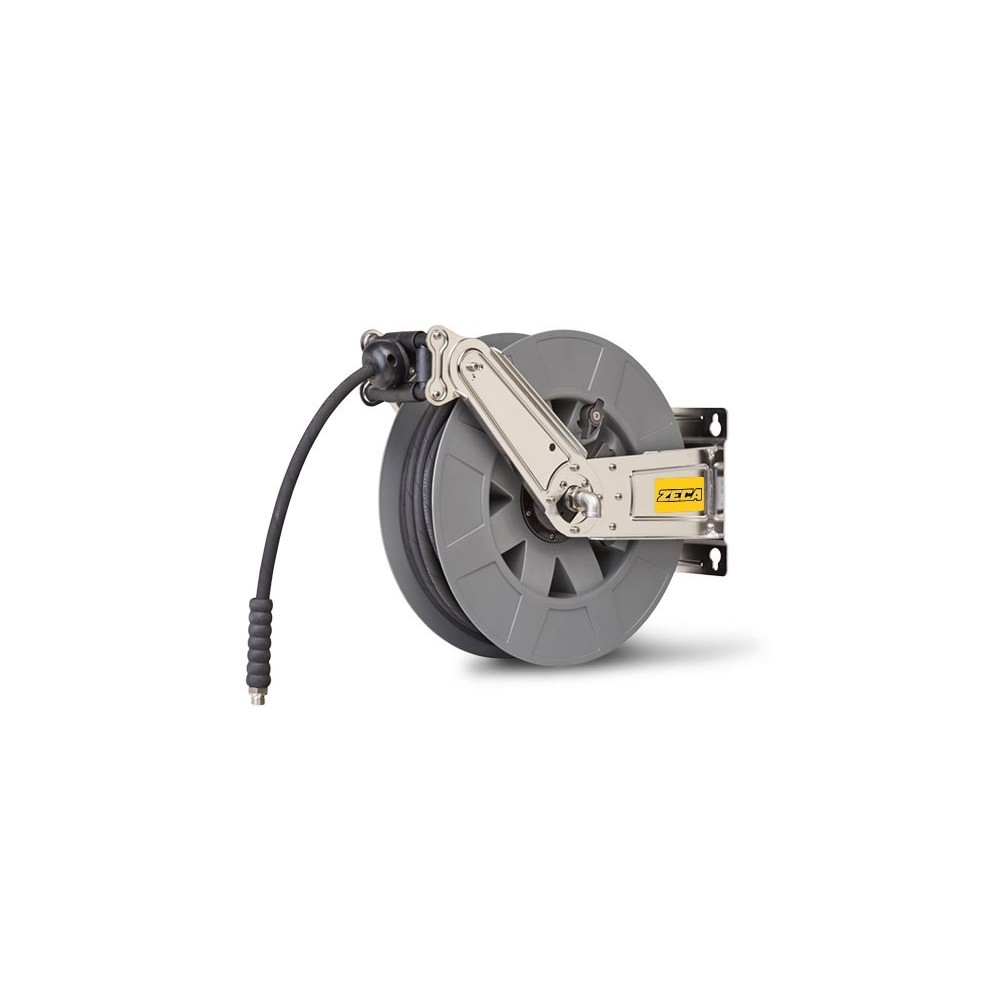

8406/1000 HOSE REEL LIGHT STAINLESS STEEL SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE M 18 - DIAM INT PIPE 10 MM

HOSE AIR -WATER 20 Bar SERIES 8400 LIGHT STAINLESS steel NEW.

Bracket in STAINLESS steel AISI 304.

The standard coupling.

Connector in brass.

STAINLESS steel bolts and screws.

Shipping cost: Free for
307,48 €
Tax included

307,48 € Tax excluded

Quantity
Available product, order it now.

8406/1000 HOSE reel LIGHT STAINLESS steel SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE m 18 - DIAM INT
The series of hose reel 8400 has evolved, is now available in the new "LIGHT" version in STAINLESS steel. Improved materials of construction, the new hose reel 8400 can be used in harsh environments, where the atmospheric conditions are aggressive and corrosive.
The use of the hose reel 8406/1000 is really easy, thanks to some of the technical specifications included specifically to optimize the use:
Automatic stop system of the pipe to the desired length
The mouth of the rollers can be positioned in different configurations
Buffer wraps adjustable
Data sheet
Coil ABS
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint in brass/STAINLESS steel AISI 304
ring brass
Ring rod guide, PTFE
the fitting on the inlet side in brass
Brackets in STAINLESS steel AISI 304
Screws in STAINLESS steel AISI 316L
Connector stainless steel/brass
The fitting on the inlet side in brass
Fluid
type air – water 20 bar
temperature -15°C / +50°C
Tube
tube type SAE 100R6
tube diameter 10 mm 3/8”
tube length 18 m
Fittings
inlet 1/2”F
outlet 3/8”M

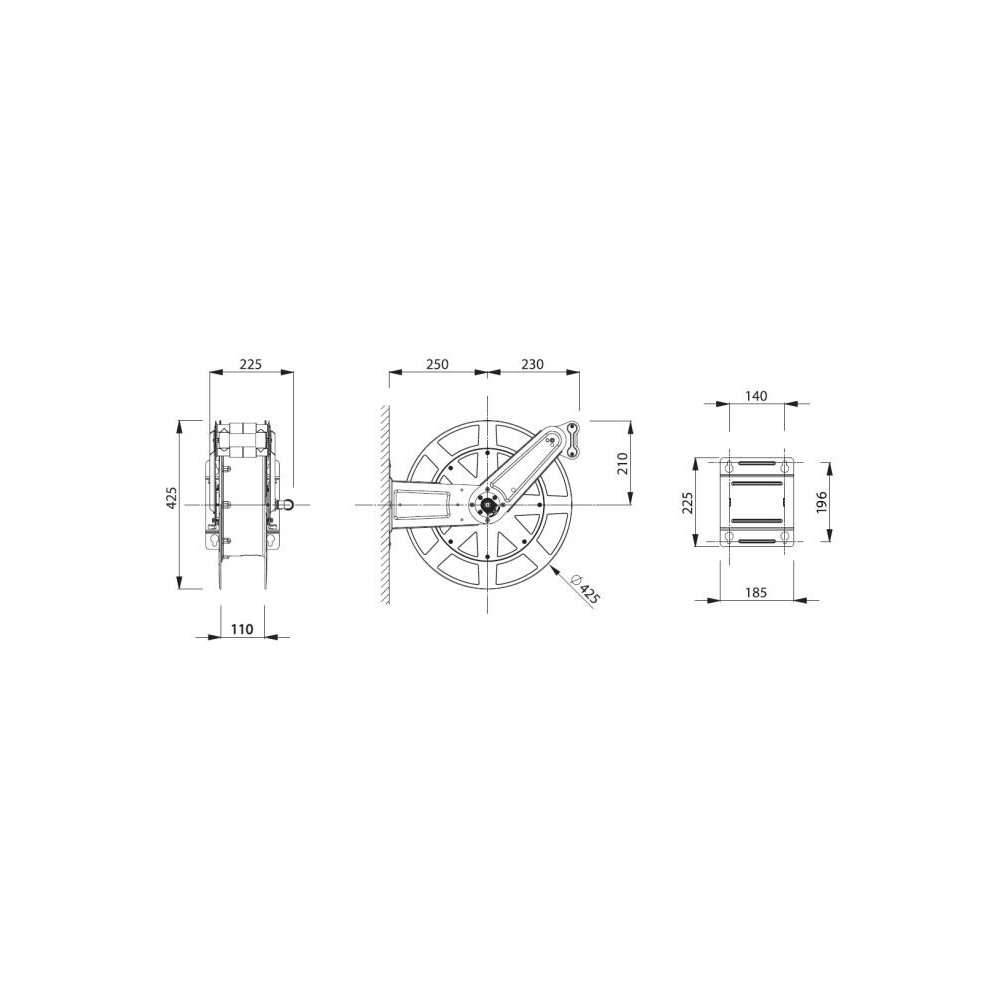

Size 550X505X270 mm
Weight 10 kg
ISO EN 12100 EC 2006/42/EC
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8406/1000

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
