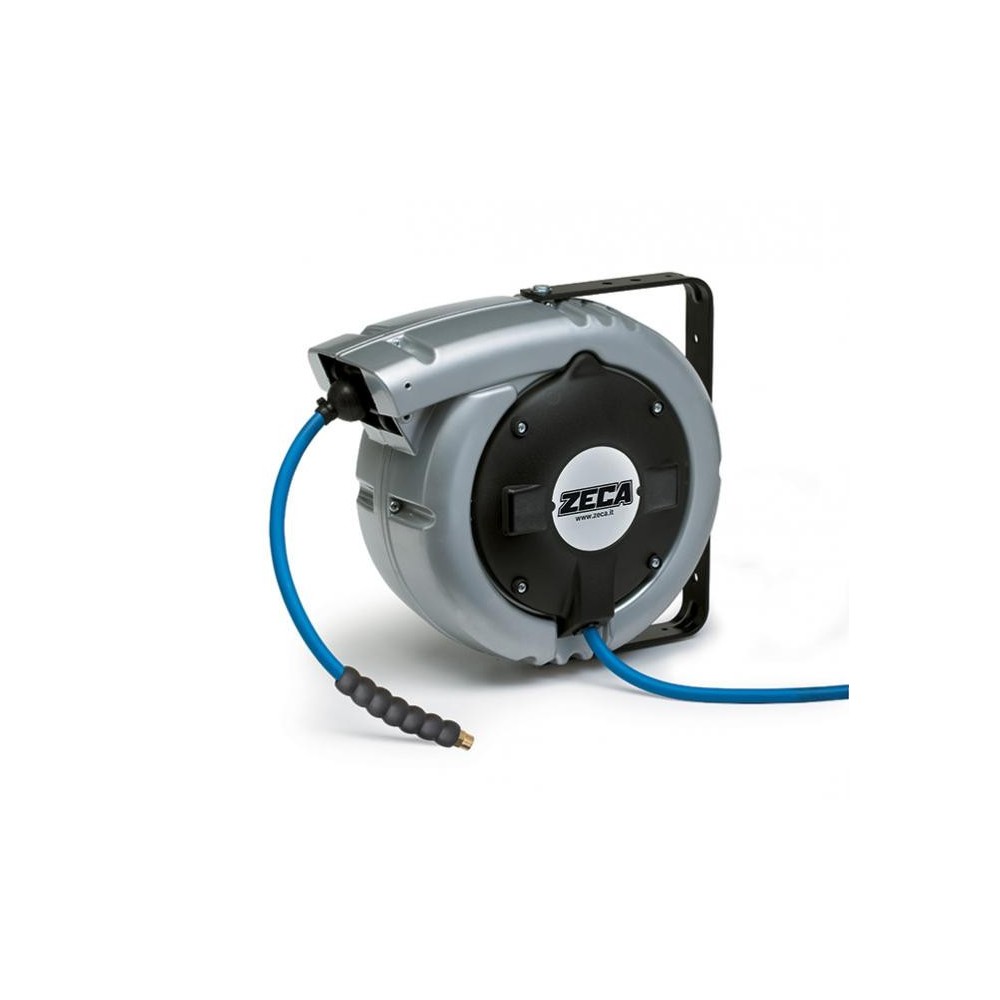

813/10/S HOSE REELS SILVER ZECA SERIES 813 FOR AIR AND WATER 12 BAR Dinamitek 1
  • 813/10/S HOSE REELS SILVER ZECA SERIES 813 FOR AIR AND WATER 12 BAR Dinamitek 1
  • 813/10/S HOSE REELS SILVER ZECA SERIES 813 FOR AIR AND WATER 12 BAR Dinamitek 2
  • 813/10/S HOSE REELS SILVER ZECA SERIES 813 FOR AIR AND WATER 12 BAR Dinamitek 3

813/10/S HOSE REELS SILVER SERIES 813 FOR AIR AND WATER 12 BAR ZECA HOSE M 9 - DIAM INT PIPE 10 MM

HOSE REEL SERIES 813 STRUCTURE: ALUMINIUM SILVER

The tube in the dual-material PVC/PU, matte blue, double layer, with reinforcement in high tenacity polyester.

Shipping cost: Free for
306,67 €
Tax included

251,37 € Tax excluded

Quantity
Available product, order it now.

813/10/S HOSE reels SILVER SERIES 813 FOR AIR AND WATER 12 BAR ZECA HOSE m 9 - DIAM INT PIPE 10 mm
Hose reel professional with structure in die-cast aluminium painted with epoxy powders. For the installation of the hose reel you in with the supplied bracket, adjustable metal. To facilitate the use, the hose reel is equipped with automatic device to stop tube for stopping the run of the pipe to the length of use. This mechanism can be switched easily if it is not useful at specific stages of the work.
Data sheet
Fluids
Air
Water

Tube
type bimaterial PVC/PU, matte blue
inner diameter 10 mm 3/8”
tube length 9 m
piece of input 2 m
Hose reel
maximum pressure 12 bar
temperature - 5° C / + 40° C

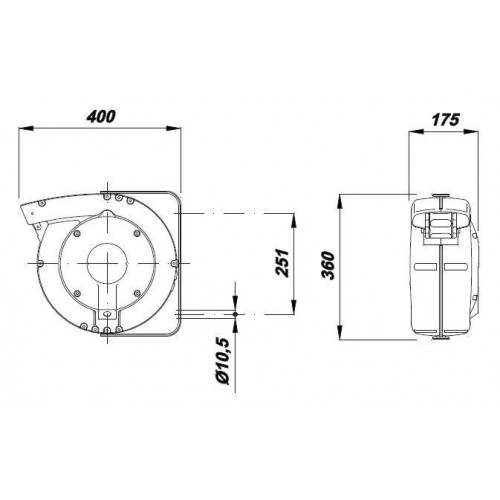

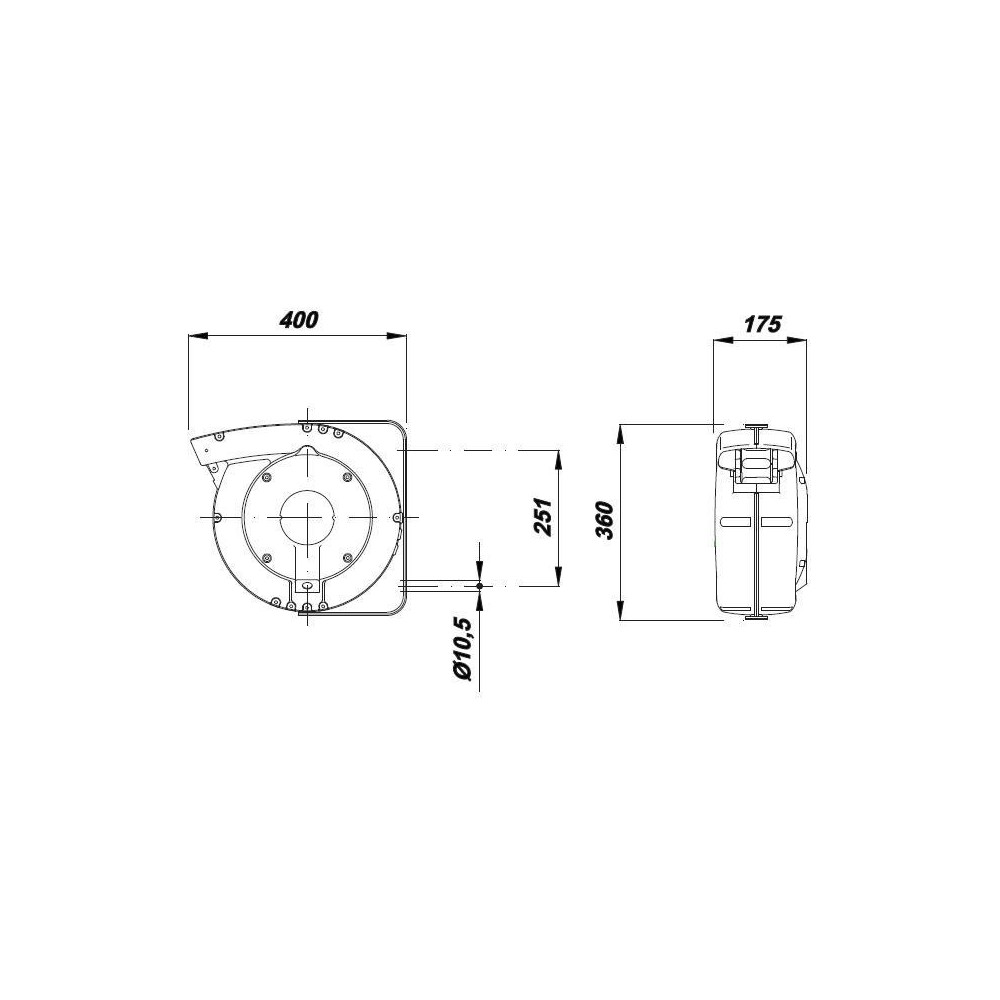

size 400x370x190 mm
weight: 10,5 Kg

Fittings
connector 3/8” M BSP
connection inlet 3/8” M
ISO EN 12100 EC 2006/42/EC are not suitable for food
TUV NORD certification Zertifizierung Baumusters geprüft
This hose reel is also available in a yellow version
813/10 HOSE reel SERIES 813 FOR AIR AND WATER 12 BAR ZECA HOSE m 9 - DIAM INT PIPE 10 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



813/10/S

SERIES 813 ZECA

Download (663.39k)
