8482 HOSE REEL ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8482 HOSE REEL ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8482 HOSE REEL ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 2
  • 8482 HOSE REEL ZECA SERIES 8400 FOR AT BLUE 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 3

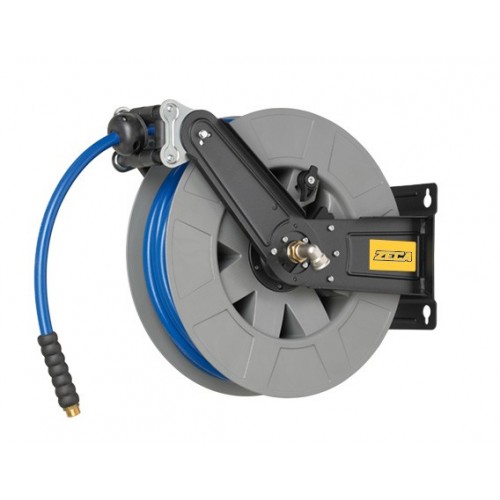

8482 HOSE REELS SERIES 8400 FOR AT BLUE 15 BAR ZECA HOSE M 8 - DIAM INT PIPE 19 MM

HOSE reel WITH BLUE 15 Bar SERIES 8400.

Bracket in steel painted with epoxy powders.

The standard coupling.

Connector in brass.

Steel bolts and screws.

Shipping cost: Free for
651,68 €
Tax included

534,16 € Tax excluded

Quantity
Available product, order it now.

8482 HOSE reels SERIES 8400 FOR AT BLUE 15 BAR ZECA HOSE m 8 - DIAM INT PIPE 19 mm AISI 316L coupling

Hose reels series 8400 zeca specific to the supply of fuel
The hose reel zeca are technologically advanced. Fitted with automatic stopping device which will guide the development of the tube, you have the option to adjust or remove the buffer wraps. Also the mouth of the rollers is positionable in a variety of configurations. The spring rewind is a high-performance thanks to the technology of maximo process with which it was made. The fastening brackets of the hose reel are adjustable, so you can customize your station according to the needs of production.
The hose reel 8482 has the coupling of a standard type, the rollers hose guiding self-lubricated, the coil in the ABS, the rotary joint without bottlenecks and with a low coefficient of friction and the bushings of support coils made of material with self-lubricating

Data sheet
Hose reel:
max pressure (Bar) 15
use Ad Blue
fluid temperature -10°C/+60°C

Tube:
diameter mm 19 ¾ ”
length m 8
type PVC-PU

Fittings:
entry ¾ ” M
exit ¾ ” F swivel
Materials components:
mounting brackets, steel, epoxy powder coated
connector is made of brass/steel
steel bolts and screws
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft coupling rotary-brass
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass
ISO EN 12100 EC 2006/42/EC

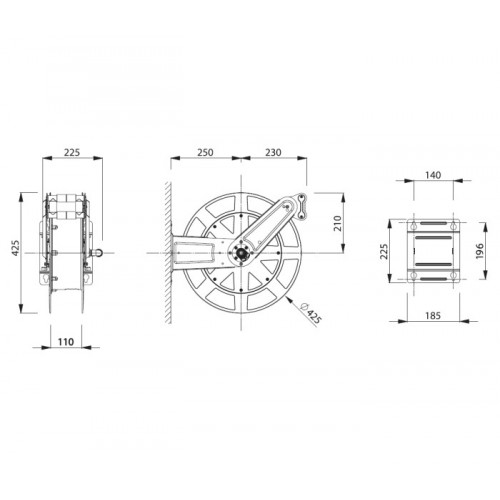

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8482

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
