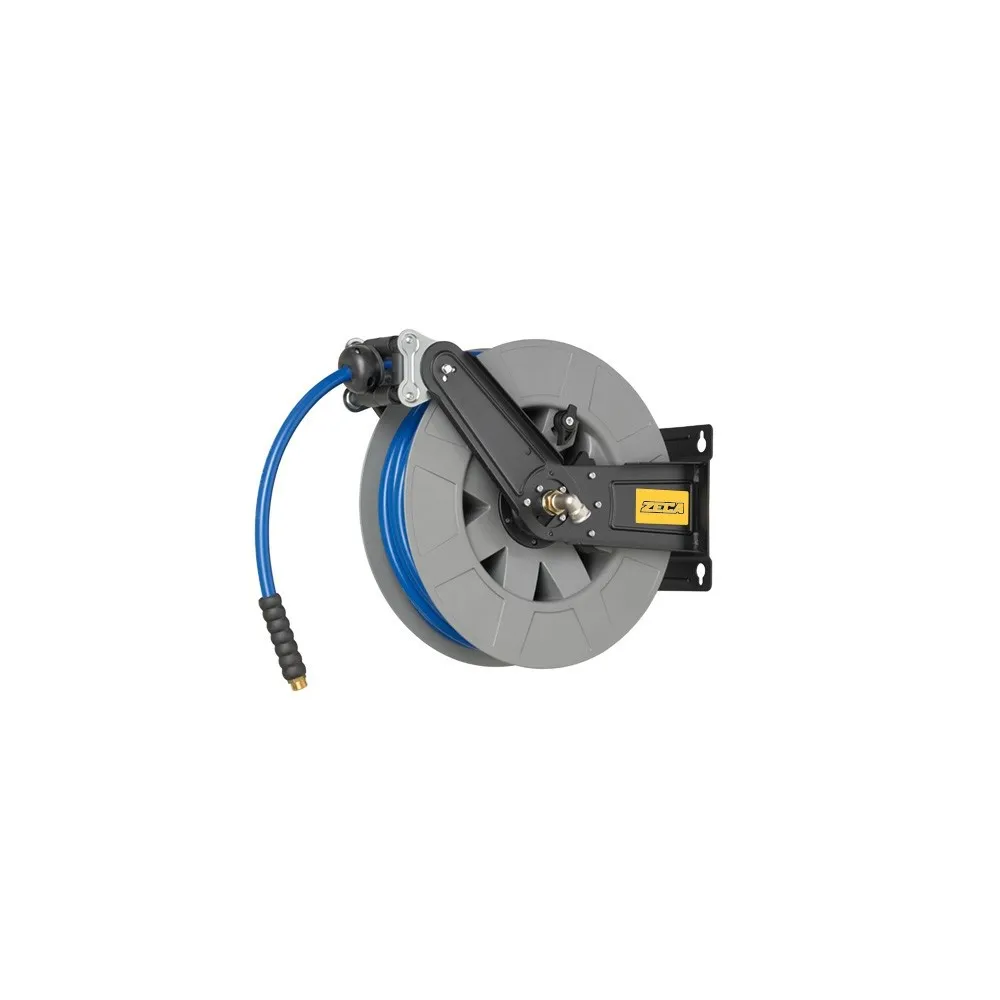

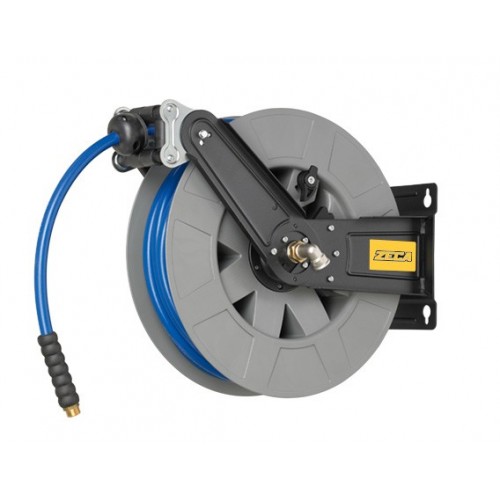

8482 8400 SERIES HOSE REEL FOR AD BLUE 15 BAR HOSE M 8 - INNER TUBE DIAMETER 19 MM ZECA

AD BLUE 15 Bar HOSE REEL 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
677,96 €
Tax included

555,71 € Tax excluded

Quantity
Available product, order it now.

8482 HOSE REEL SERIES 8400 FOR AD BLUE 15 BAR Zeca HOSE m 8 - INT. DIAM. HOSE 19 mm AISI 316L joint

8400 Zeca series hose reel specifically for refueling
Zeca hose reels are technologically advanced. Equipped with an automatic stop device that guides the hose unwinding, you can adjust or remove the hose stopper. The roller nozzle can also be positioned in different configurations. The rewind spring is high-performance thanks to the Maximo Process technology it was created with. The hose reel mounting brackets are adjustable, so you can customize your workstation according to your production needs.
The 8482 hose reel has a standard type joint, self-lubricating hose guide rollers, an ABS reel, a rotary joint without constriction and with a low friction coefficient and reel support bushings made of self-lubricating material.

Technical data sheet
Hose reel:
maximum pressure Bar 15
Ad Blue use
fluid temperature -10°C/+60°C

Tube:
diameter 19 ¾” mm
length 8 m
PVC-PU type

Connections:
¾” M entry
¾” F swivel outlet
Component materials:
epoxy powder coated steel fixing brackets
outlet fitting is made of brass/steel
steel screws
steel coil shaft
FPM (Viton) gasket
brass bushing
brass rotary joint shaft
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting
ISO EN 12100 CE 2006/42/CE regulation

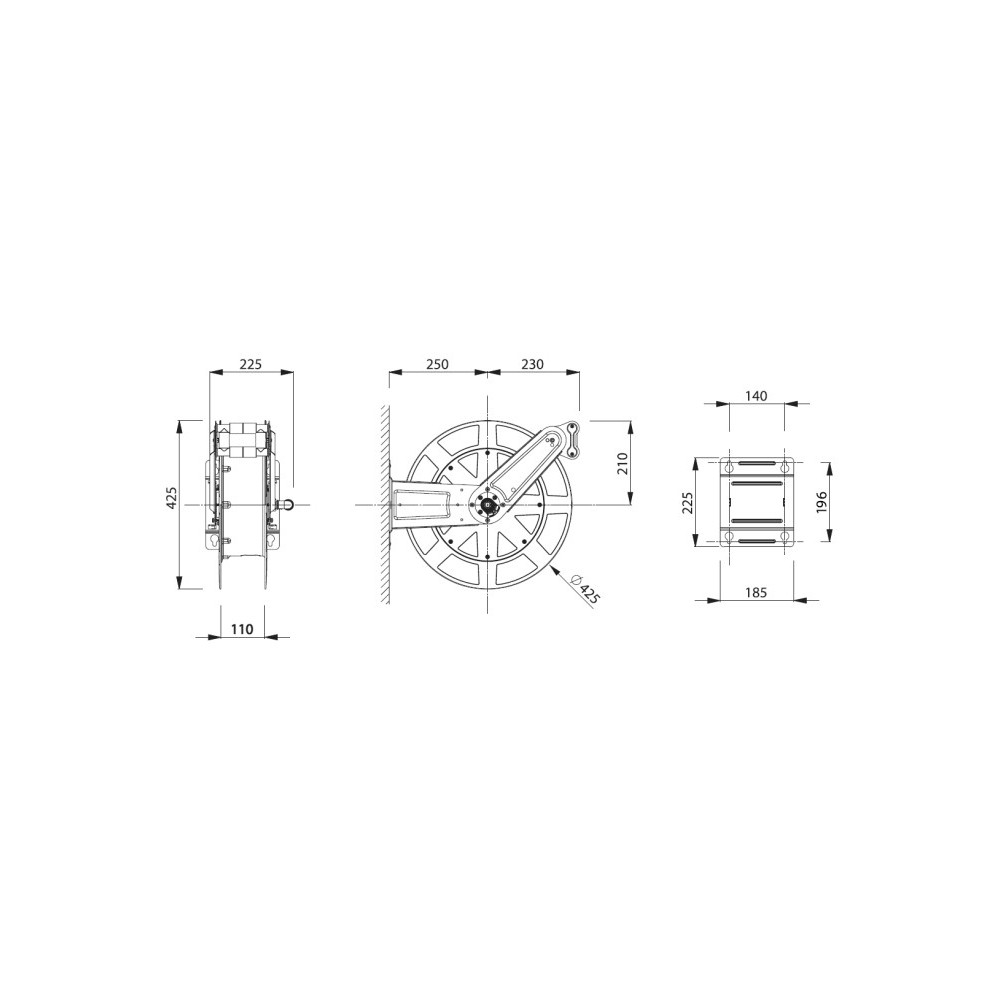

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8482

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
