8480 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-WITHOUT HOSE Dinamitek 1
  • 8480 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-WITHOUT HOSE Dinamitek 1
  • 8480 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-WITHOUT HOSE Dinamitek 2
  • 8480 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-WITHOUT HOSE Dinamitek 3

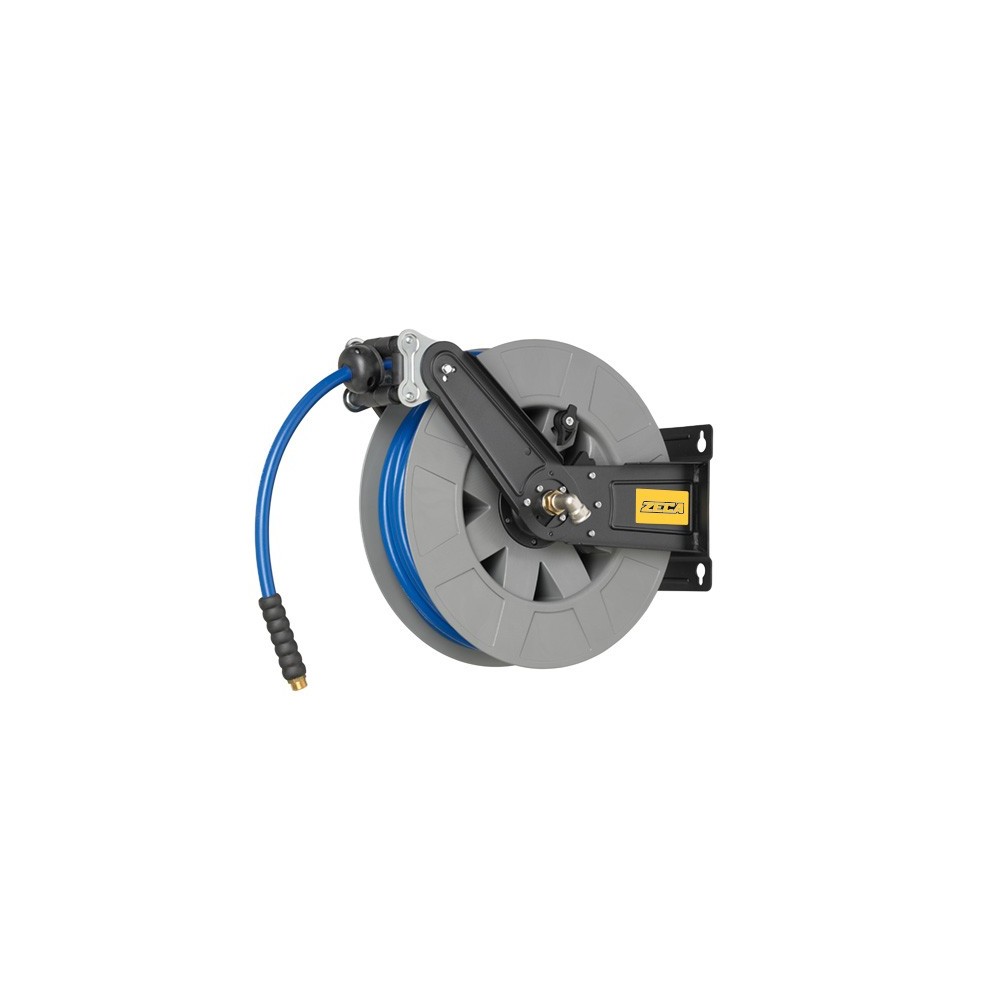

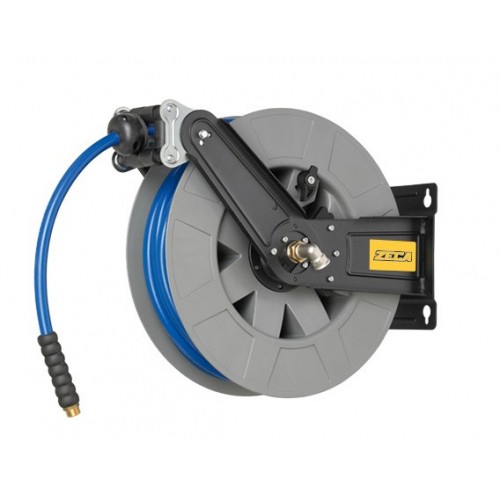

8480 HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR ZECA WITHOUT TUBE

HOSE AIR -WATER 20 Bar SERIES 8400.

Bracket in steel painted with epoxy powders.

The standard coupling.

Connector in brass.

Steel bolts and screws.

Shipping cost: Gratis for
Request availability

8480 HOSE reels SERIES 8400 FOR AIR AND WATER 20 BAR ZECA WITHOUT TUBE AISI 316L coupling
With the hose reels series 8400 you will be able to move air, high pressure water, hot water, oil, diesel, Ad Blue: the HOSE reel 8480 SERVES THE PASSAGE OF AIR AND WATER 20 BAR
Hose reel zeca, technology and innovation:
automatic stop system of the tube
the pad bracket is adjustable and removable
the mouth of the rollers can be positioned in different configurations
technology maximo process for the spring rewind
adjustable mounting brackets
coupling of standard type
reels hose guiding self-lubricated
coil ABS,
the rotary joint without bottlenecks and with a low coefficient of friction
bushings supporting the rolls in the material self-lubricating

Materials of construction fine:
mounting brackets, steel, epoxy powder coated
connector is made of brass/steel
steel bolts and screws
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft coupling rotary-brass
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass
Data sheet

Hose reel:
max pressure (Bar) 20
use air water
fluid temperature -15°C/+50°C

Fittings:
inlet ½ ” F
½ ” F

Fields of application of the series 84oo zeca: fuel, aviation, military, marine, mining, construction, agriculture, chemical, mechanic, industry, car washes, industrial cleaning, food industry and large kitchens

ISO EN 12100 EC 2006/42/EC

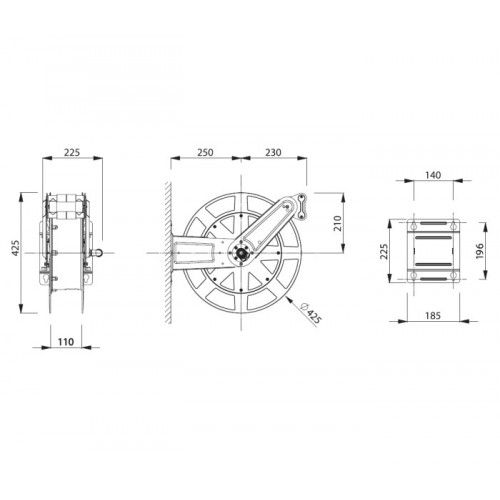

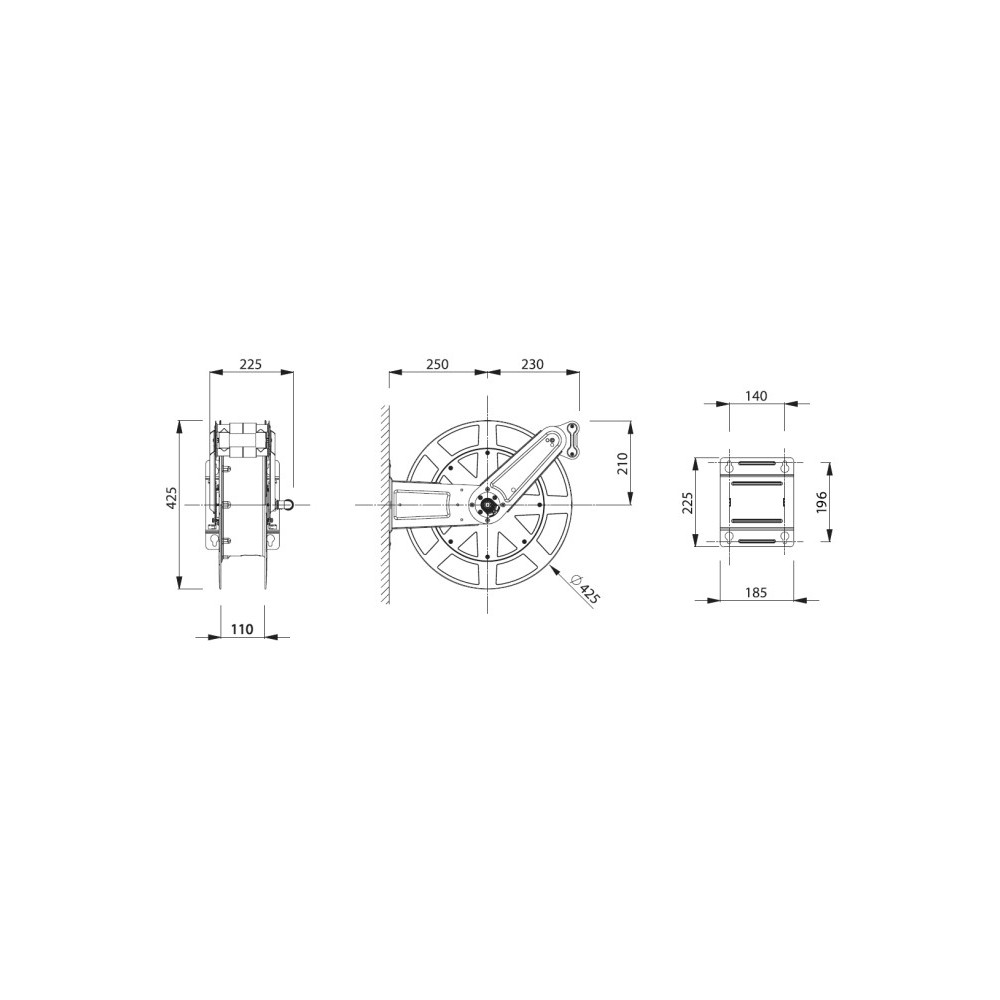

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8480

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
