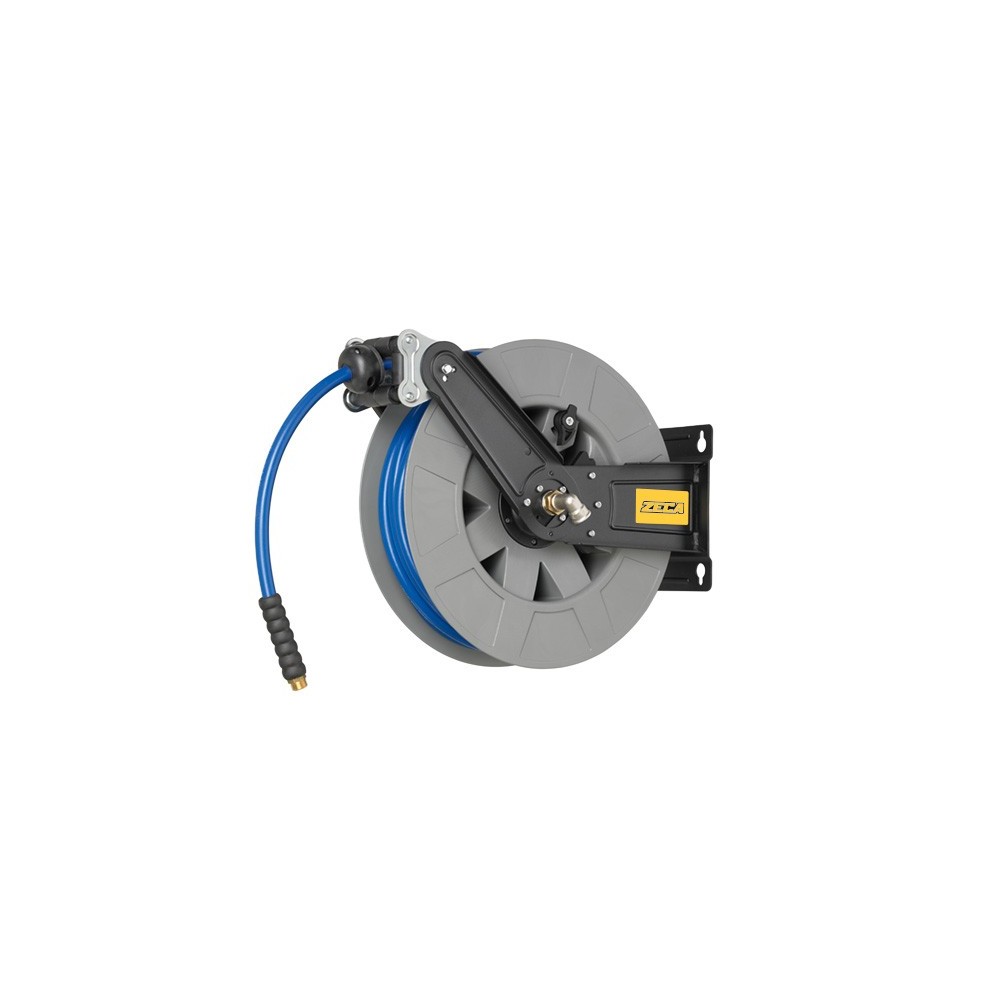

8480 8400 SERIES HOSE REEL FOR AIR AND WATER 20 BAR WITHOUT HOSE ZECA

AIR-WATER HOSE REEL 20 Bar 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
246,43 €
Tax included

201,99 € Tax excluded

Request availability

8480 HOSE REEL SERIES 8400 FOR AIR AND WATER 20 BAR Zeca WITHOUT TUBE AISI 316L joint
With the 8400 series hose reels you can transport air, high pressure water, hot water, oil, diesel, Ad Blue: the 8480 HOSE REEL IS FOR THE PASSAGE OF AIR AND WATER AT 20 BAR
Zeca hose reel, technology and innovation:
automatic pipe stop system
adjustable and removable hose stopper
roller mouth positionable in different configurations
Maximo process technology for the rewind spring
adjustable fixing brackets
standard type joint
self-lubricated pipe guide rollers
ABS coil,
rotary joint without constriction and with low friction coefficient
coil support bushings in self-lubricating material

High-quality manufacturing materials:
epoxy powder coated steel fixing brackets
outlet fitting is made of brass/steel
steel screws
steel coil shaft
FPM (Viton) gasket
brass bushing
brass rotary joint shaft
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting
Technical data sheet

Hose reel:
maximum pressure Bar 20
air water use
fluid temperature -15°C/+50°C

Connections:
½” F entry
½” F outlet

Application fields of the 84oo Zeca series: refueling, aviation, military, nautical, mining, construction, agriculture, chemical, auto repair, industry, car washes, industrial cleaning, food industries and large kitchens

ISO EN 12100 CE 2006/42/CE regulation

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
