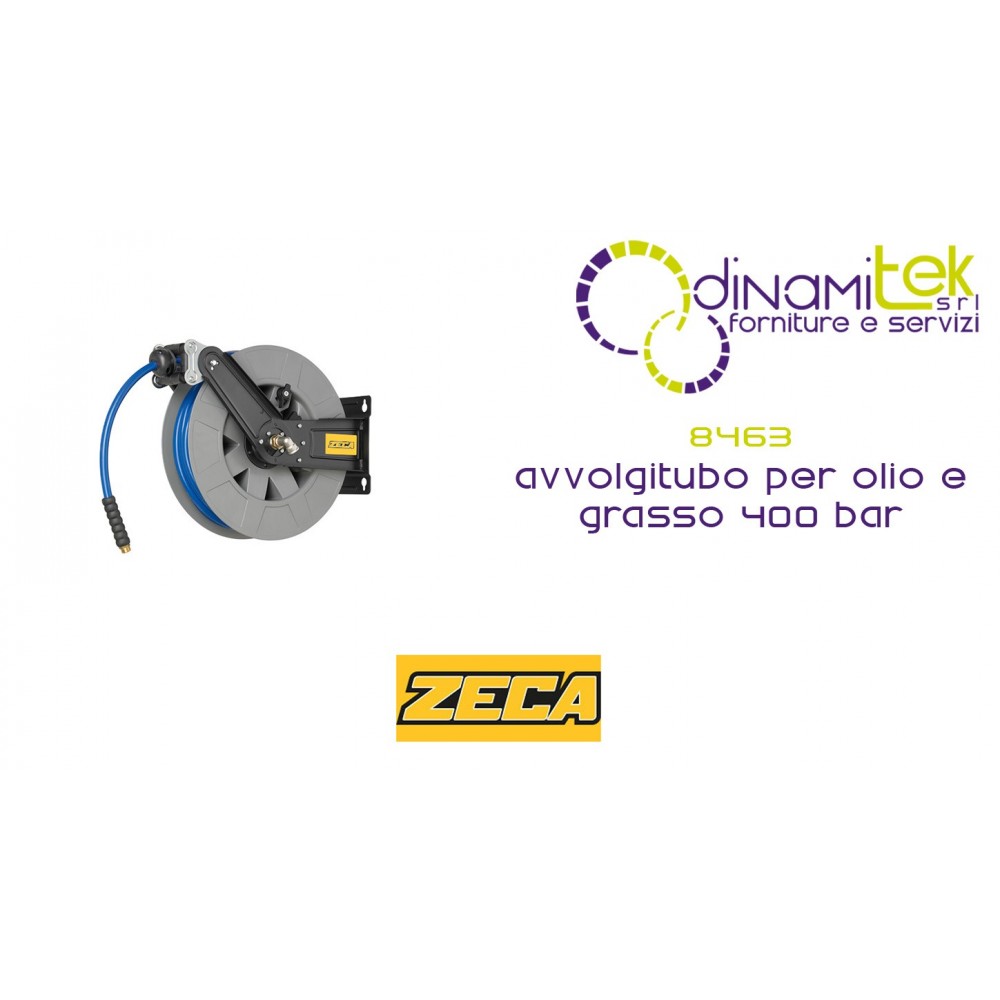

8463 HOSE REELS SERIES 8400 FOR OIL AND GREASE 400 BAR ZECA PIPE M 18 - DIAM INT PIPE 6 MM

8463 HOSE reels SERIES 8400 FOR OIL AND GREASE 400 BAR ZECA PIPE m 18 - DIAM INT PIPE 6 mm
The series of hose reel 8400 zeca serves a range of fluids are very wide.
The HOSE reel 8463 SERVES for THE PASSAGE OF OIL AND GREASE 400 BAR
Hose reel high-pressure suitable for, aviation, military, marine, mining, construction, chemical, car repair, industry. The hose reel is specifically designed to optimize the passage of the fluirdo.
The hose reel differ by type of pipe, for fittings of inlet and outlet and especially for the type of fluid, pressure and temperature that support. Choose the model that suits your needs among all models available in the range.
The hose reel 8463 is equipped with automatic stop system of the pipe so the performance of the tube is easily adjustable at the desired length. The buffer wraps of 8463 is removable and adjustable, to adapt to the needs of your service.
Always to promote the adaptability of the equipment to the needs of use, the mouth of the rollers is positionable in a variety of configurations.
The hose reels series 8400 zeca are high performance spring rewind is made with the technology maximo process, the fastening brackets of the hose reel are adjustable and powder coated steel epoxy, the joint is of the standard type, the connector is made of brass/steel and screws in real steel.
Development and technology of the range 8400 zeca:
reels hose guiding self-lubricated
coil ABS,
the rotary joint without bottlenecks and with a low coefficient of friction
bushings supporting the rolls in the material self-lubricating
Data sheet

Hose reel:
maximum pressure Bar 400
using fat oil
fluid temperature -20°C/+120°C

Tube:
diameter mm 6 ¼ ”
length m 18
type EN 857 2SC

Fittings:
inlet 3/8” F
output ¼ ” M
Detail fitting of entry:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass
ISO EN 12100 EC 2006/42/EC

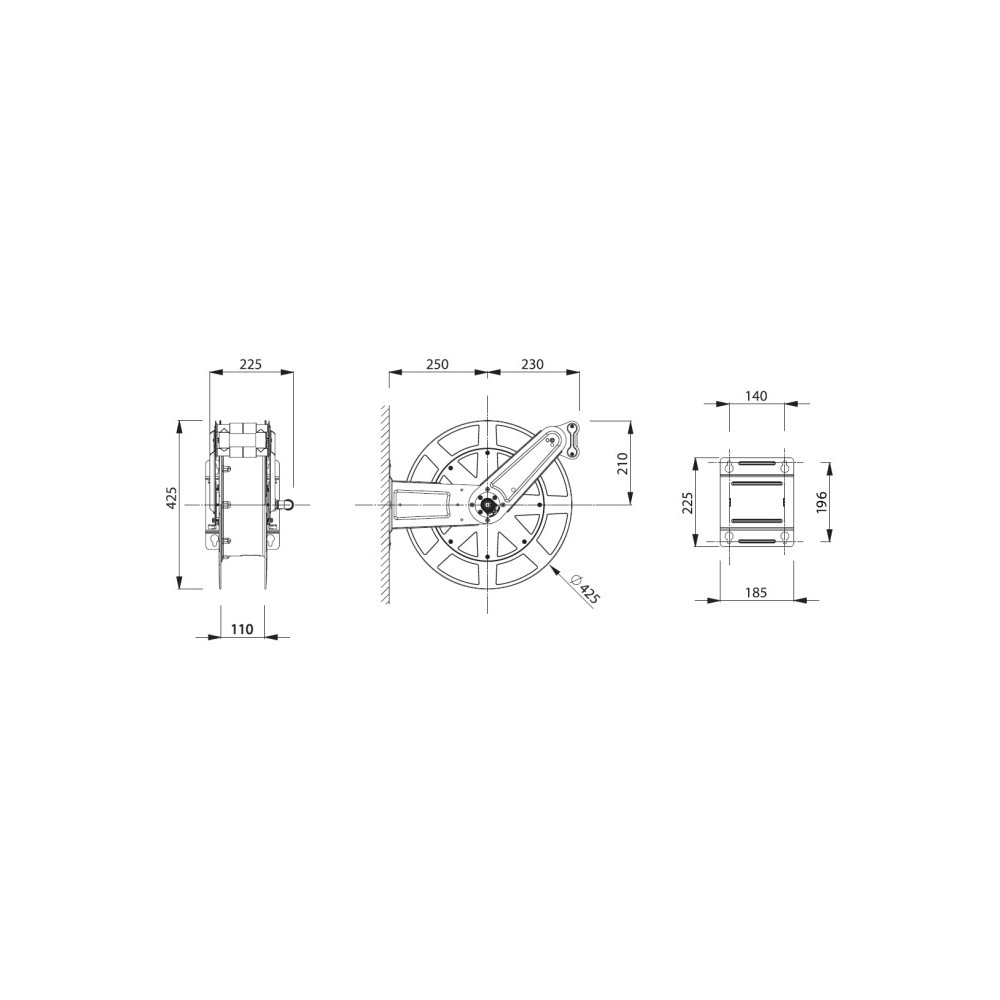

Size and weight 550x505x270 mm, 10 Kg
