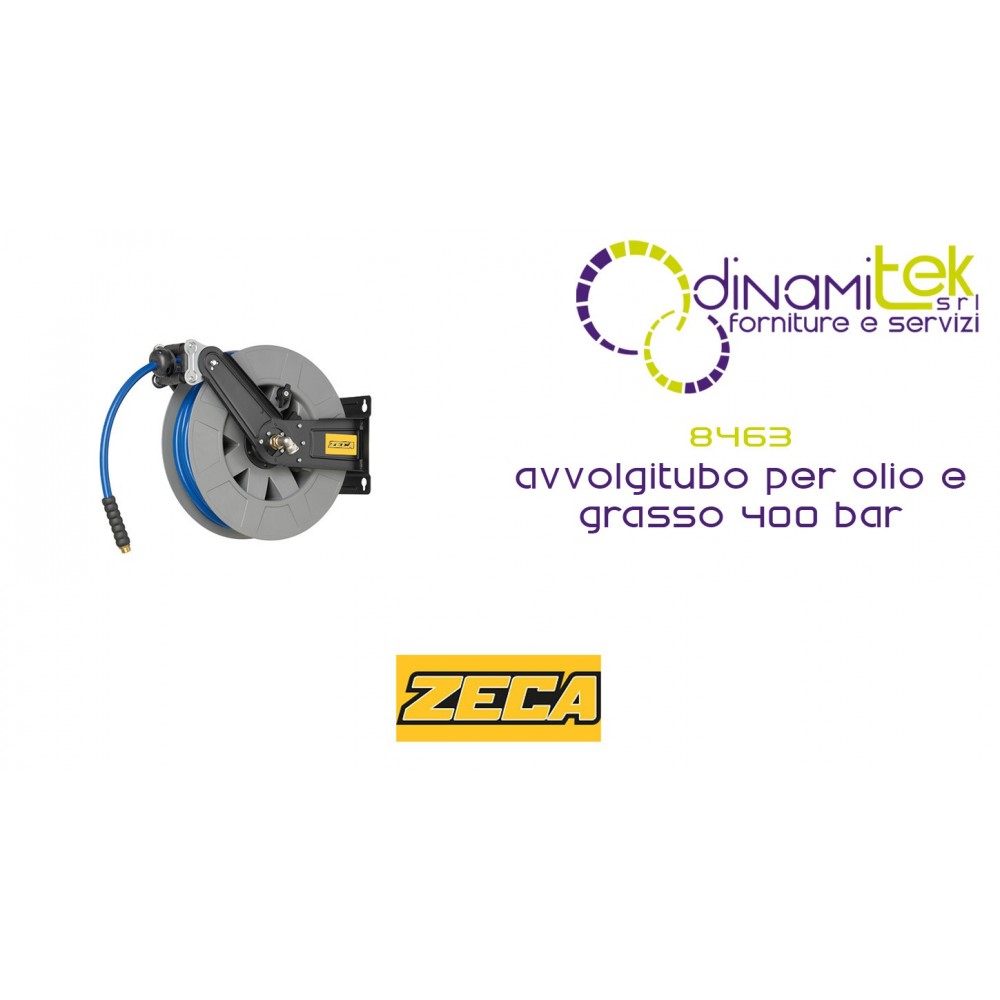

8463 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE M 18 - DIAM INT PIPE 6 MM Dinamitek 1
  • 8463 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE M 18 - DIAM INT PIPE 6 MM Dinamitek 1
  • 8463 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE M 18 - DIAM INT PIPE 6 MM Dinamitek 2
  • 8463 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-HOSE M 18 - DIAM INT PIPE 6 MM Dinamitek 3

8463 8400 SERIES HOSE REEL FOR OIL AND GREASE 400 BAR 18 M HOSE - 6 MM INNER TUBE DIAMETER ZECA

OIL - GREASE HOSE REEL 400 Bar 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
359,24 €
Tax included

294,46 € Tax excluded

Quantity
Available product, order it now.

8463 HOSE REEL SERIES 8400 FOR OIL AND GREASE 400 BAR Zeca HOSE m 18 - INT DIAM. HOSE 6 mm
The 8400 Zeca hose reel series serves a very wide range of fluids.
THE 8463 HOSE REEL IS FOR THE TRANSFER OF OIL AND GREASE AT 400 BAR
High-pressure hose reel suitable for aviation, military, marine, mining, construction, chemical, automotive, and industrial applications. This specific hose reel is designed to optimize fluid flow.
Hose reels vary in hose type, inlet and outlet connections, and, most importantly, in the type of fluid, pressure, and operating temperature they support. Choose the model that best suits your needs from all the models available in the range.
The 8463 hose reel features an automatic hose stop system, allowing you to easily adjust the hose to the desired length. The 8463 hose stopper is adjustable and removable to suit your service needs.
To further facilitate the adaptability of the equipment to the needs of use, the roller mouth can be positioned in different configurations.
The 8400 Zeca series hose reels are high-performance: the rewind spring is made with maximo process technology, the hose reel fixing brackets are orientable and made of epoxy powder coated steel, the joint is of the standard type, the outlet fitting is made of brass/steel and the screws are made of real steel.
Development and technology of the 8400 Zeca range:
self-lubricated pipe guide rollers
ABS coil,
rotary joint without constriction and with low friction coefficient
coil support bushings made of self-lubricating material
Technical data sheet

Hose reel:
maximum pressure Bar 400
use of fatty oil
fluid temperature -20°C/+120°C

Tube:
diameter 6 ¼” mm
length 18 m
type EN 857 2SC

Connections:
3/8” F entry
¼” M outlet
Entrance connection detail:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting
ISO EN 12100 CE 2006/42/CE regulation

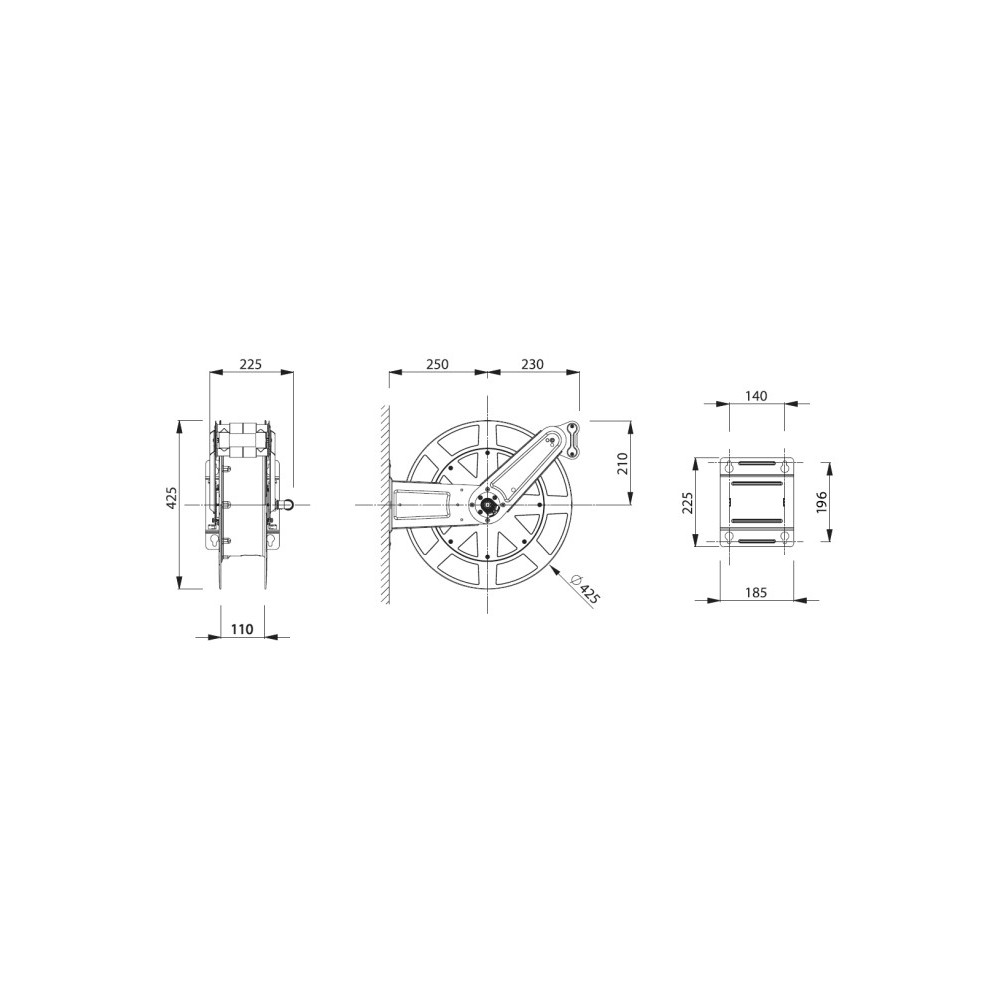

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8463

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
