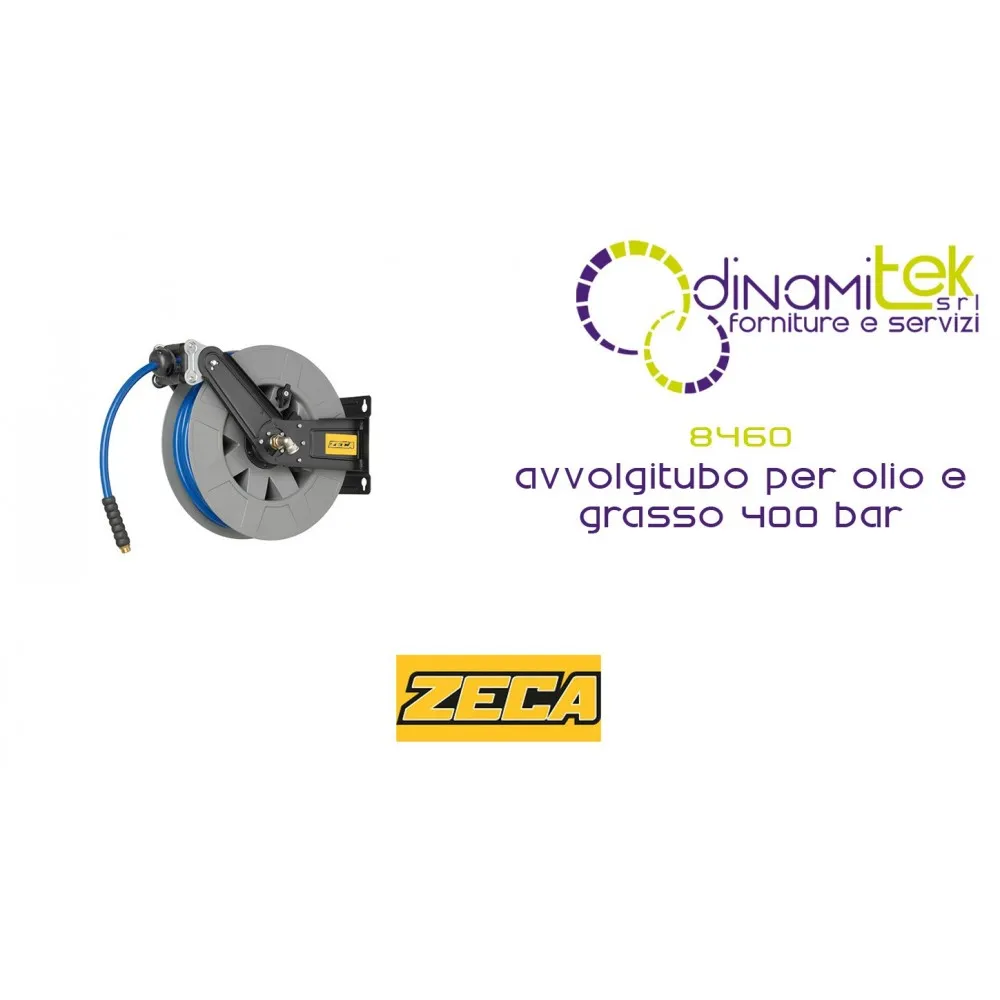

8460 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-WITHOUT HOSE Dinamitek 1
  • 8460 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-WITHOUT HOSE Dinamitek 1
  • 8460 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-WITHOUT HOSE Dinamitek 2
  • 8460 HOSE REEL ZECA SERIES 8400 FOR OIL AND GREASE 400 BAR-WITHOUT HOSE Dinamitek 3

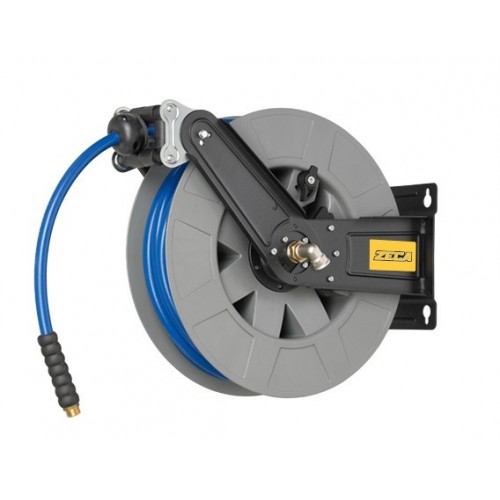

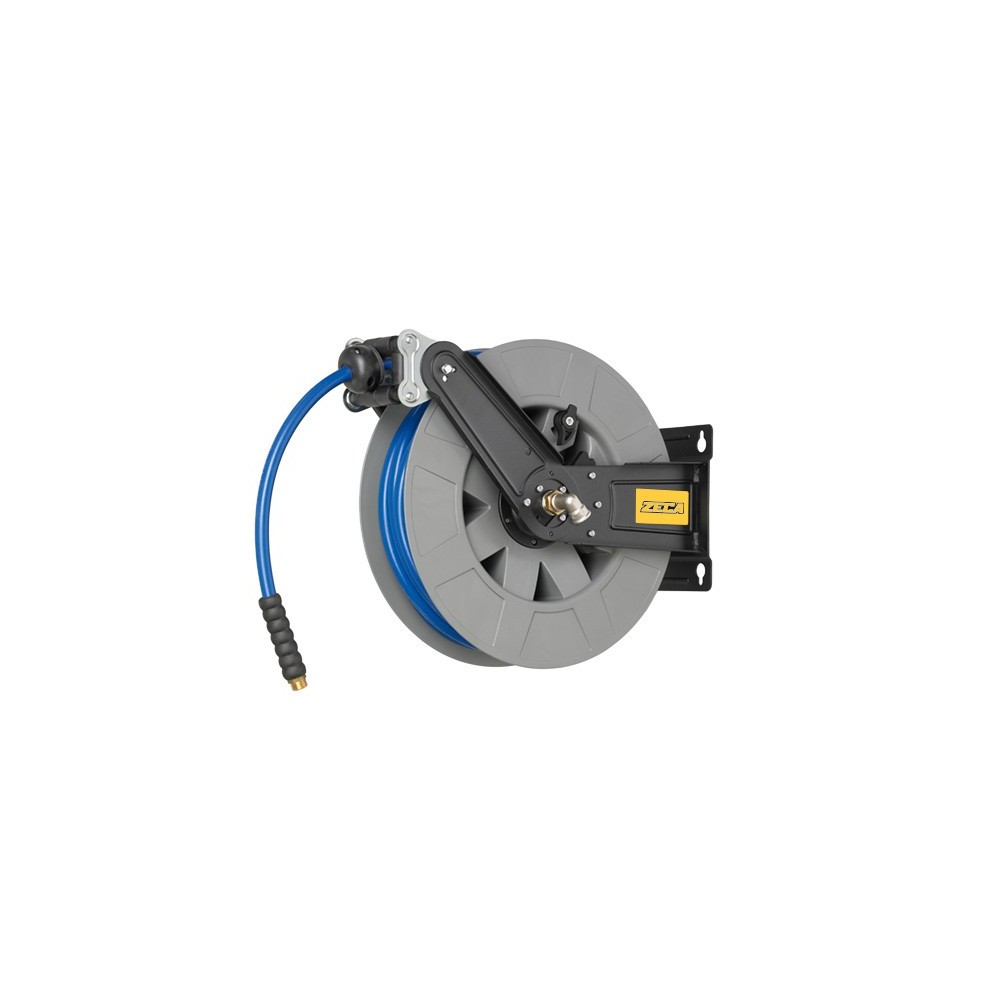

8460 8400 SERIES HOSE REEL FOR OIL AND GREASE 400 BAR WITHOUT HOSE ZECA

OIL - GREASE HOSE REEL 400 Bar 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
213,03 €
Tax included

174,61 € Tax excluded

Quantity
Available product, order it now.

8460 8400 SERIES HOSE REEL FOR OIL AND GREASE 400 BAR Zeca WITHOUT HOSE

High pressure hose reels for aviation, military, nautical, mining, construction, chemical, automotive, and industrial applications
THE 8460 HOSE REEL IS FOR THE TRANSFER OF OIL AND GREASE AT 400 BAR
Technological development and the choice of the best production materials make the 8400 series hose reels the best hose reels in their category.
self-lubricated pipe guide rollers, positionable roller mouth
automatic stop system, adjustable and removable hose stop buffer, stop spring with maximo process technology
ABS coil,
rotary joint without constriction and with low friction coefficient
coil support bushings made of self-lubricating material
adjustable epoxy powder coated steel fixing brackets
joint is of standard type
outlet fitting is made of brass/steel
steel screws
Entrance connection detail:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting
Technical data sheet

Hose reel:
maximum pressure Bar 400
use of fatty oil
fluid temperature

Connections:
3/8” F entry
1/2” F outlet

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8460

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
