8441 HOSE REEL ZECA SERIES 8400 FOR OIL-AND-WATER 200 BAR-HOSE 20-M - DIAM INT PIPE 8 MM Dinamitek 1
  • 8441 HOSE REEL ZECA SERIES 8400 FOR OIL-AND-WATER 200 BAR-HOSE 20-M - DIAM INT PIPE 8 MM Dinamitek 1
  • 8441 HOSE REEL ZECA SERIES 8400 FOR OIL-AND-WATER 200 BAR-HOSE 20-M - DIAM INT PIPE 8 MM Dinamitek 2
  • 8441 HOSE REEL ZECA SERIES 8400 FOR OIL-AND-WATER 200 BAR-HOSE 20-M - DIAM INT PIPE 8 MM Dinamitek 3

8441 HOSE REELS SERIES 8400 FOR OIL AND WATER 180 BAR ZECA PIPE IN 20-M - DIAM INT PIPE 8 MM

HOSE reel OIL - WATER 180 Bar-SERIES 8400.

Bracket in steel painted with epoxy powders.

The standard coupling.

Connector in brass.

Steel bolts and screws.

Shipping cost: Free for
388,81 €
Tax included

318,70 € Tax excluded

Quantity
Available product, order it now.

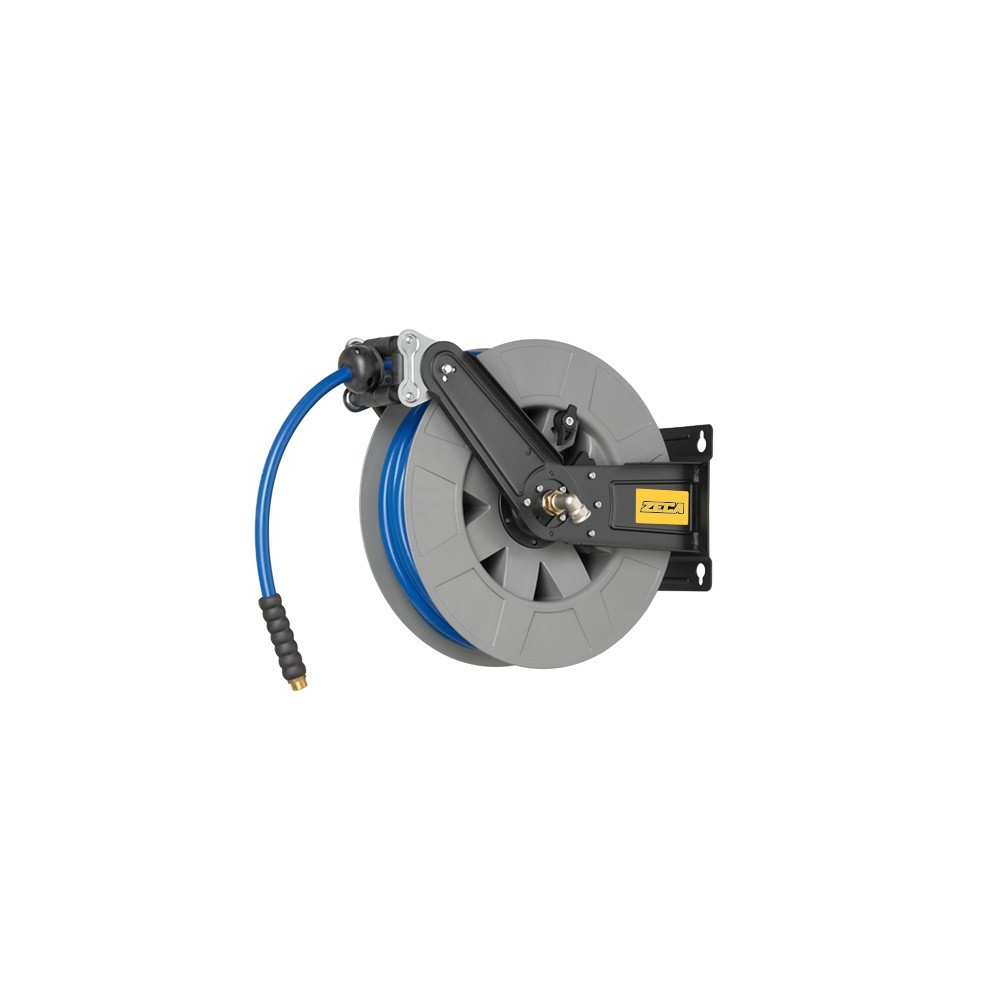

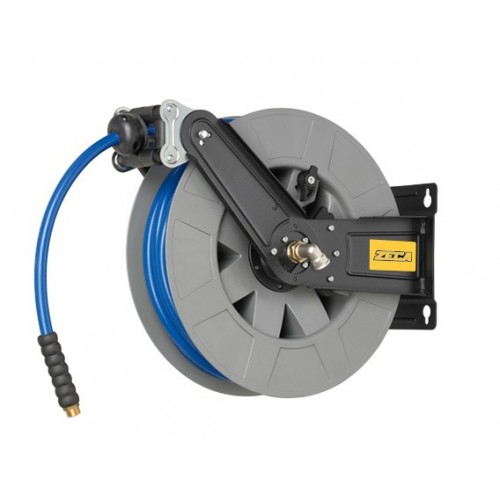

8441 HOSE reels SERIES 8400 FOR OIL AND WATER 180 BAR ZECA PIPE in 20-m - DIAM INT PIPE 8 mm
Great hose reel high pressure for the passage of oil and water. The model 8441 finds application in various industries such as aerospace, military, marine, mining, construction, agriculture, chemical, mechanic, industry, car washes, industrial cleaning.
The HOSE reel 8441 SERVES for THE PASSAGE OF OIL AND WATER AT 200 BAR
Thanks to the automatic stop system of the pipe, you'll work easily. In the event that it is not necessary for the buffer wraps, it is possible to remove it without compromising the use of the hose reel. Always in function of the optimization of the operations of use, the cable reel 8441, is fitted with mouth-to-reels can be positioned: do you and rewind the hose without a hitch many times as you want. Among the facilities that you can adjust, also the buffer wraps can be set at will. The whole series of hose reel 8400 is a high-efficiency, the spring to rewind is made with the technology maximo process. To be more durable, the bracket adjustable mounting of the hose reel is made of steel painted with epoxy powders. The joint is of the standard type. The connector is made of brass/steel and screws in real steel.
The hose reel 8441 is characterized by the advanced technological development:
reels hose guiding self-lubricated
coil ABS,
the rotary joint without bottlenecks and with a low coefficient of friction
bushings supporting the rolls in the material self-lubricating
Data sheet

Hose reel:
max pressure (Bar) 200
use oil water
fluid temperature -15°C/+130°C

Tube:
diameter mm 8 5/16”
length m 20
type EN 857 1SC black

Fittings:
inlet 3/8” F
exit 3/8” F swivel
Detail fitting of entry:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass

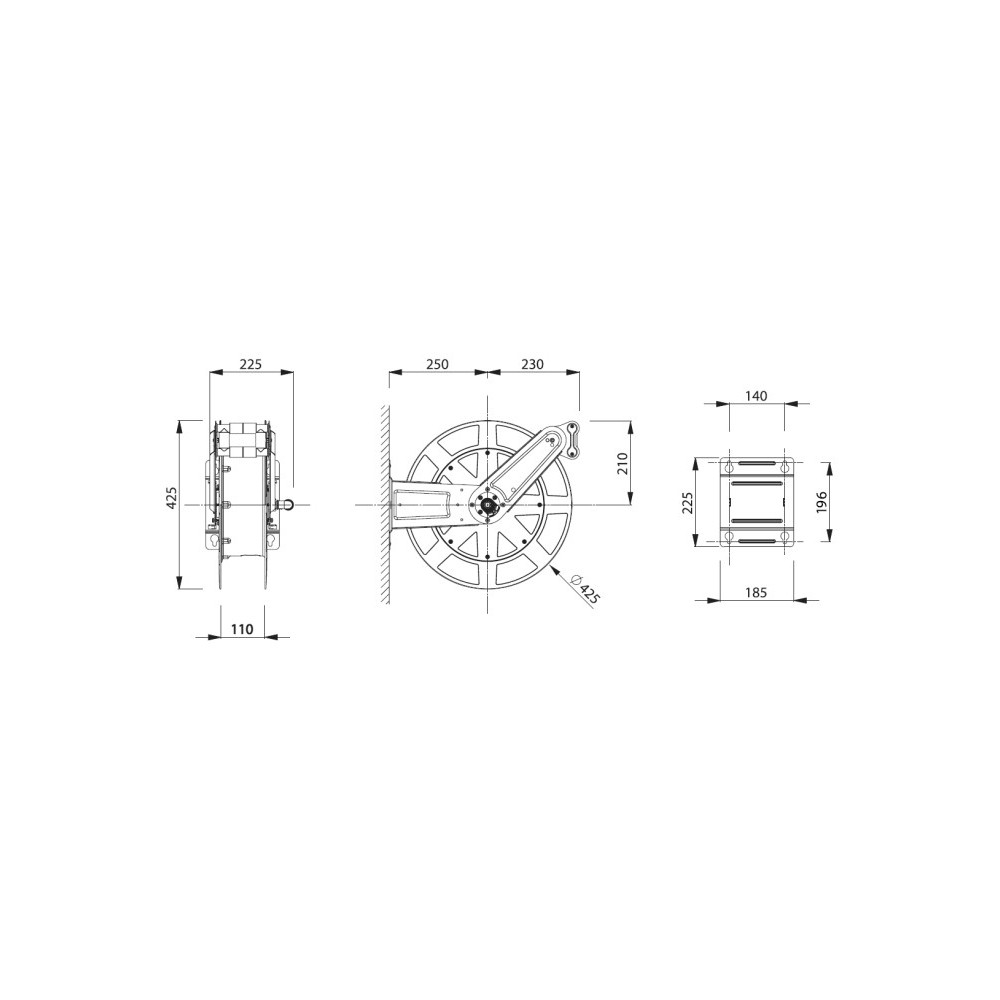

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8441

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
