8441 8400 SERIES HOSE REEL FOR OIL AND WATER 180 BAR HOSE M 20 - TUBE DIAMETER 8 MM ZECA

OIL - WATER HOSE REEL 180 Bar 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
404,7 €
Tax included

331,72 € Tax excluded

Quantity
Available product, order it now.

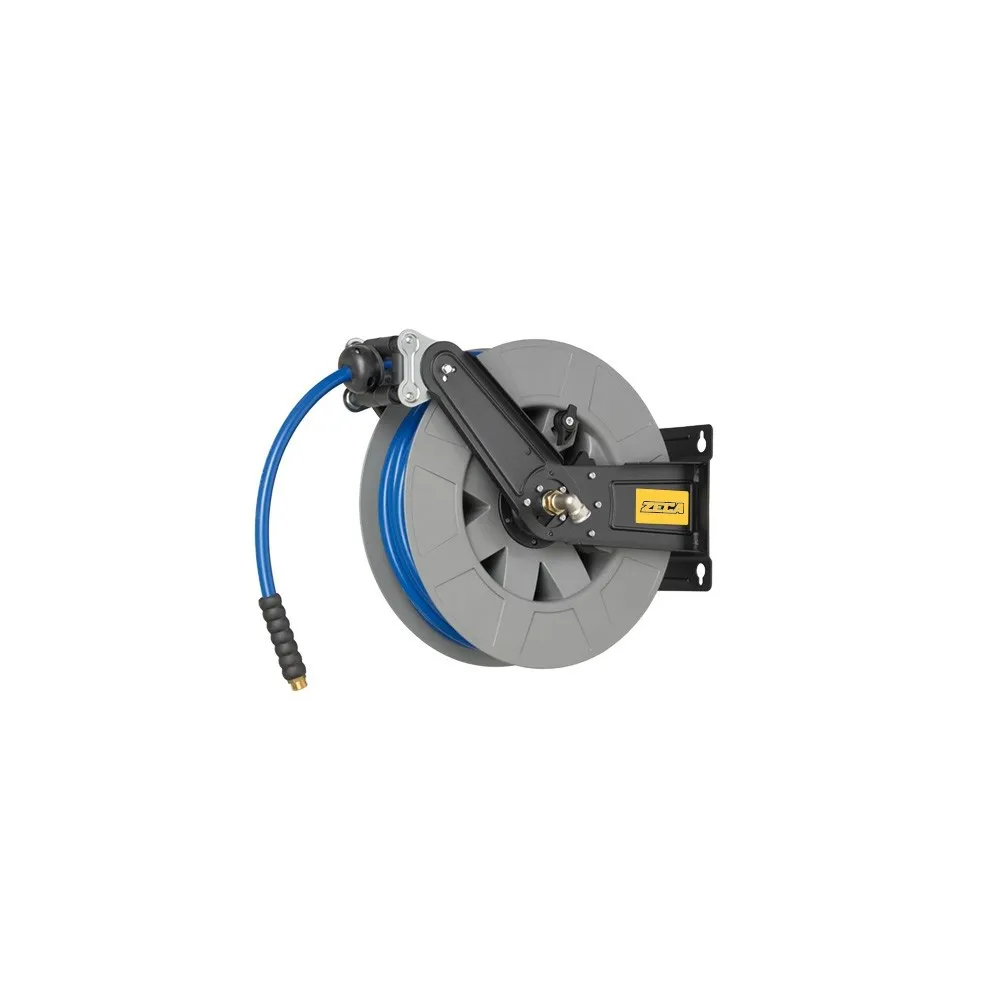

8441 HOSE REEL SERIES 8400 FOR OIL AND WATER 180 BAR Zeca HOSE m 20 - INT DIAM. HOSE 8 mm
Excellent high-pressure hose reel for oil and water. The 8441 model is used in various sectors such as aviation, military, marine, mining, construction, agriculture, chemicals, auto repair shops, industry, car washes, and industrial cleaning.
THE 8441 HOSE REEL IS FOR THE PASSAGE OF OIL AND WATER AT 180 BAR
The automatic hose stop system makes working easier. If the hose stopper isn't needed, it can be removed without compromising the hose reel's usability. To optimize operation, the 8441 reel features a positionable roller nozzle: unwind and rewind the hose smoothly whenever you want. Among the adjustable features, the hose stopper can also be adjusted to your liking. The entire 8400 series of hose reels is highly efficient, with the rewind spring made using Maximo Process technology. For added durability, the hose reel's adjustable mounting bracket is made of epoxy powder-coated steel. The joint is standard. The outlet fitting is made of brass/steel, and the screws are made of real steel.
The 8441 hose reel is characterised by advanced technological development:
self-lubricated pipe guide rollers
ABS coil,
rotary joint without constriction and with low friction coefficient
coil support bushings in self-lubricating material
Technical data sheet

Hose reel:
maximum pressure Bar 180
use oil water
fluid temperature -15°C/+130°C

Tube:
diameter 8 5/16” mm
length 20 m
type EN 857 1SC black

Connections:
3/8” F entry
3/8” F swivel outlet
Entrance connection detail:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for the models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting

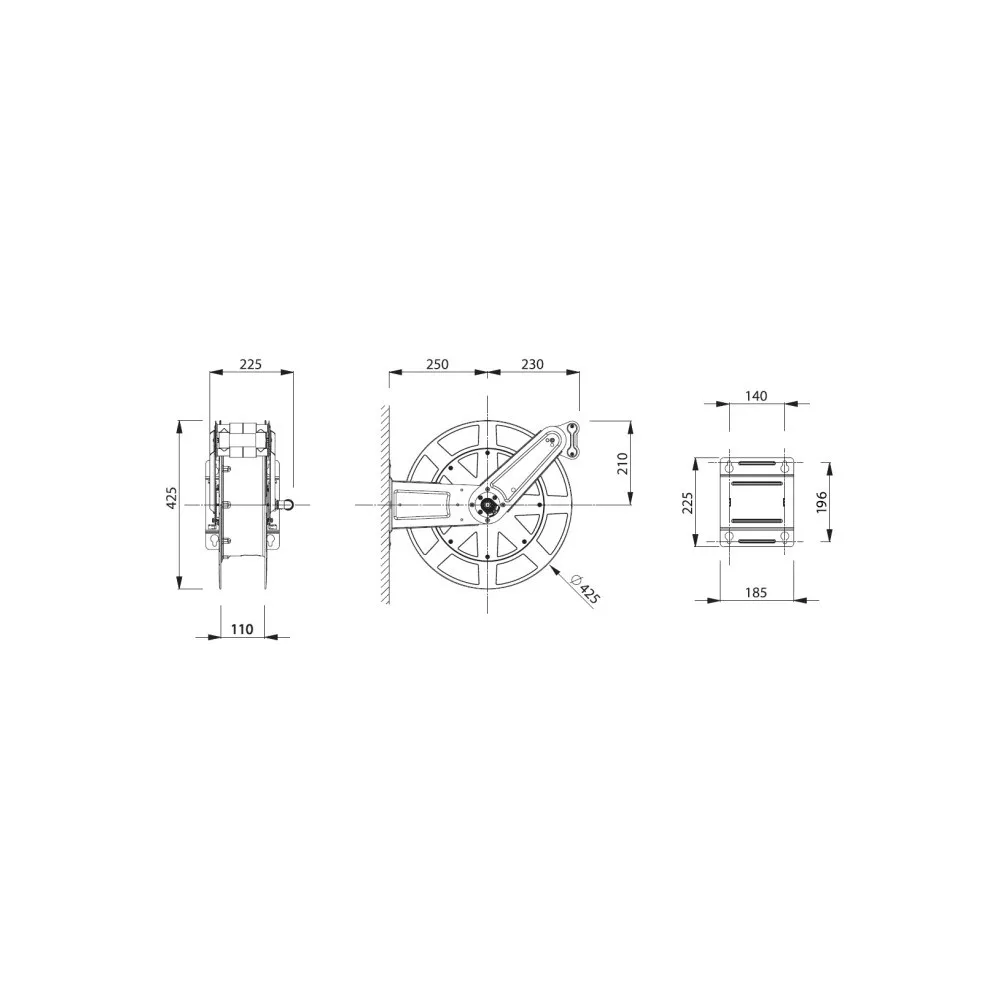

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8441

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
