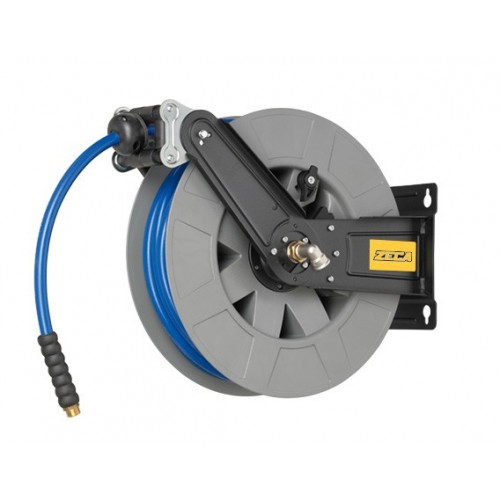

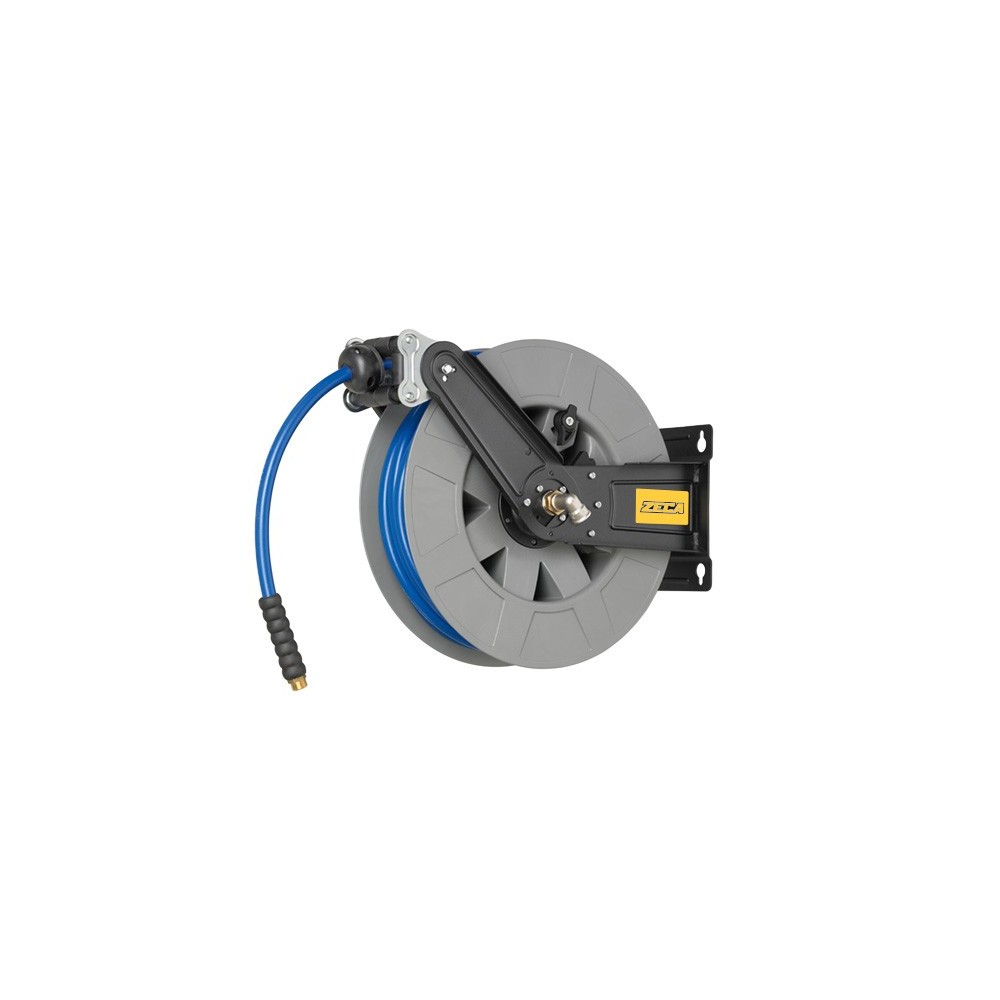

8432 HOSE REELS SERIES 8400 FOR WATER-FOOD INDUSTRY 15 BAR ZECA PIPE M 12 - DIAM INT PIPE 12.5 MM

HOSE reel WATER the 15-Bar SERIES 8400 special for the food industry and large kitchens.

Bracket in steel painted with epoxy powders.

The standard coupling.

Connector in brass.

Steel bolts and screws.

Shipping cost: Free for
353,21 €
Tax included

289,52 € Tax excluded

Quantity
Available product, order it now.

8432 HOSE reels SERIES 8400 FOR WATER 15 BAR ZECA PIPE m 12 - DIAM INT PIPE 12.5 mm
Special model, type PU-FOOD QUALITY certificate according to EU regulation 1935/2004 and regulation EU 10/2011 suitable for contact with food. CAUTION this pipe is not suitable to the passage of liquid food.

The hose reel 8432 is used in the food industry and in kitchens
The HOSE reel 8432 SERVES THE PASSAGE OF WATER TO 15 BAR
Technological development at your service
- coil ABS,
- bushings supporting the rolls in the material self-lubricating
- automatic stop system of the tube
- the buffer wraps, removable and adjustable
- mouth roller can be positioned in different configurations
the roller - hose guiding self-lubricated
- spring rewind technology maximo process
- the rotary joint without bottlenecks and with a low coefficient of friction
- brackets for fixing of the hose reel in varnished steel with epoxy powders
- bracket adjustable
- the standard coupling
- connector in brass/steel
- nuts and bolts in real steel

The construction of the cable drum 8432 is characterized by the choice of materials. In the fitting of output we find:
shaft steel coil
seal in FPM (Viton)
bushing brass
shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass

Data sheet

Hose reel:
max pressure (Bar) 15
use of air
fluid temperature -10°C/+60°C

Tube:
diameter mm 12.5 ½ ”
length m 12
type PU-FOOD QUALITY

Fittings:
inlet ½ ” F
½ ” M

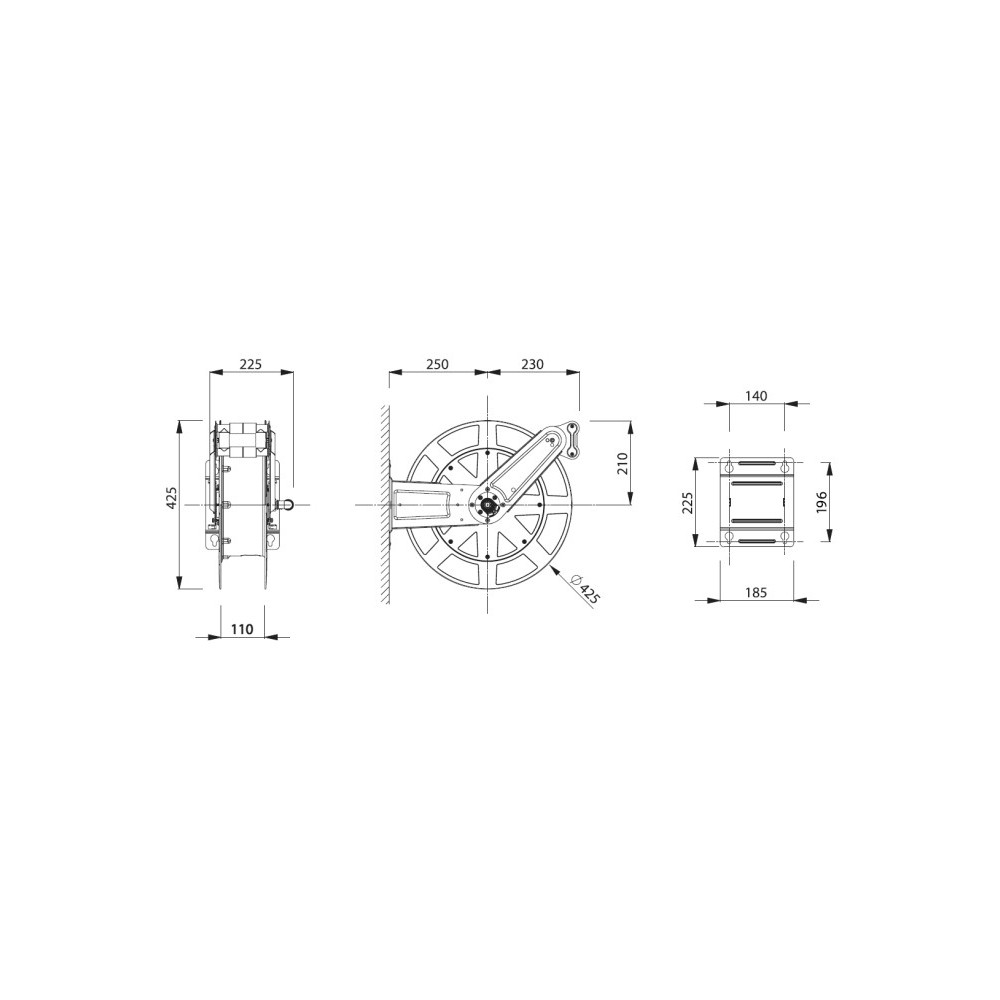

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8432

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
