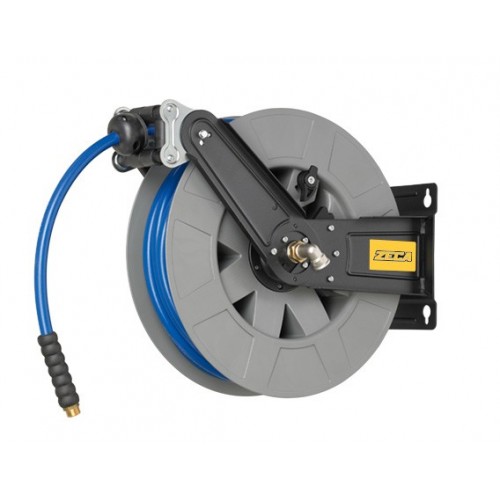

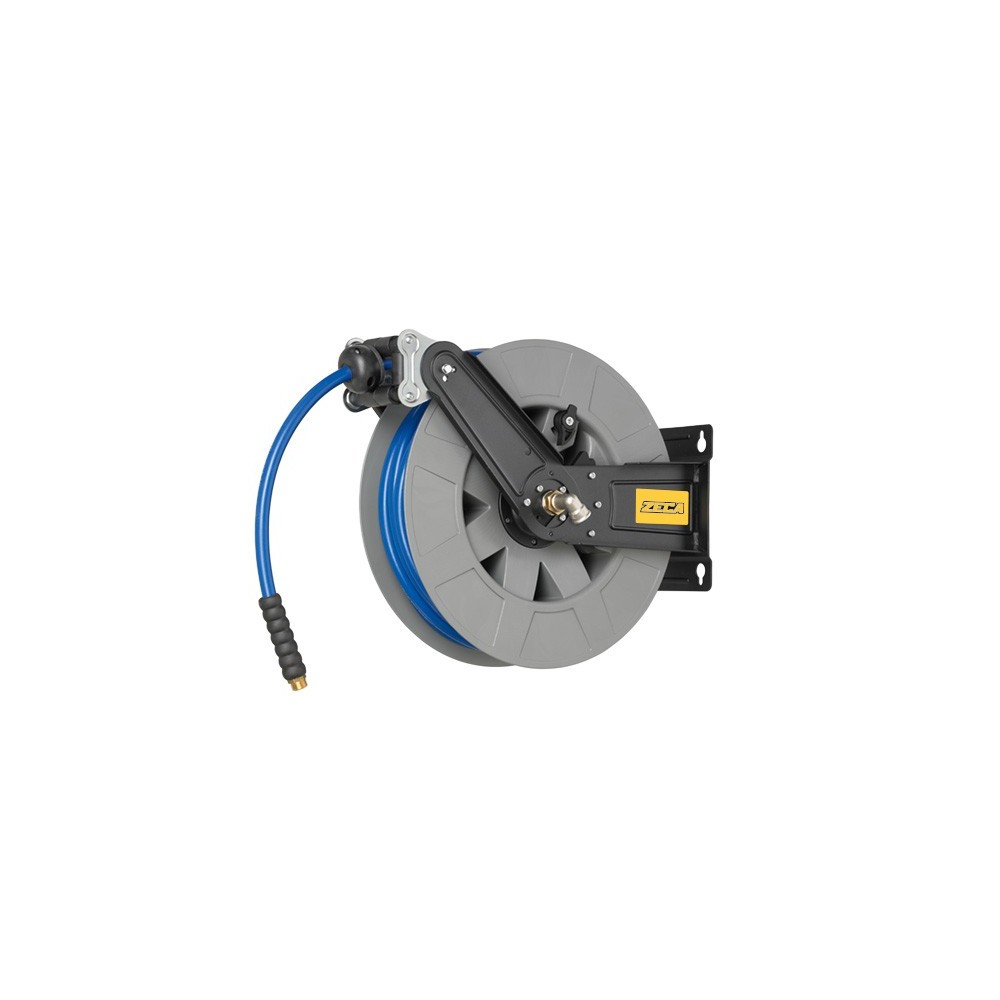

8432 AVVOLGITUBO SERIE 8400 PER ACQUA INDUSTRIA ALIMENTARE 15 BAR ZECA TUBO m 12 - DIAM INT TUBO 12,5 mm

AVVOLGITUBO ACQUA 15 Bar SERIE 8400 speciale per industria alimentare e grandi cucine.

Staffa in acciaio verniciato a polveri epossidiche.

Giunto standard.

Raccordo in uscita in ottone.

Viterie in acciaio.

Shipping cost: Free for
367,46 €
Tax included

301,20 € Tax excluded

Quantity
Available product, order it now.

8432 AVVOLGITUBO SERIE 8400 PER ACQUA 15 BAR ZECA TUBO m 12 - DIAM INT TUBO 12,5 mm
Modello speciale, tipo PU-FOOD QUALITY certificato secondo il regolamento UE 1935/2004 e regolamento UE 10/2011 idoneo al contatto con alimenti. ATTENZIONE questo tubo non è idoneo al passaggio di liquidi alimentari.

L’avvolgitubo 8432 trova impiego nell’industria alimentare e nelle grandi cucine
L’AVVOLGITUBO 8432 SERVE IL PASSAGGIO DI ACQUA A 15 BAR
Sviluppo tecnologico al tuo servizio
- bobina ABS,
- boccole supporto bobine in materiale autolubrificante
- sistema automatico di arresto del tubo
- tampone fermatubo removibile e regolabile
- bocca a rulli posizionabile in diverse configurazioni
- rulli guidatubo autolubrificati
- molla di riavvolgimento tecnologia maximo process
- giunto rotante senza strozzature e con basso coefficiente di attrito
- staffe di fissaggio dell’avvolgitubo in acciaio verniciato a polveri epossidiche
- staffa orientabile
- giunto standard
- raccordo in uscita in ottone/acciaio
- viterie in vero acciaio

La realizzazione dell’avvolgicavo 8432 si caratterizza per la scelta dei materiali. Nel raccordo di uscita troviamo:
albero bobina in acciaio
guarnizione in FPM (Viton)
boccola ottone
albero giunto rotante in acciaio INOX AISI 304 o in ottone per i modelli della gamma che lavorano a bassa pressione
cuscinetto assiale a rulli
ghiera ottone
anello guida stelo in PTFE
raccordo in entrata in ottone

Scheda tecnica

Avvolgitubo:
pressione massima Bar 15
utilizzo aria
temperatura fluido -10°C/+60°C

Tubo:
diametro mm 12.5 ½”
lunghezza m 12
tipo PU-FOOD QUALITY

Raccordi:
entrata ½” F
uscita ½” M

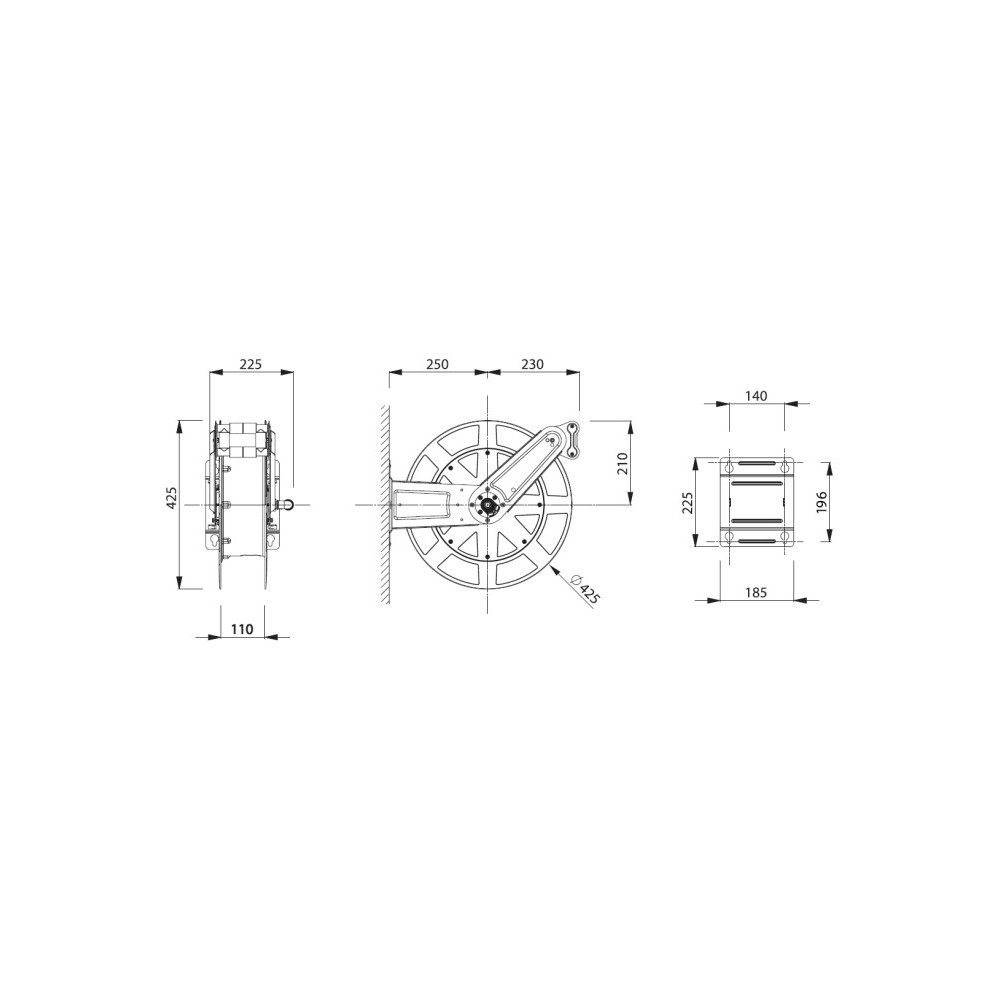

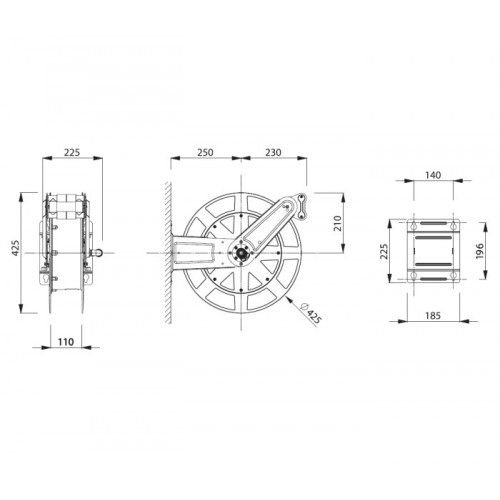

Dimensioni e peso 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8432

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
