8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 1
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 2
  • 8415 HOSE REEL ZECA SERIES 8400 FOR OIL AND DIESEL 15 BAR HOSE M 8 - DIAM INT PIPE 19 MM Dinamitek 3

8415 8400 SERIES HOSE REEL FOR DIESEL AND OIL 15 BAR HOSE M 8 - INNER DIAMETER HOSE 19 MM ZECA

DIESEL-OIL HOSE REEL 15 Bar 8400 SERIES.

Epoxy powder coated steel bracket.

Standard joint.

Brass outlet fitting.

Steel screws.

Shipping cost: Free for
353,22 €
Tax included

289,52 € Tax excluded

Quantity
Available product, order it now.

8415 HOSE REEL SERIES 8400 FOR DIESEL AND OIL 15 BAR Zeca HOSE m 8 - INT DIAM. HOSE 19 mm

The 8400 range is designed to serve a variety of applications and accommodate all types of fluids. Hose reels vary in hose type, inlet and outlet connections, and, most importantly, in the type of fluid, pressure, and operating temperature they support.

Fluids: air, high pressure water, hot water, oil, diesel, Ad Blue
Fields of application: refueling, aviation, military, nautical, mining, construction, agriculture, chemical, auto repair, industry, car washes, industrial cleaning, food industries and large kitchens.
ISO EN 12100 CE 2006/42/CE standards and specific models directive 2014/34/UE II 2GD c IIB T4/T135°CX Type Examination Certificate Number IMQ 14 ATEX 009 X Compliant with EN 13463-1:2009; EN 13463-5:2011 standards (yellow hexagonal label with Ex acronym).
THE 8415 HOSE REEL IS FOR THE TRANSFER OF OIL AND DIESEL AT 15 BAR
Distinguishing features of an 8400 series hose reel
automatic pipe stop system
roller mouth positionable in different configurations
adjustable pipe stopper
rewind spring with maximo process technology
fixing bracket in epoxy powder coated steel and adjustable
joint is of standard type
brass/steel outlet fitting
steel screws.
The 8400 Zeca series hose reels are technologically advanced. They feature self-lubricating hose guide rollers, the reel is made of ABS, the rotary joint is free of constriction and operates with a low friction coefficient, and the reel support bushings are made of self-lubricating material.
Technical data sheet

Hose reel:
maximum pressure Bar 15
use of diesel and oil
fluid temperature -10°C/+60°C

Tube:
diameter 19 3/4” mm
length 8 m
PVC-PU type

Connections:
¾” M entry
¾” F swivel outlet

The choice of materials is what makes the difference. Specifically, the outlet fitting is made up of the following:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting

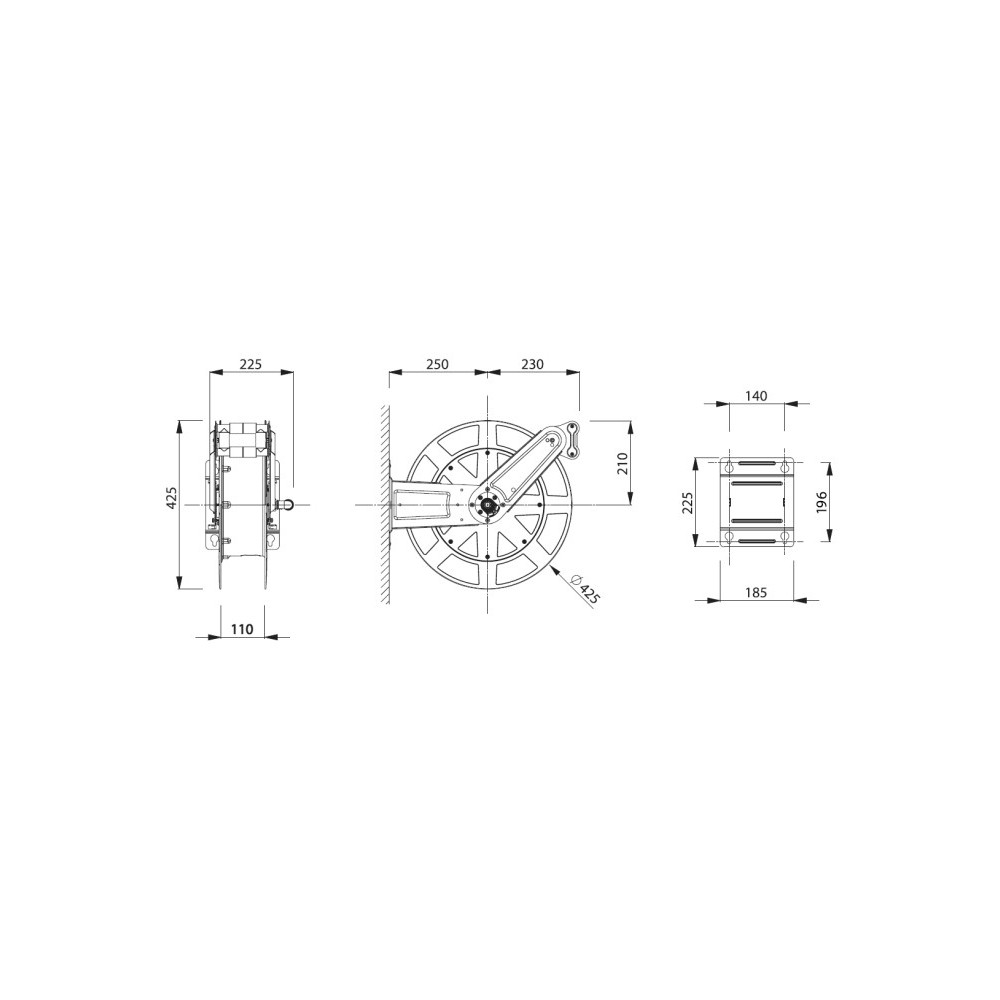

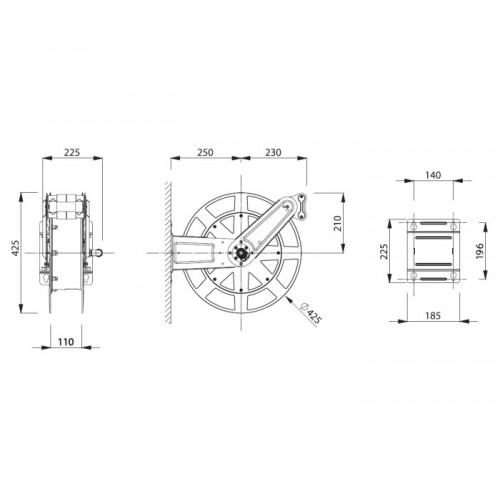

Dimensions and weight 550x505x270 mm, 10 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8415

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
