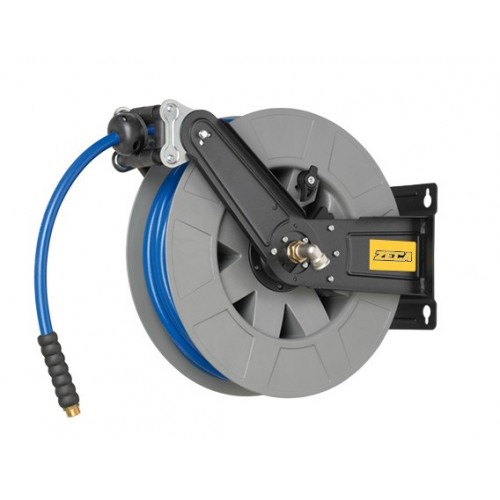

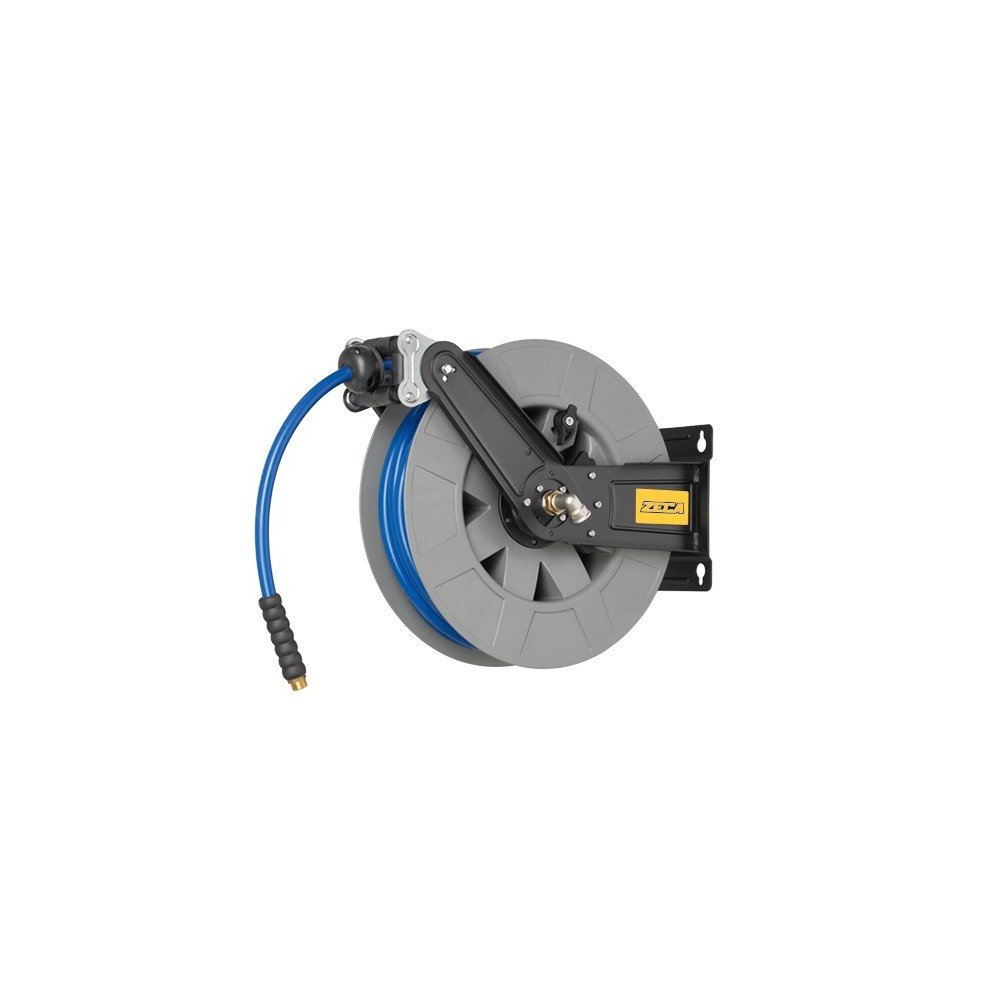

8412 HOSE reels SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE in 20-m - DIAM INT PIPE 6 mm
The fields of application for the hose reels series 8400 are the most diverse due to the wide variety of fluids for which they are made.
Fields of application: fuel, aviation, military, marine, mining, construction, agriculture, chemical, mechanic, industry, car washes, industrial cleaning, food industry and large kitchens.
Fluids: air, water, high-pressure, hot water, oil, diesel, Ad Blue.
For each type of fluid, zeca offers a hose reel 8400 specific. The hose reel differ by type of pipe, for fittings of inlet and outlet and especially for the type of fluid, pressure and temperature that support.
The HOSE reel 8412 SERVES THE PASSAGE OF AIR AND WATER 20 BAR
The hose reels series 8400 zeca are equipped with automatic stop system to have the out hose to the desired length. The pad bracket is made in such a way that it can be removed, if the requirement of production requires it. To facilitate the use of the hose reel, the mouth of the rollers is positionable in different configurations, and winding of the pipe is always done in a quick and easy way. You can also adjust the buffer wraps while the spring rewind is made with the technology maximo process
To be more durable, the mounting bracket is in steel painted with epoxy powders. The bracket itself is adjustable for ease of installation and use of the hose reel. The joint is of the standard type. The connector is made of brass/steel and the screws are steel.
ISO EN 12100 EC 2006/42/EC Some of the models have to Conform to directive 2014/34/EU II 2GD c IIB T4/T135°C X (Number of Certificate of Type Examination IMQ 14 ATEX 009 X according to Standards EN 13463-1:2009; EN 13463-5:2011, marked with a yellow label hex where inside there is the mark Ex
And development and technology. Every detail of the hose reels series 8400 is optimized in favor of your work:
reels hose guiding self-lubricated, coil, ABS, swivel, without constrictions, and with a low coefficient of friction, the bushings supporting the rolls in the material self-lubricating
Data sheet
Hose reel:
max pressure (Bar) 20
use of air and water
fluid temperature -15°C/+50°C
Tube:
diameter mm 6 1/4”
length m 20
type SAE 100R6
Fittings:
inlet ½ ” F
output ¼ ” M
Detail fitting of entry:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass

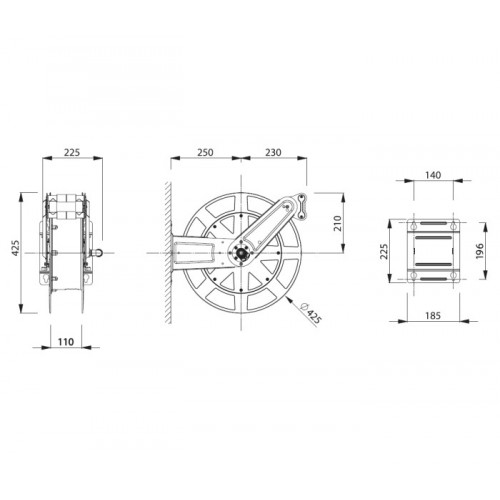

Size and weight 550x505x270 mm, 10 Kg
