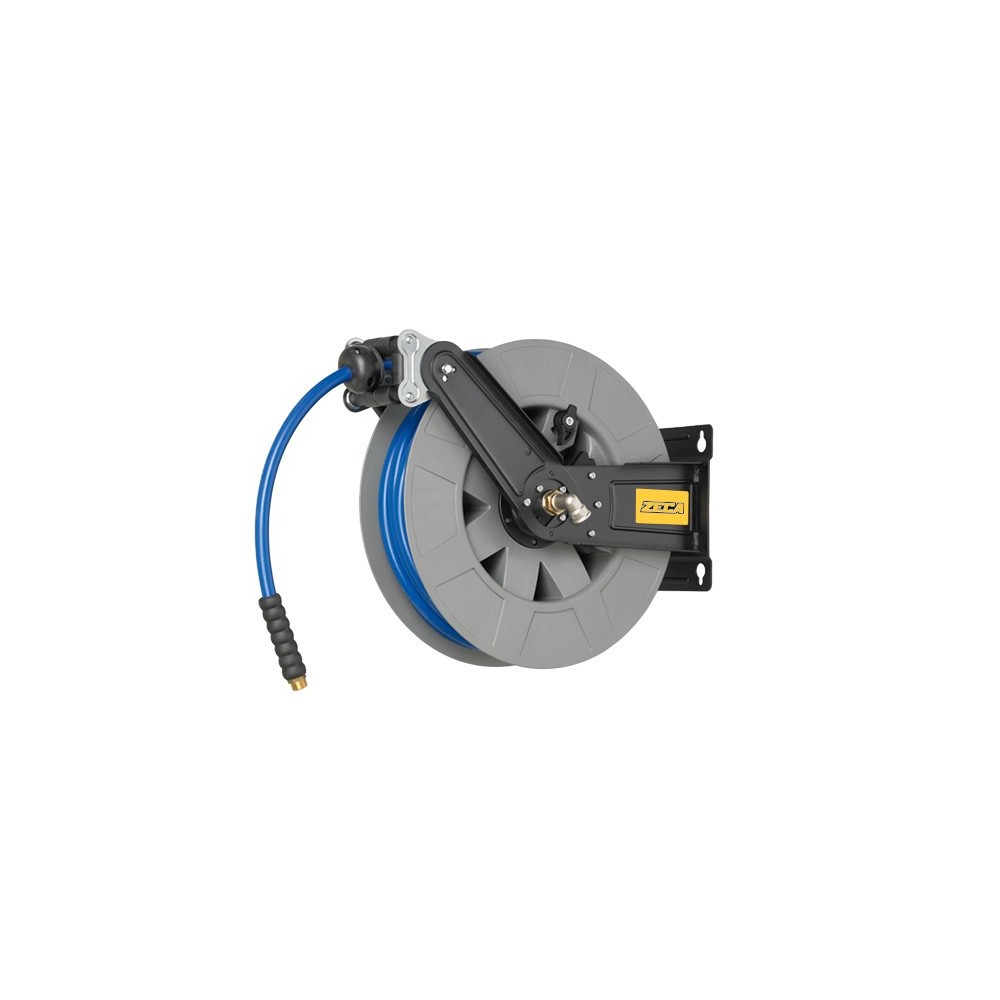

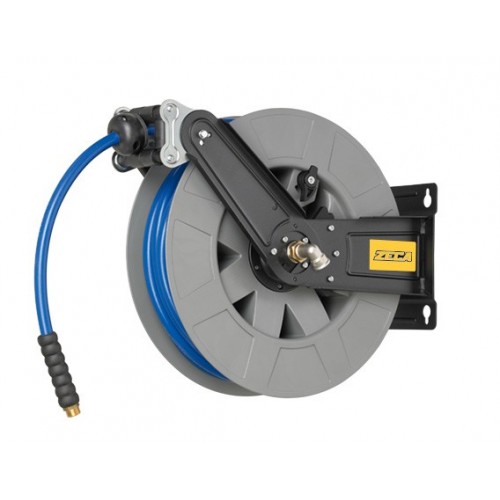

8412 HOSE REEL SERIES 8400 FOR AIR AND WATER 20 BAR Zeca HOSE m 20 - INT DIAM. HOSE 6 mm
The fields of application for the 8400 series hose reels are the most diverse thanks to the wide variety of fluids for which they are designed.
Fields of application: refueling, aviation, military, nautical, mining, construction, agriculture, chemical, auto repair, industry, car washes, industrial cleaning, food industries and large kitchens.
Fluids: air, high pressure water, hot water, oil, diesel, Ad Blue.
For each type of fluid, Zeca offers a specific 8400 hose reel. Hose reels differ by hose type, inlet and outlet connections, and above all, by the type of fluid, pressure, and operating temperature they support.
THE 8412 HOSE REEL IS FOR THE PASSAGE OF AIR AND WATER AT 20 BAR
The 8400 Zeca series hose reels are equipped with an automatic stop system to ensure the hose is unrolled to the desired length. The hose stopper is designed to be removable if production requirements require it. To facilitate use of the hose reel, the roller mouth can be positioned in different configurations: hose winding and unwinding are always quick and easy. The hose stopper can also be adjusted, while the rewind spring is made with Maximo process technology.
For added durability, the mounting bracket is made of epoxy powder-coated steel. The bracket itself is swiveling for easier installation and use of the hose reel. The joint is standard. The outlet fitting is brass/steel, and the screws are steel.
ISO EN 12100 CE 2006/42/CE Standards Some models comply with Directive 2014/34/EU II 2GD c IIB T4/T135°CX Type Examination Certificate Number IMQ 14 ATEX 009 X Compliant with Standards EN 13463-1:2009; EN 13463-5:2011, marked with the yellow hexagonal label containing the Ex acronym
Development and technology. Every detail of the 8400 Series hose reel is optimized for your work:
Self-lubricating hose guide rollers, ABS reel, swivel joint without constriction and with low friction coefficient, reel support bushings in self-lubricating material
Technical data sheet
Hose reel:
maximum pressure Bar 20
use of air and water
fluid temperature -15°C/+50°C
Tube:
diameter 6 1/4” mm
length 20 m
SAE 100R6 type
Connections:
½” F entry
¼” M outlet
Entrance connection detail:
steel coil shaft
FPM (Viton) gasket
Brass bushing
Rotating joint shaft in AISI 304 stainless steel or brass for models in the range that work at low pressure
axial roller bearing
brass ring
PTFE stem guide ring
brass inlet fitting

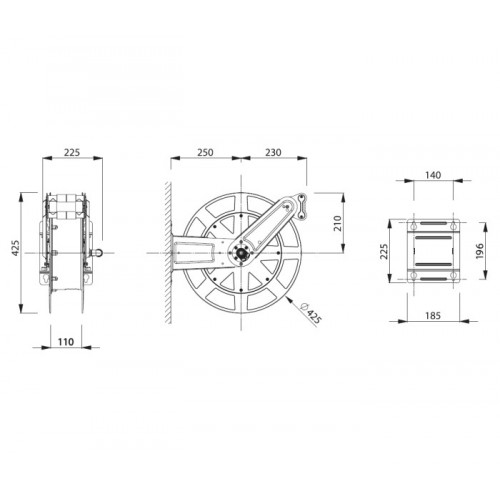

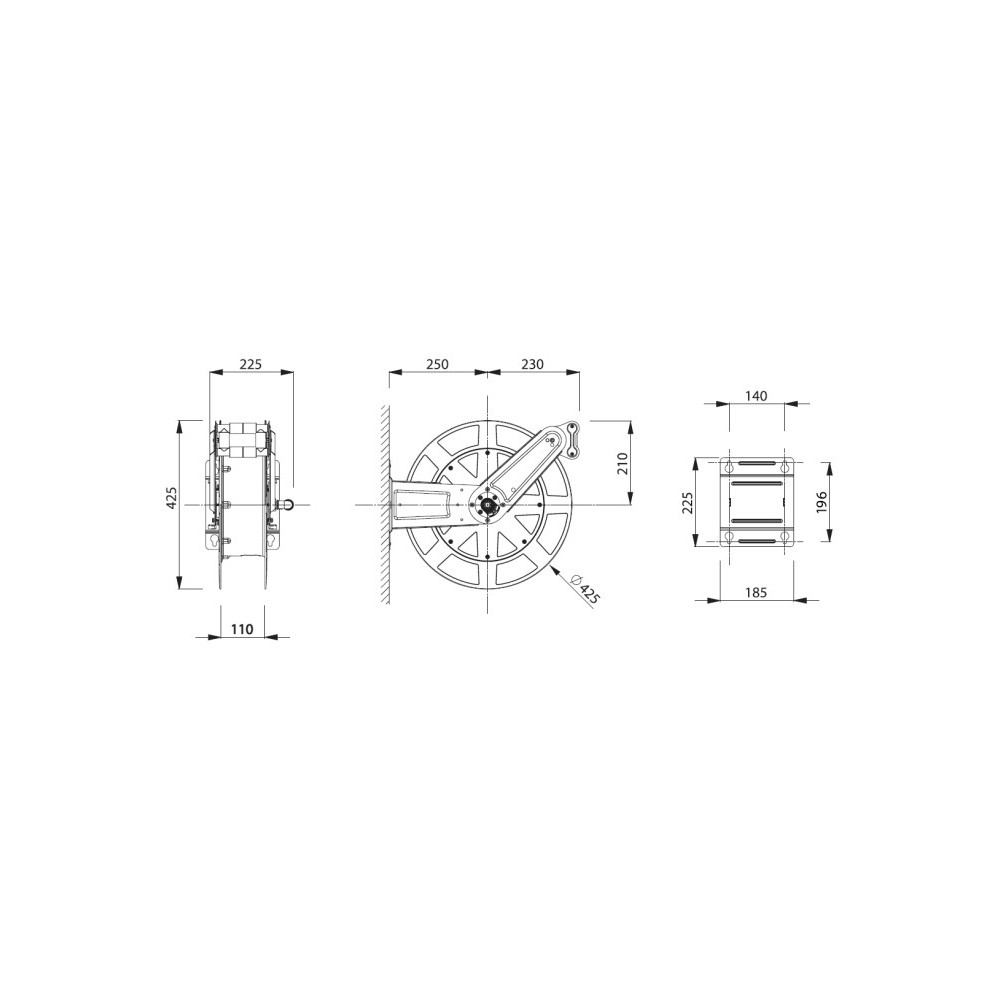

Dimensions and weight 550x505x270 mm, 10 kg
