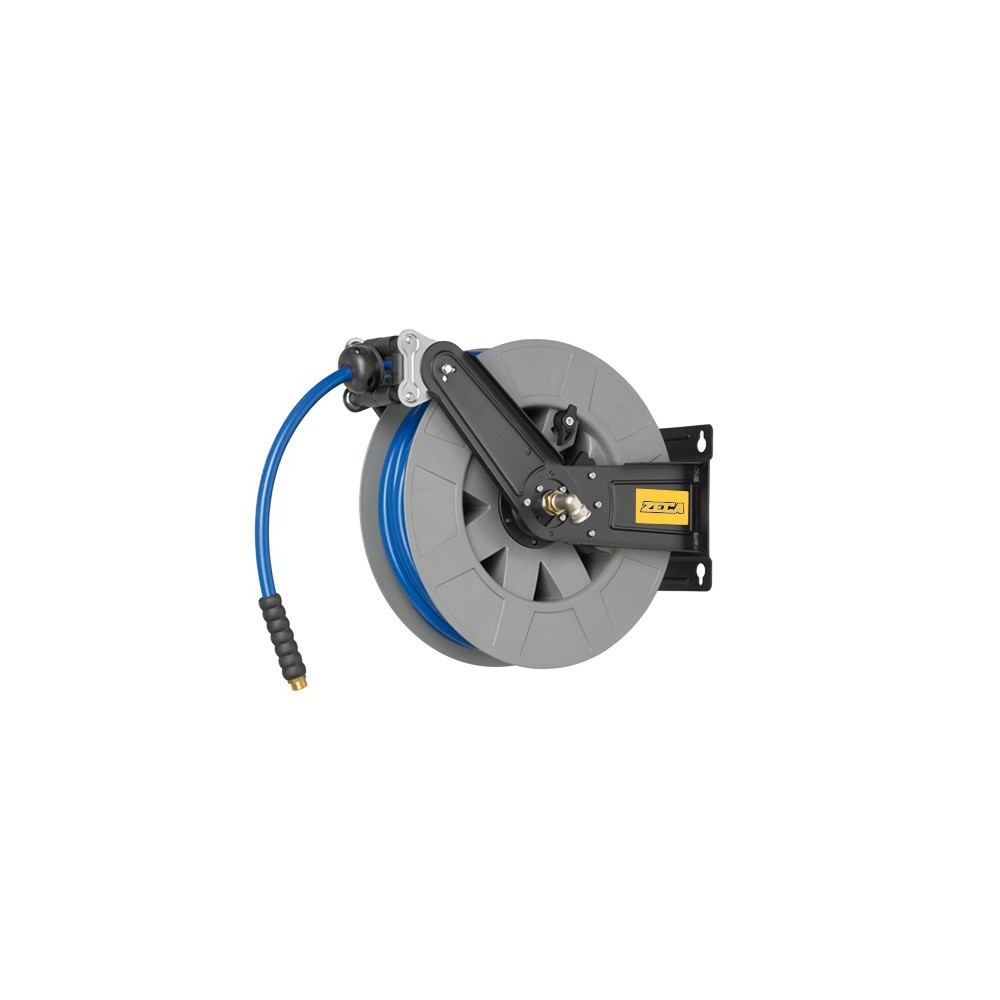

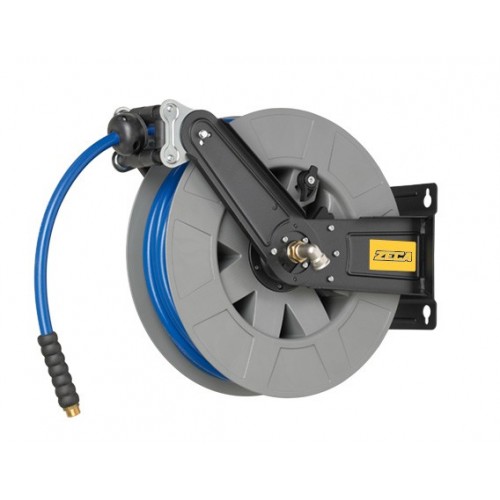

8402 HOSE reels SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE in 20-m - DIAM INT PIPE 8 mm
The series of hose reel 8400 zeca serves a range of fluids are very wide. The fields of application for the hose reels series 8400 are manifold: fuel, aviation, military, marine, mining, construction, agriculture, chemical, mechanic, industry, car washes, industrial cleaning, food industry and large kitchens. For each type of fluid, zeca offers a hose reel 8400-specific, designed to optimize the passage of the fluid itself. The hose reel differ by type of pipe, for fittings of inlet and outlet and especially for the type of fluid, pressure and temperature that support.
With the hose reels series 8400 you will be able to move air, high pressure water, hot water, oil, diesel, Ad Blue. Some models are in Conformity to directive 2014/34/EU II 2GD c IIB T4/T135°C X (Number of Certificate of Type Examination IMQ 14 ATEX 009 X according to Standards EN 13463-1:2009; EN 13463-5:2011, you can recognize by the yellow label hex where inside there is the abbreviation Ex.
The HOSE reel 8402 SERVES THE PASSAGE OF AIR AND WATER 20 BAR
Technically the hose reel 8400 are very advanced and manufactured with the utmost care and attention to details. A small, but very useful detail to improve your use of the hose reel and the whole of your working day: the automatic stop system of the tube zeca lets you have the hose retainer to the desired length. The pad bracket is removable, according to the needs.
The mouth-to-reels, then it can be installed in different configurations, so the movement of the tube is facilitated, both outgoing and incoming: you'll never be hampered nor in the phase of unwinding or rewinding of the pipe. The pad bracket is adjustable. The hose reel 8400 offers many opportunities to customize and adapt the use to the needs of the processing to the needs of your workshop. The spring rewind is made with the technology maximo process
The fastening brackets of the hose reels are made of steel, epoxy powder painted, so they are much more durable, they are also adjustable in order to adapt to any type of installation. The joint is of the standard type. The connector is made of brass/steel and screws in real steel.
Development and technology:
reels hose guiding self-lubricated
coil ABS,
the rotary joint without bottlenecks and with a low coefficient of friction
bushings supporting the rolls in the material self-lubricating
Detail fitting of entry:
shaft steel coil
seal in FPM (Viton)
Bushing brass
Shaft rotary joint of AISI 304 STAINLESS steel or brass for the models in the range which operate at low pressure
roller thrust bearing
ring brass
ring rod guide, PTFE
the fitting on the inlet side in brass
Data sheet
Hose reel:
max pressure (Bar) 20
use of air and water
fluid temperature -15°C/+50°C
Tube:
diameter mm 8 5/16”
length m 20
type SAE 100R6
Fittings:
inlet ½ ” F
output ¼ ” M
ISO EN 12100 EC 2006/42/EC

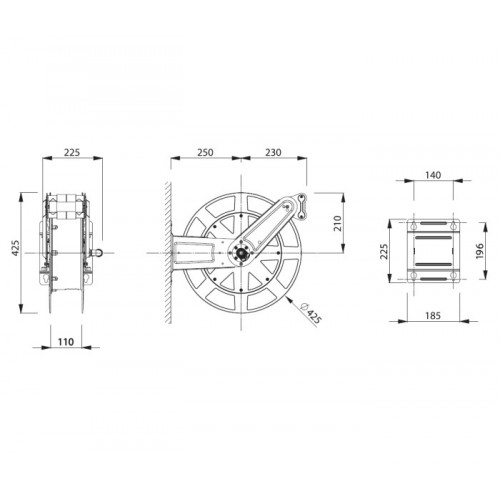

Size and weight 550x505x270 mm, 10 Kg
