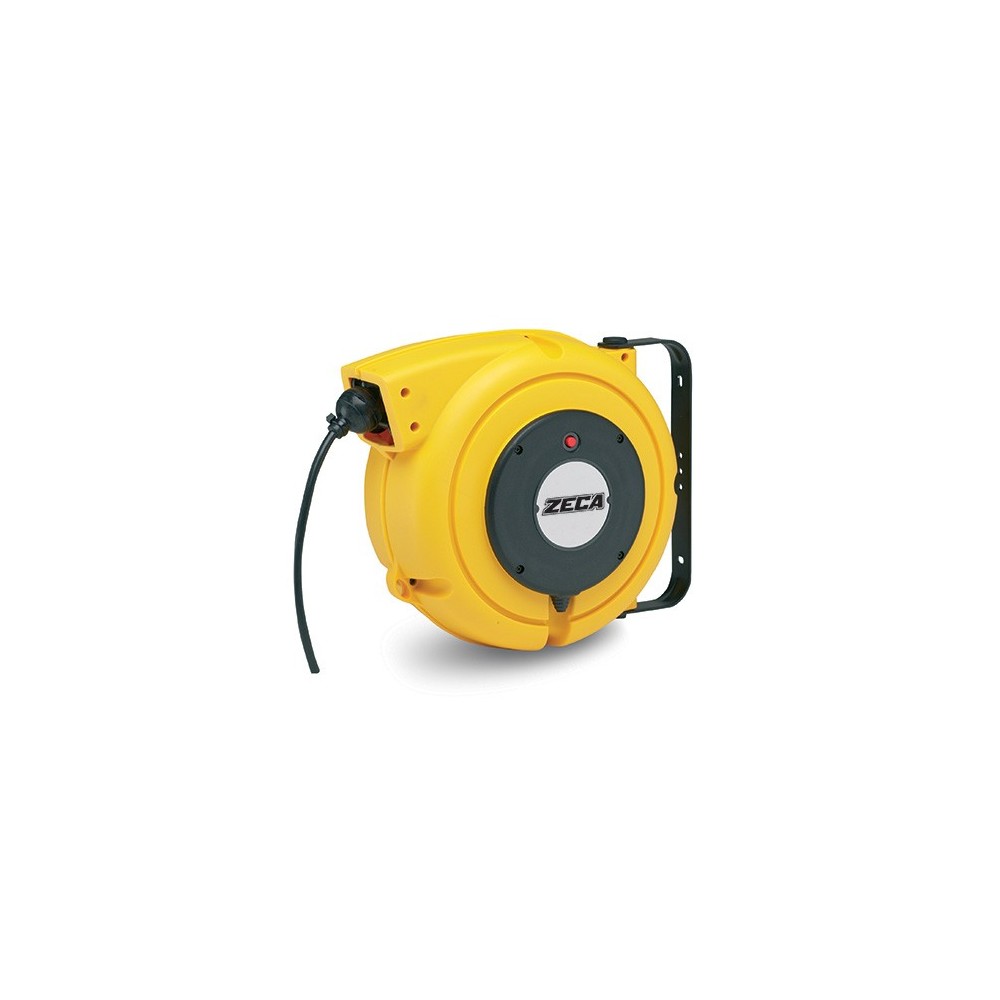

4325 RNF 4000 SERIES INDUSTRIAL CABLE REEL, 7+1 M, 2.5 MM² CABLE SECTION ZECA
Automatic spring-loaded industrial cable reel with 8 m of H07 RN-F 3G2.5 mm² rubber cable with high chemical-mechanical resistance and thermal protector Zeca Series 4000 Art. 4325 RNF.
The Zeca Art. 4325 RNF industrial cable reel (belonging to the 4000 Series) is the professional version equipped with an oil- and wear-resistant H07 RN-F rubber cable, designed for the safe distribution of electrical energy in workshops, construction sites and industrial environments subject to high mechanical stress.
- 8 Meters of H07 RN-F Neoprene Rubber Cable (3G2.5 mm²): robust three-wire cable with a cross-section of 2.5 mm² (7 m wound on a reel + 1 m of free section) with an external diameter of 11.5 mm and a maximum insulated voltage of up to 750V.
- Electrical capacity up to 2.5 kW with thermal circuit breaker: delivers 1.9 kW with the cable wound and 2.5 kW with the cable fully unwound at 230V, with integrated thermal protector against overloads.
- Shockproof Structure with Rack Stop: shockproof plastic body with roller cable guide mouth and stop device that can be disengaged every 50 cm.
- IP42 Protection Rating and 2.5 kV Insulation: patented Zeca collector with brushes and double earth contact for optimal electrical continuity.
Technical Features and Performance of the Zeca Industrial Cable Reel Art. 4325 RNF
The Zeca Art. 4325 RNF automatic cable reel is the ideal solution for those requiring a retractable industrial extension cord with a highly flexible neoprene rubber cable that is highly resistant to oils, hydrocarbons, and abrasion. Developed on the proven structure of the Zeca 4000 Series, it guarantees maximum operational reliability and protection of electrical contacts.
Unlike standard PVC versions, the H07 RN-F cable guarantees a maximum nominal voltage of 750V and an increased diameter of 11.5 mm. The internal spring-loaded retraction system is coordinated by a roller cable guide and a rack-and-pinion stop (which can be excluded if continuous traction is required). The built-in thermal circuit breaker ensures the protection of the system and the user by interrupting the flow of current in the event of overheating.

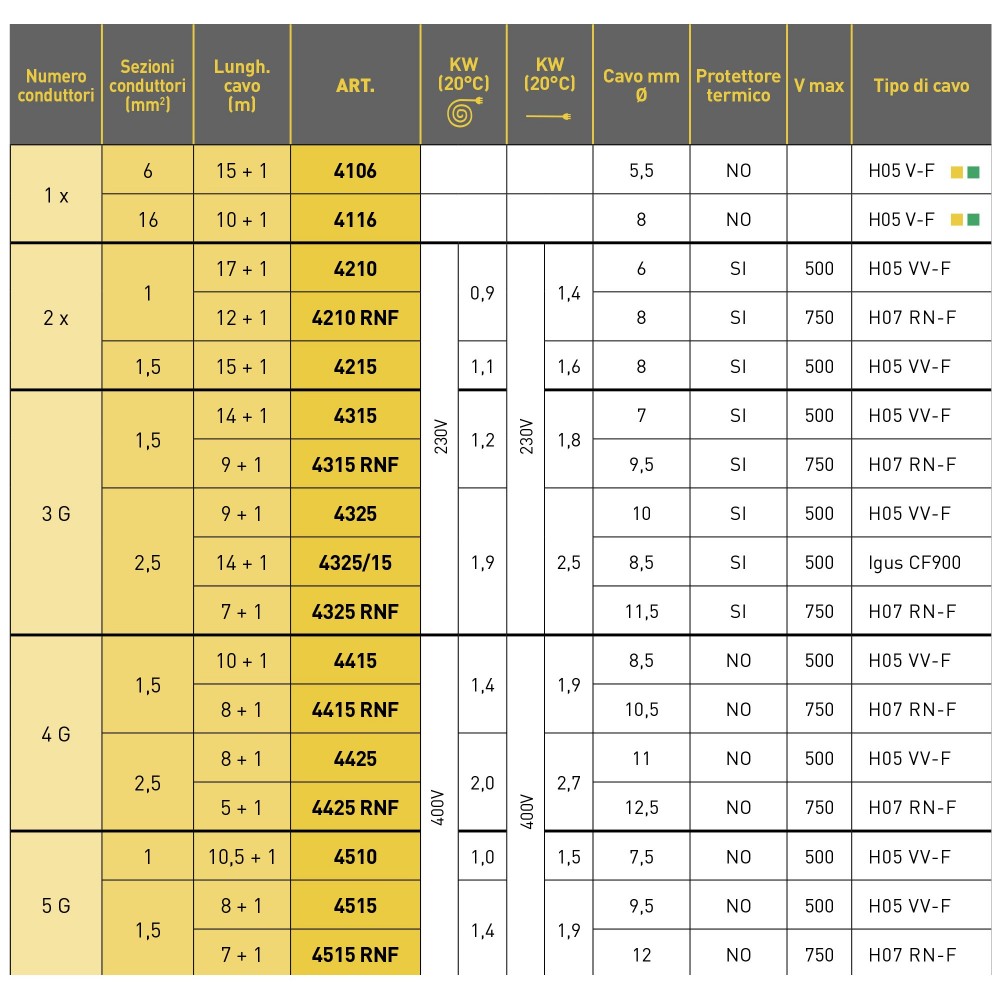

Detailed Technical Data Sheet
- Product Code / Article: Art. 4325 RNF
- Manufacturer / Brand: Zeca SpA
- Series: 4000 Series / Industrial
- Product Type: Automatic spring-loaded industrial cable reel with rubber cable
- Degree of Protection: IP42
- Total Cable Length: 8 meters (7 m on reel + 1 m power supply section)
- Number of Conductors and Cable Section: 3 G x 2.5 mm²
- Cable Type and Quality: Neoprene Rubber H07 RN-F
- External Cable Diameter: 11.5 mm
- Nominal and Maximum Voltage: 230 V (V max 750 V)
- Electrical Rating and Power (@20°C):
- Wrapped cable: 1.9 kW @ 230V (8.26 A)
- Unwound cable: 2.5 kW @ 230V (10.86 A)
- Thermal Protector Circuit Breaker: Present (YES)
- Collector Isolation Voltage: 2.5 kV
- Construction and Functional Specifications:
- Shockproof plastic structure
- Roller cable guide mouth
- Rack and pinion stop device every 50 cm (disengageable)
- Double earth contact
- Sliding contacts with collector ring and brushes
- Adjustable wall bracket
- Operating Ambient Temperature: -5 °C / +50 °C
- Packaging Dimensions and Weight: 335 x 310 x 185 mm / Weight 5.0 kg
- Conformity and Directives: Directives 2014/35/EU, 2006/42/EC, 2011/65/EU, EN 61242, EN 60335-1, TÜV NORD Baumuster geprüft, CE
ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929
Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.
Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.
The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.
The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.
Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.
Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
