4325 4000 SERIES INDUSTRIAL CABLE REEL, 9+1 M, 2.5 MM² CABLE SECTION ZECA

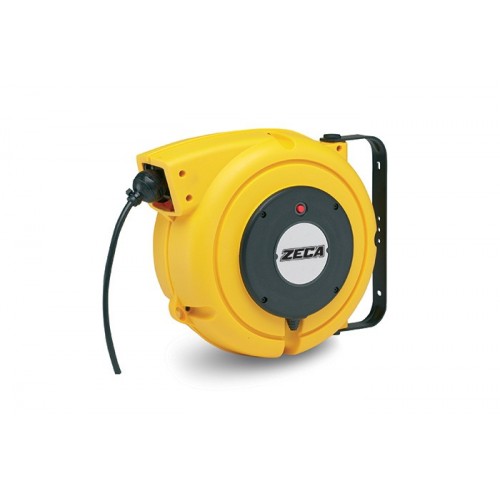

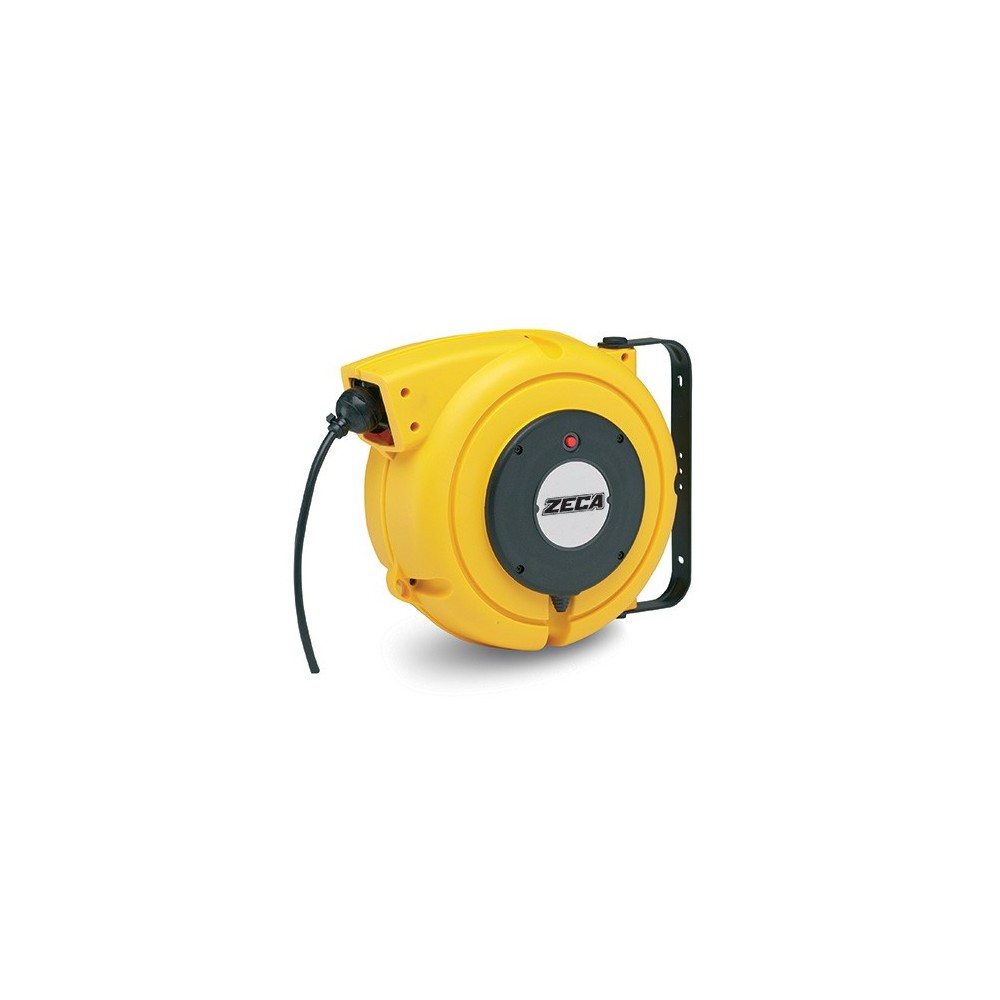

Automatic spring-loaded industrial cable reel with 10 m of 3G2.5 mm² PVC cable and thermal protector Zeca Series 4000 Art. 4325.

The Zeca Art. 4325 industrial cable reel (part of the 4000 Industrial Series) is a high-performance, self-winding power supply system designed by Zeca SpA for workshops, construction sites, and industrial plants. Equipped with a total of 10 meters of 2.5 mm² three-wire cable, it can handle high current flows while keeping the workstation tidy and safe.

  • 10 metres of PVC cable (3G2.5 mm²): consisting of 9 m of cable wound on an internal reel plus 1 m of free power section with a 2.5 mm² cross-section and an external diameter of 10 mm.
  • Electrical capacity up to 2.5 kW with thermal circuit breaker: guarantees a power of 1.9 kW (8.26 A) with the cable wound and 2.5 kW (10.86 A) with the cable fully unwound at 230V, with integrated thermal protector against overloads.
  • Shockproof Structure with Rack Stop: rigid body in shock-resistant plastic with roller cable guide mouth and stop device that can be disengaged every 50 cm.
  • IP42 Protection Rating and 2.5 kV Insulation: patented Zeca electrical collector with sliding brushes and double earth contact for optimal conduction continuity.
Shipping cost: Free for
173,59 €
Tax included

142,29 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Industrial Cable Reel Art. 4325

The Zeca Art. 4325 automatic cable reel for industrial use is the standard version with 2.5 mm² PVC cable of the 4000 Zeca Series. Designed to withstand continuous power consumption of up to 2.5 kW with the cable fully unwound, it is the ideal tool for powering power tools, machinery and professional equipment in production and maintenance departments.

The cable rewinds smoothly thanks to the high-resistance internal spring, guided by a roller mouth that reduces mechanical wear. The rack-and-pinion locking mechanism stops the cable from sliding at the desired length and can be easily disabled if continuous cable tension is preferred. The built-in thermal circuit breaker protects the system and the operator by interrupting power in the event of overheating.

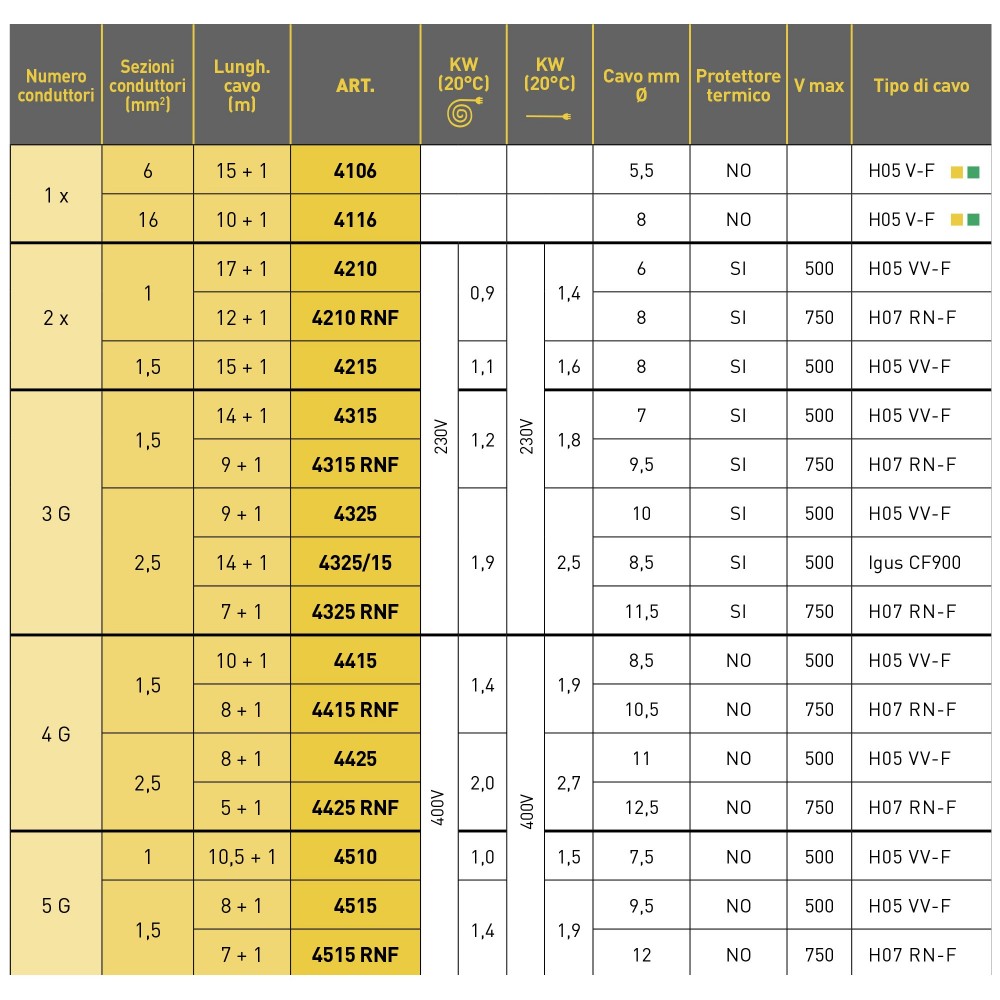

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4325
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series / Industrial
  • Product Type: Automatic spring-operated industrial cable reel
  • Degree of Protection: IP42
  • Total Cable Length: 10 meters (9 m on reel + 1 m power supply section)
  • Number of Conductors and Cable Section: 3 G x 2.5 mm²
  • Cable Type: PVC
  • Cable Outer Diameter: 10 mm
  • Nominal and Maximum Voltage: 230 V (V max 500 V)
  • Electrical Rating and Power (@20°C):
    • Wrapped cable: 1.9 kW @ 230V (8.26 A)
    • Unwound cable: 2.5 kW @ 230V (10.86 A)

  • Thermal Protector Circuit Breaker: Present (YES)
  • Collector Isolation Voltage: 2.5 kV

  • Construction and Functional Specifications:
    • Shockproof plastic structure
    • Roller cable guide mouth
    • Rack and pinion stop device every 50 cm (disengageable)
    • Double earth contact
    • Sliding contacts with collector ring and brushes
    • Adjustable wall bracket

  • Operating Ambient Temperature: -5 °C / +50 °C
  • Packaging Dimensions and Weight: 335 x 310 x 185 mm / Weight 5.0 kg
  • Conformity and Directives: Directives 2014/35/EU, 2006/42/EC, 2011/65/EU, EN 61242, EN 60335-1, TÜV NORD Baumuster geprüft, CE
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
