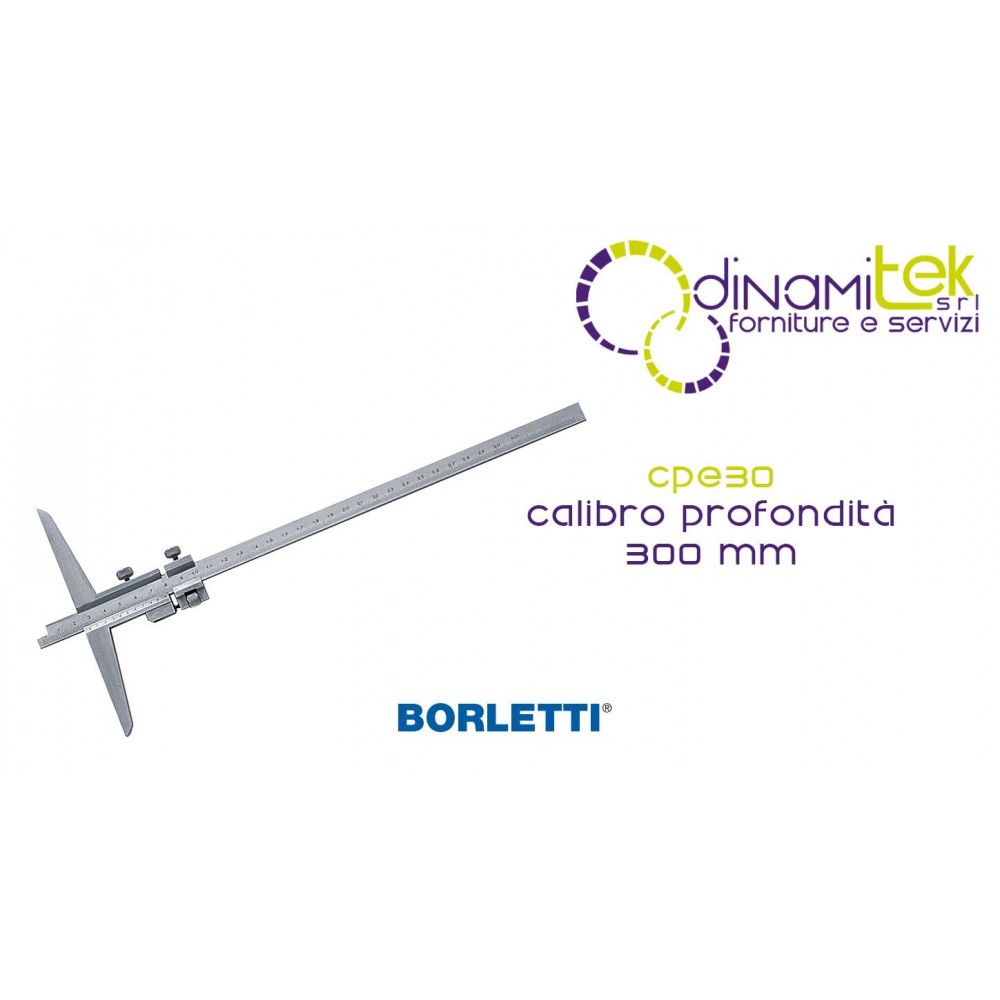

CPE30 DEPTH GAUGES 300MM BORLETTI

The borletti depth gauge (Art. CPE30) is the ideal instrument for mechanical measurements requiring high fiftieth-degree sensitivity. Made entirely of hardened stainless steel with a single-piece structure, it offers a measuring range of 300 mm . Thanks to the micrometric adjustment device and upper screw locking, it allows for accurate and stable measurements, ensuring maximum reliability in the workshop and quality control laboratories.

Shipping cost: €15.00 for
101,19 €
Tax included

82,94 € Tax excluded

Quantity
Available product, order it now.

Analogue Precision and Metrological Reliability

The CPE30 represents an excellent solution for those who prefer traditional analog readout combined with the stability of high-end materials. Designed to withstand the wear and tear typical of industrial environments, this caliber stands out for its smooth mechanics and clear graduated scale.

Technical Features and Strengths

  • Monoblock Construction: The graduated rod and slider are made from a single block of hardened stainless steel, ensuring structural rigidity that prevents bending during measurement.
  • Easy Reading: The scale is matte chrome-plated to eliminate light reflections and improve contrast when reading the vernier.
  • Precision Setup: Integrates a micrometric adjustment device that allows infinitesimal movements of the slider, facilitating exact positioning on the bottom of the surface to be measured.
  • Measurement Stability: Equipped with a vernier locking system via an upper screw, essential for fixing the detected value before consultation.
  • Reference Standards: The instrument is built and tested in compliance with the strict DIN 862 and UNI 6906 standards, guaranteeing certified precision tolerances.

Areas of Application

Essential for mechanical operators, inspection personnel, and maintenance technicians. The 100 mm support base allows for stable positioning even on large-diameter holes, making it versatile for depth measurement in any type of mechanical component.

Technical Reference Data

Characteristic Detail
Product Code Art. CPE30
EAN Code 8032819129728
Measuring Field 300 mm
Nonius reading 0.02 mm (Fiftieth)
Scale Length 350 mm
Base Support Dimensions 100 mm
Material Hardened stainless steel


CPE30
