Precision and Reliability in Boring Control

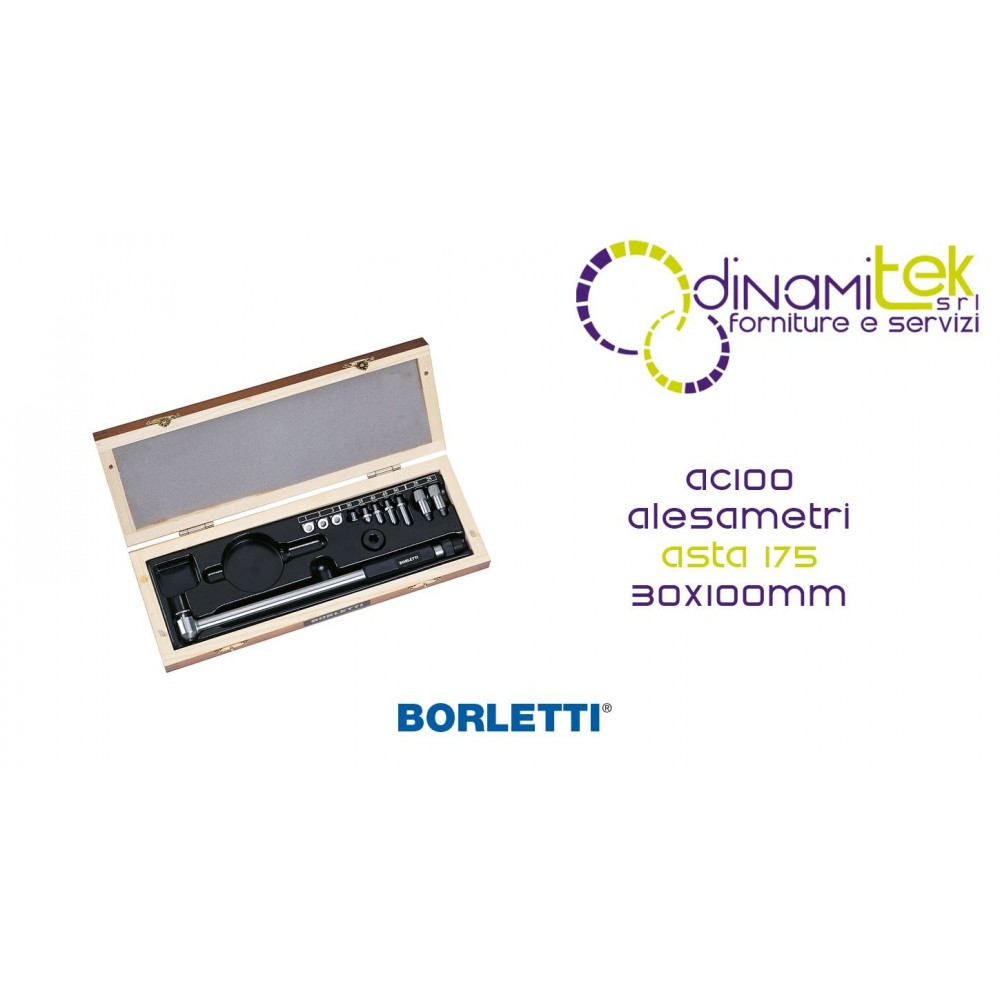

The AC100 article represents a professional solution for internal dimensional verification [1]. The series is designed to offer maximum durability over time thanks to the use of high-resistance materials and ergonomic features that facilitate the operator's work in the workshop.
Technical Features and Functionality
- Superior Contact Mechanics: The tool is equipped with a series of interchangeable extensions with contact tips in chrome steel, treated to reach a hardness of 62/64 HRC , ensuring minimal wear even after intensive use.
- Thermal Stability: The rod is equipped with a special heat-insulating handle that protects the instrument from thermal expansion caused by contact with the hands, maintaining the precision of the survey unchanged.
- Automatic Centering: It has steel centering brackets that allow the instrument to automatically position itself correctly on the diameter, eliminating the uncertainties of manual positioning.
- Measuring Versatility: With a measuring range covering diameters from 30 to 100 mm and a maximum depth of 175 mm , it is suitable for a wide range of mechanical components.
Areas of Application
Essential in engine overhauls, cylinder production, and any industrial process where the geometric conformity of the bores (absence of taper or ovality) is a critical requirement for the quality of the finished product.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | Art. AC100 |
| EAN Code | 803281912665 |
| Measuring Field | Ø 30 ÷ 100 mm |
| Max Measurable Depth | 175 mm |
| Contact Tip Hardness | 62/64 HRC |
| Auction Material | Fully chromed steel |
| Category | Bore gauges |
Equipment Included:
- Series of interchangeable extensions.
- Wooden box for safe and tidy storage.
