125 MM X 22 MM 3M™ VARIOUS GRITS (CF 10 PCS) 566A FLAT FLAP DISCS

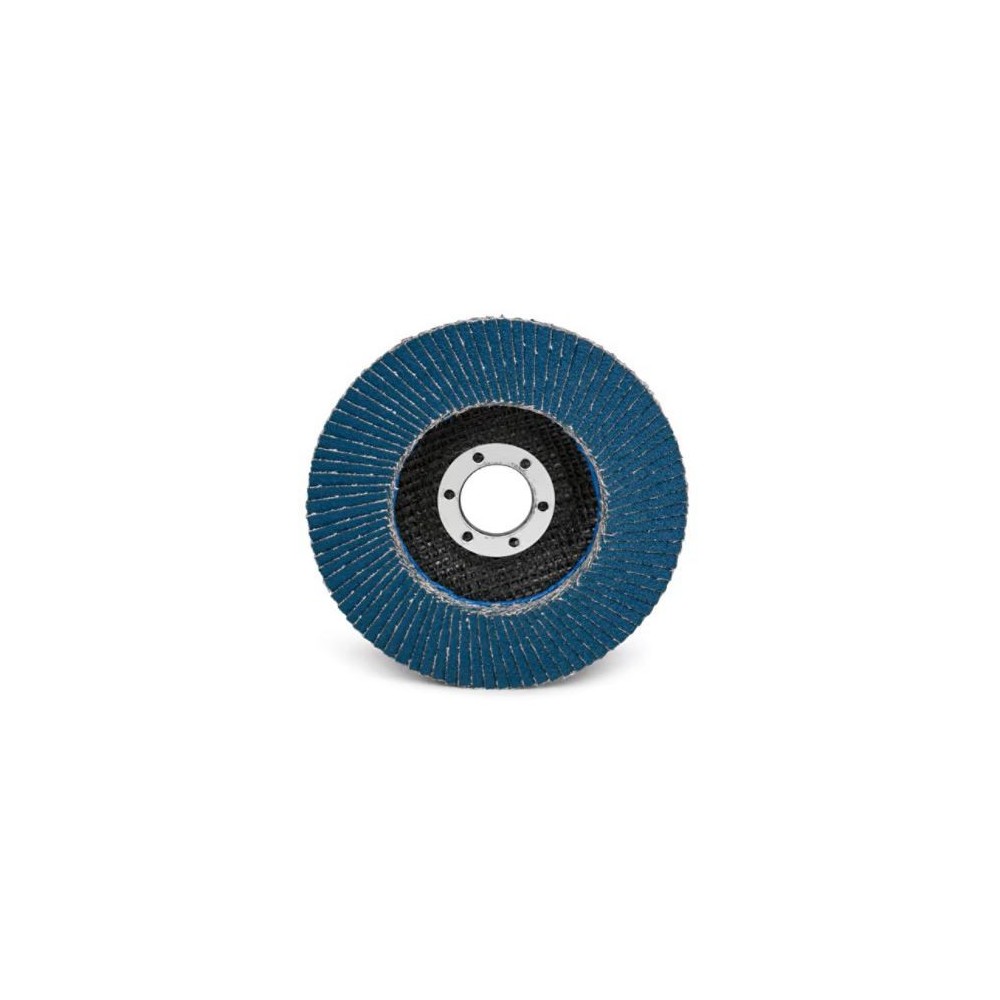

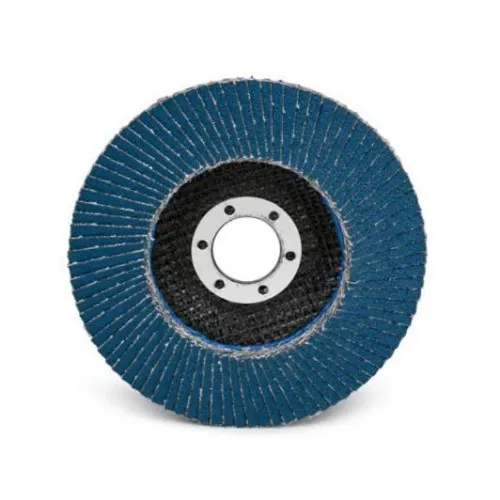

3M™ 566A Flat Flap Discs – Ø 125 mm x 22 mm (Type 27)

The 3M™ 566A model represents a versatile and economical solution for metal fabrication applications requiring high removal rates and a consistent finish in short times.

Advantages and Technical Features

• Alumina-Zirconia (AZ) Abrasive: This synthetic mineral self-fractures during use, continuously generating new, sharp cutting edges. Compared to aluminum oxide, it ensures a higher cutting speed and significantly longer blade life.
• Heavy Duty Backing: The cotton-polyester canvas backing (Y/YF weight) is designed to withstand medium to high pressure, ideal for treating sharp edges without the risk of premature fraying.
• Flat Design (Type 27): The flat shape is optimized for machining large, flat surfaces, offering superior control and a smooth finish without unwanted grooves.
• Resin Bond: Designed to withstand the high temperatures developed during grinding, preventing bond deterioration and maintaining the integrity of the disc even under intensive use.
• Superior Finish: Under standard conditions, 566A flap discs produce a one degree finer finish than fiber discs of the same grit, reducing the need for subsequent finishing steps.

Product Specifications

• Overall Diameter: 125 mm.
• Center Hole: 22.23 mm.
• Available grits: 40, 60, 80, 120.
• Maximum Speed: 12,000 rpm.
• Shape: Flat (Type 27).
• Technical expiration date: 10 years (3650 days) from production.

Applications and Compatible Materials

566A discs are suitable for use on a wide range of metals, including carbon steel, stainless steel, cast iron, aluminum, and hard alloys . Key applications include:

• Weld Removal: Lower and level weld seams in one step.
• Carpentry and Maintenance: Deburring cut edges, removing rust and oxides.
• Surface Preparation: Conditioning metal before painting or masking.
