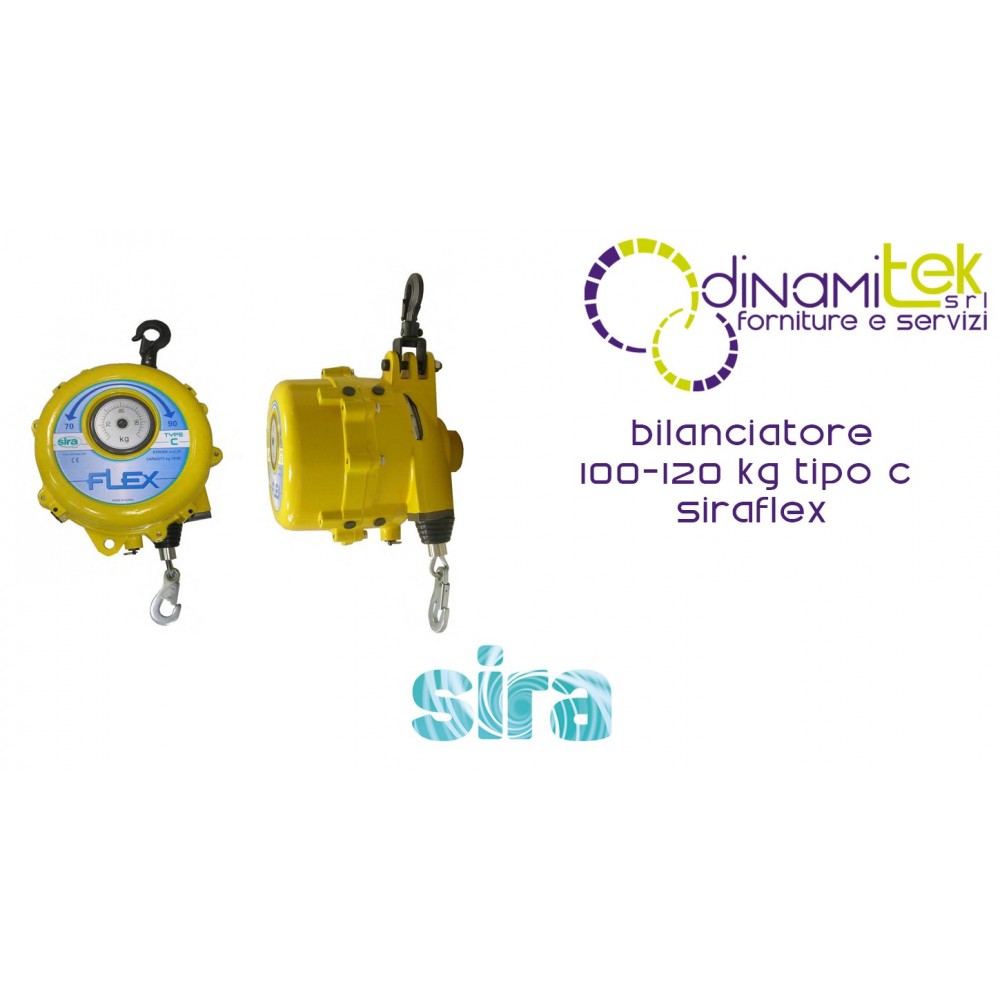

XFLEX-120 BALANCER TYPE 100-120 KG C SIRAFLEX
BALANCER TYPE 100-120 KG C SIRAFLEX
FLEX model
load capacity 100-120 Kg
weight 30 Kg
Length 571 mm
Width 264 mm
Thickness 305.5 mm
Rope length 2.1 m
BALANCER TYPE 100-120 KG C SIRAFLEX
Big load balancer. The large load range includes 3 sira Type C balancers
FLEX-90 ranging from 70 to 90 kg
FLEX-105 ranging from 85 to 105 Kg
FLEX-120 ranging from 100 to 120 kg
For this type of load it is important to rely on reliable equipment to work in total safety.
This series is equipped with a safety device against spring breakage and manual stop.
The hook is rotating and has a floating coupling. a cable stop is supplied as an option.
The balancer is equipped with a guide for inserting the cable.
Thanks to an inspection hole it is possible to observe the inside of the balancer and evaluate its status.
FEATURES
The sira Type C balancer has a metal body.
Both the spring load and the cable stroke can be adjusted.
Cable length 2.1 meters
FLEX-120 DETAILS
The load regulator has 36 teeth
DATA SHEET
FLEX model
load capacity 100-120 Kg
weight 30 Kg
Length 571 mm
Width 264 mm
Thickness 305.5 mm
Rope length 2.1 m
