BALANCER TYPE 85-105 KG C SIRAFLEX

Balancer for large loads. Rely on siraflex experience for important loads. On this range it becomes essential to use a balancer that reduces operator fatigue. In this way the same can proceed without needing to stop often, reducing downtime and increasing productivity.

Type C balancers are equipped with a metal body and a steel cable. Furthermore, since it is a large capacity balancer, it is equipped with a safety device against spring breakage.

Both the cable stroke and the spring load can be adjusted.

CONSTRUCTION DETAILS

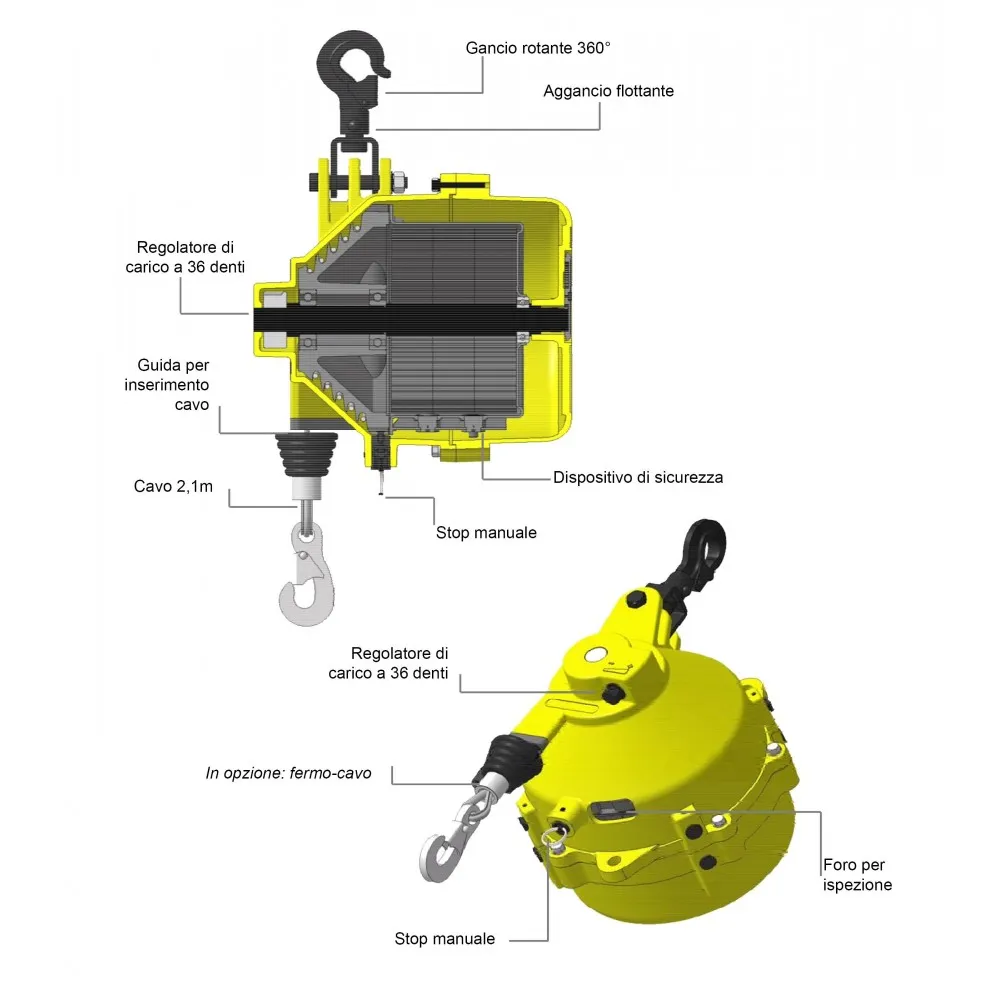

The image produced is intended to show the construction details of the balancer and to highlight why a sira large-range balancer is reliable.

Each balancer has a hole on the body for inspection to evaluate the internal condition.

There is a manual safety stop at the base of the structure, on the side where the cable starts, in addition to the safety device. A cable clamp is supplied as an option.

The load regulator + with 36 teeth.

The cable, in the 3 large load models ( FLEX-90 , FLEX-105, FLEX-120 ) is 2.1 meters long, a measure designed to ensure maximum safety during use. the balancer is also equipped with a guide for inserting the cable, to facilitate commissioning operations.

The hook for hanging the balancer is 360 degree rotating and the hook is floating.

DATA SHEET

FLEX model
load capacity 85-105 Kg
weight 29 Kg
Length 571 mm
Width 264 mm
Thickness 305.5 mm
Rope length 2.1 m

CE conformity
