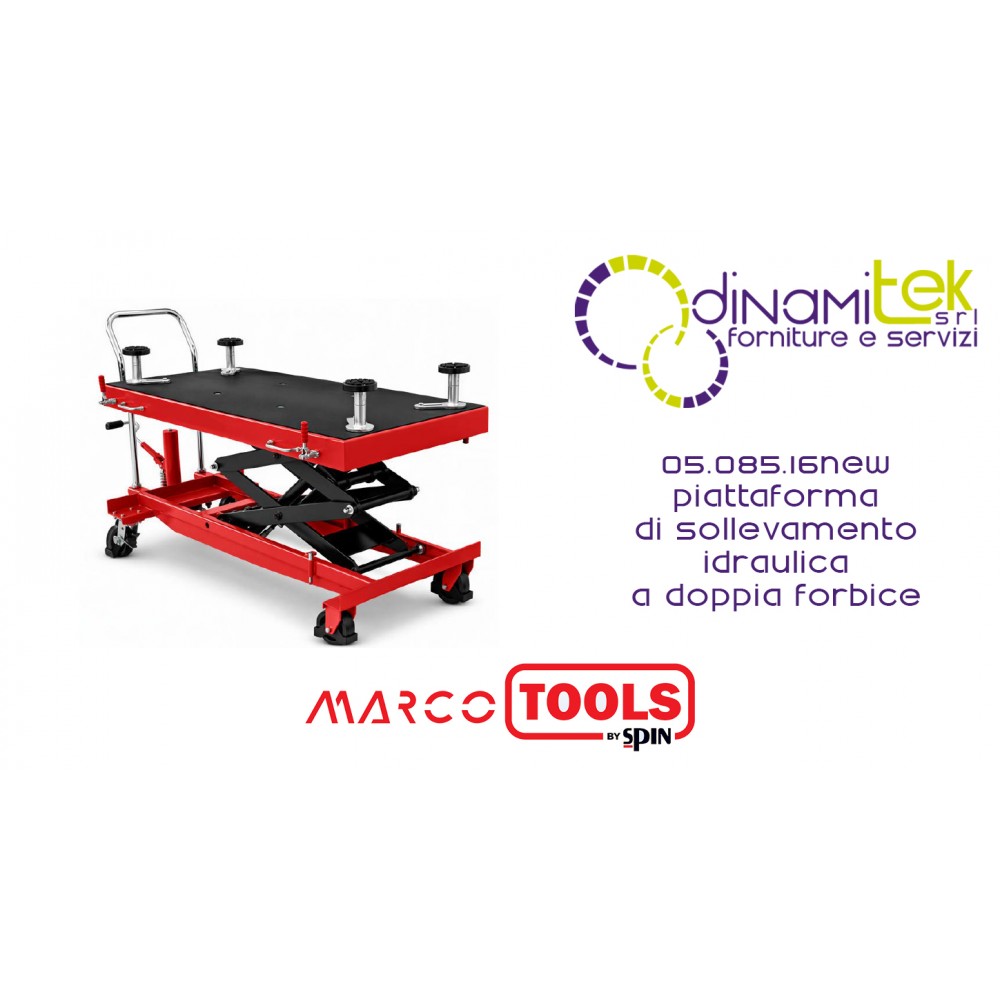

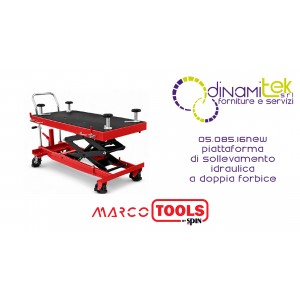

05.085.16/NEW HYDRAULIC LIFTING PLATFORM (DOUBLE SCISSOR) CAPACITY 1000KG MARCO TOOLS SPIN

The essential solution for the maintenance of new-generation vehicles. The Spin hydraulic lifting platform (Code 05.085.16NEW) is a specialized double-scissor lift designed for workshops that work on hybrid and electric vehicles . With a capacity of 1000 kg and a generous 130x80 cm work surface, it is the ideal tool for the dismantling and safe handling of engines, gearboxes and lithium battery packs , ensuring stable and adjustable support during every phase of the service.

Shipping cost: €50.00 for
2562 €
Tax included

2.100,00 € Tax excluded

Quantity
Available product, order it now.

Operational Efficiency for E-Mobility and Heavy Machinery

The 05.085.16NEW model was developed by Spin to meet the challenges posed by the heavy components of modern electrified powertrains. Thanks to the double-scissor system, this platform can reach a maximum height of 175 cm , offering the technician greater positioning flexibility than standard models.

Technical Features and Safety

  • High Load Capacity: Designed to hold up to 1000kg, it effortlessly handles the largest battery packs and integrated powertrains.
  • Double Piston Lifting System: Equipped with two hydraulic pistons and a mechanical release rack, it ensures a smooth ascent and constant passive safety against accidental descents.
  • Positioning Precision: The 130x80 cm work surface is equipped with height-adjustable brackets (160÷210 mm), essential for correctly interfacing the platform with the vehicle's specific anchoring points.
  • Hydraulic Foot Control: Allows the operator to adjust the height while keeping their hands free to guide the component during extraction or assembly phases.
  • Mobility and Stability: The structure rests on high-resistance polyurethane wheels, equipped with a brake and locking system to ensure maximum stability of the workstation once positioned under the lifting bridge.

Strategic Areas of Use

  • Replacement and maintenance of lithium battery packs on EV and PHEV vehicles.
  • Overhaul of automatic gearboxes and hybrid transmissions.
  • Support for the complete disassembly of the engine/frame assembly.
  • Internal logistics for the movement of heavy mechanical components.

Technical Specifications

  • Product Code: 05.085.16NEW
  • Brand: Spin (Marcotools Line)
  • Maximum load: 1000 kg
  • Minimum height: 55 cm
  • Maximum height: 175 cm
  • Platform Dimensions: 1300 x 800 mm
  • Net Weight: 270 kg
  • Packaging dimensions: 1830 x 830 x 700 mm
Professional equipment for car and motorcycle repair and maintenance

MARCO TOOLS: UTENSILI E ATTREZZATURE PROFESSIONALI PER OFFICINA E MANUTENZIONE

Marco Tools è un marchio specializzato in utensili manuali, attrezzature da officina e soluzioni per manutenzione professionale, pensato per meccanici, manutentori, carrozzerie, artigiani e reparti industriali.

La gamma comprende chiavi, bussole, cricchetti, pinze, cacciaviti, set assortiti, avviatori, attrezzature per sollevamento, strumenti per meccanica, carrelli portautensili e soluzioni dedicate alla manutenzione quotidiana. Ogni prodotto si distingue per materiali resistenti, ergonomia, accuratezza dimensionale e rapporto qualità/prezzo competitivo.

La nuova linea Marco Tools per auto elettriche include utensili isolati, attrezzature per interventi su sistemi ad alta tensione, strumenti per diagnosi EV e soluzioni specifiche per la manutenzione dei veicoli elettrici e ibridi. Prodotti progettati per garantire sicurezza, precisione e conformità alle normative tecniche dei moderni powertrain elettrici.

I meccanici scelgono Marco Tools per la robustezza, versatilità e convenienza delle attrezzature per auto, moto e truck.
