05.085.14 MARCO TOOLS 500KG CAPACITY MOTORCYCLE LIFTING STAND ON BRIDGE SPIN

The Ideal Partner for Underbody and Suspension Service

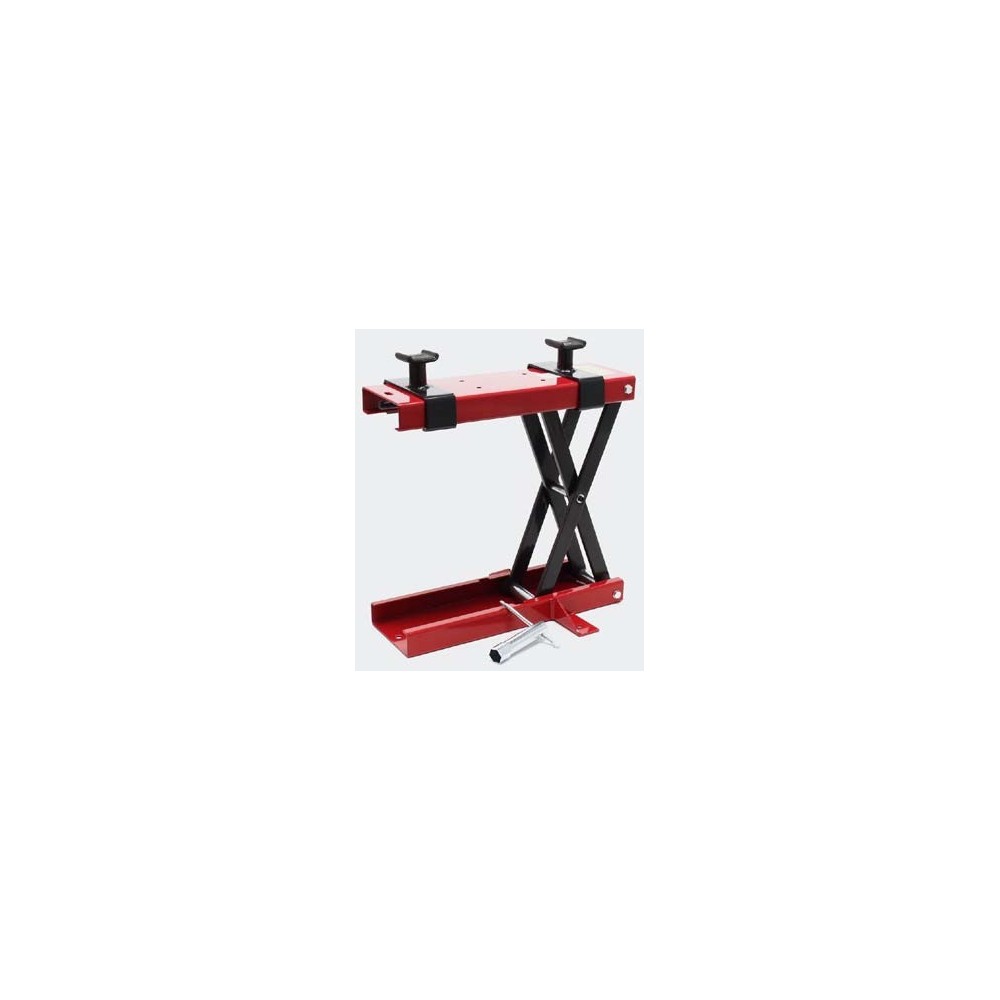

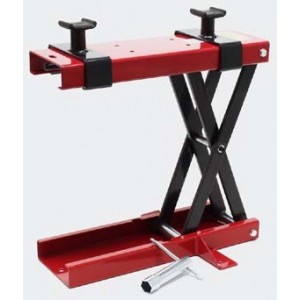

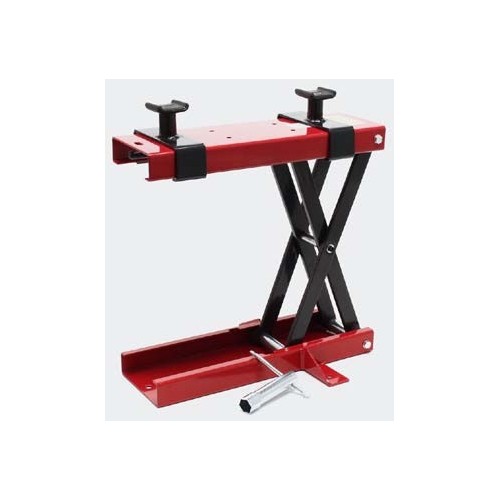

The Spin model, Cod. 05.085.14 (Motorcycle Lift Stand), represents a fundamental technical solution for workshops that already have a motorcycle lift and require an additional adjustable support point. Its scissor-type mechanical structure is designed to ensure maximum stability, allowing the mechanic to work ergonomically and safely.

Excellent Functional Features

• High Load Capacity (500 kg): The robustness of the construction materials allows you to easily lift even large motorcycles, customs and heavy quads.
• Calibrated Technical Range: With a minimum height of just 90 mm, the tool can be easily positioned under the vehicle chassis, reaching a maximum height of 420 mm to offer the best possible range of action during intervention.
• Optimized Support Platform: The 450 x 150 mm work surface ensures a stable grip on the frame lifting points, minimizing the risk of accidental slips.
• Space-Saving and Sturdy Design: Despite its strength, the easel maintains a net weight of only 15 kg, making it easy to move and position on the deck.
• Spin Reliability: Part of the specialist line for motorcycle workshops, it is built to withstand mechanical stress and intensive daily use in a professional environment.

Areas of Use

• Professional Motorcycle Workshops: Used as auxiliary support on electro-hydraulic or pedal-operated lifting bridges.
• Replacing Tires and Brakes: Ideal for removing wheels from the ground and allowing you to work freely on the hubs.
• Suspension Overhaul: Stable support for detachment of front forks and rear shock absorbers.

Technical Specifications

• Product Code: 05.085.14
• Brand: Spin (Marcotools line)
• Maximum capacity: 500 kg
• Minimum height: 90 mm
• Maximum height: 420 mm
• Platform dimensions: 450 x 150 mm
• Net weight: 15 kg
• Packaging dimensions: 495 x 310 x 90 mm
