05.085.12 MARCO TOOLS ENGINE SUPPORT STAND SPIN
Stability and safety for your mechanical overhauls. The Spin engine support stand (Code 05.085.12) is the essential professional equipment for any workshop requiring sturdy and reliable support during engine overhauls and repairs. Thanks to its 550 kg load capacity and 6-wheel configuration, it allows you to move and support medium and large engines in complete balance and protection for the operator.
Shipping cost: €25.00
for
The Robust Partner for Engine Maintenance

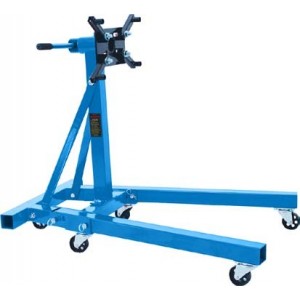

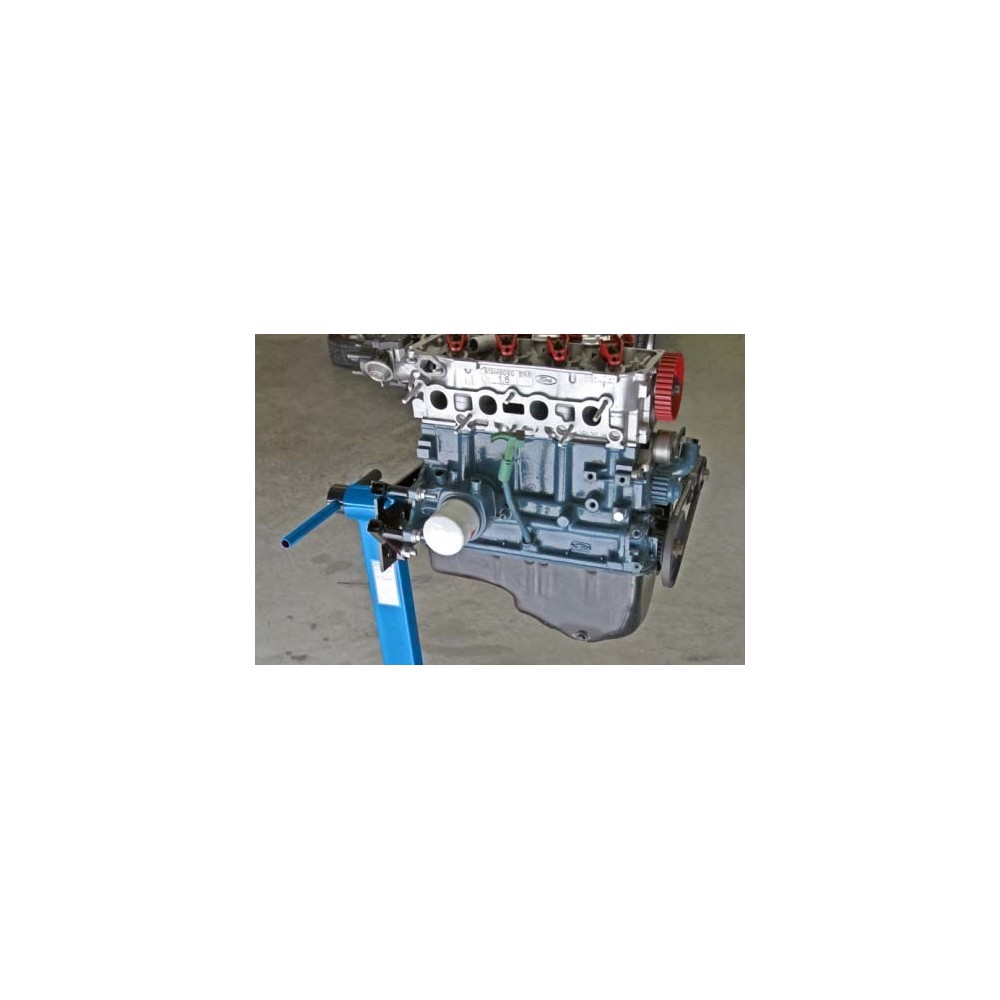

The Spin model Cod. 05.085.12 (Engine Support Stand) is designed to provide an ergonomic and safe working environment when the engine is removed from the vehicle compartment. Its reinforced steel structure is designed to ensure maximum resistance to mechanical stress and a long life, even under intensive use in the workshop.
Excellent Functional Features
- High Load Capacity: Certified to support weights up to 550kg, making it suitable for almost all car and light commercial vehicle engines.
- Maximum Stability with 6 Wheels: Unlike standard 4-wheel models, this version is equipped with 6 heavy-duty swivel wheels. This configuration ensures superior load distribution and prevents the risk of tipping when moving or rotating the engine block.
- Versatile Mounting Plate: The tool features a large mounting plate (250 x 150 x 12 mm) with adjustable arms, allowing for secure mounting of various engine architectures.
- Optimal Working Height: With a ground clearance of 80 cm, the technician can work on the internal and external components of the engine while maintaining an ergonomic posture, reducing physical stress during long interventions.
- Smooth Movement: Wheels allow the engine to be moved with minimal effort from the disassembly area to the workbench or component wash area.
Areas of Use
- Mechanical Workshops: Complete overhaul of cylinder heads, crankshafts, and pistons.
- Restoration Centers: Ideal support for the cleaning and aesthetic restoration of vintage engines.
- Schools and Technical Training Centers: A safe teaching tool for studying thermal groups.
Technical Specifications
- Product Code: 05.085.12
- Brand: Spin (Marcotools line)
- Load capacity: 550 kg
- Number of wheels: 6
- Height from ground: 80 cm
- Fixing plate dimensions: 250 x 150 x 12 mm
- Net weight: 36 kg
Professional equipment for car and motorcycle repair and maintenance
MARCO TOOLS: UTENSILI E ATTREZZATURE PROFESSIONALI PER OFFICINA E MANUTENZIONE
Marco Tools è un marchio specializzato in utensili manuali, attrezzature da officina e soluzioni per manutenzione professionale, pensato per meccanici, manutentori, carrozzerie, artigiani e reparti industriali.
La gamma comprende chiavi, bussole, cricchetti, pinze, cacciaviti, set assortiti, avviatori, attrezzature per sollevamento, strumenti per meccanica, carrelli portautensili e soluzioni dedicate alla manutenzione quotidiana. Ogni prodotto si distingue per materiali resistenti, ergonomia, accuratezza dimensionale e rapporto qualità/prezzo competitivo.
La nuova linea Marco Tools per auto elettriche include utensili isolati, attrezzature per interventi su sistemi ad alta tensione, strumenti per diagnosi EV e soluzioni specifiche per la manutenzione dei veicoli elettrici e ibridi. Prodotti progettati per garantire sicurezza, precisione e conformità alle normative tecniche dei moderni powertrain elettrici.
I meccanici scelgono Marco Tools per la robustezza, versatilità e convenienza delle attrezzature per auto, moto e truck.
