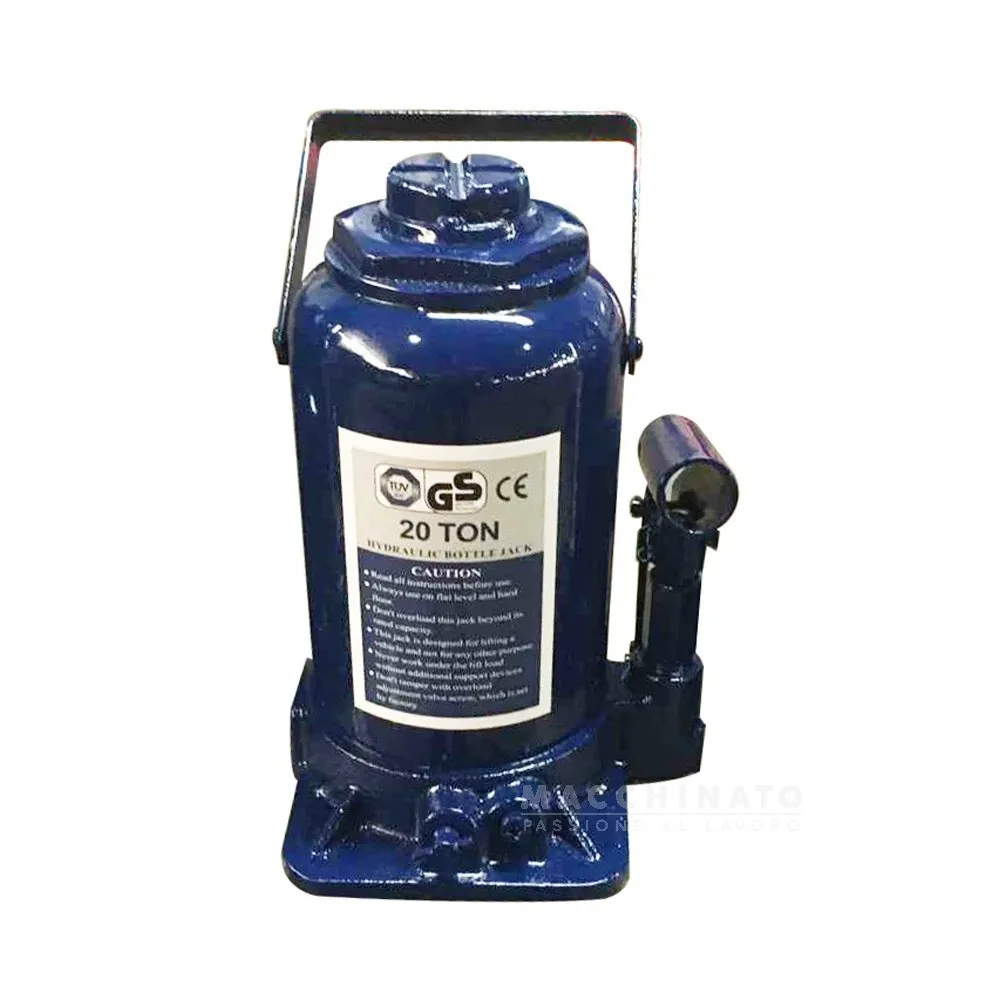

05.084.16 20 T CAPACITY BOTTLE JACK MARCO TOOLS SPIN

Superior hydraulic power for heavy lifting. The Spin bottle jack (Code 05.084.16) is the professional hand tool with a certified load capacity of 20 tons . Designed for use on trucks, agricultural vehicles, and industrial machinery, it combines a compact, high-strength steel frame with a 60 mm upper adjustment screw for optimized lift. It's the perfect solution for the workshop or as a roadside assistance kit for quick and safe interventions.

Shipping cost: €50.00 for
70,76 €
Tax included

58,00 € Tax excluded

Quantity
Available product, order it now.

Reliability and Millimetric Control for Heavy Vehicles

The Spin model Cod. 05.084.16 represents one of the most powerful options within the Marcotools range of manual jacks. Built to withstand the intensive use typical of the Truck, Agri and Earthmoving sectors, this jack ensures stability and precision thanks to its high-quality hydraulic system and a reinforced support base.

Functional Features and Benefits

  • High Load Capacity (20T) : Suitable for lifting axles and structural components of heavy industrial and commercial vehicles.
  • Adjustable Extension Screw: The piston head integrates a 60mm extension screw, which allows you to quickly close the gap between the jack and the vehicle, ensuring that every millimeter of the hydraulic lift is effectively used.
  • High-Performance Technical Lift: With a minimum height of 235 mm, the tool can be easily positioned under the main support points, offering a net hydraulic lift of 145 mm.
  • Manual Lever Operation: The system is operated via a lever (included) which reduces the physical effort required by the operator, while allowing total control during the descent phase via the discharge valve.
  • Emergency-Optimized Design: Despite its great power, its compact size allows for easy stowage in truck lockers, making it an essential component of the roadside assistance kit.
  • High-Duty Construction: Constructed with premium materials and industrial seals to prevent oil leaks and ensure long operating life in harsh environments.

Areas of Application

  • Heavy Machine Shops: Brake and suspension maintenance and tire changes on trucks and buses.
  • Agricultural Sector: Lifting of large tractors and trailers.
  • Construction Site and Logistics: Positioning and leveling of metal structures or machinery.

Technical Specifications

  • Product Code: 05.084.16
  • Brand: Spin (Marcotools line)
  • Lifting capacity: 20 tons
  • Minimum height: 235 mm
  • Hydraulic lift (Riser): 145 mm
  • Upper screw adjustment: 60 mm
  • Maximum total height: 440 mm
Professional equipment for car and motorcycle repair and maintenance
