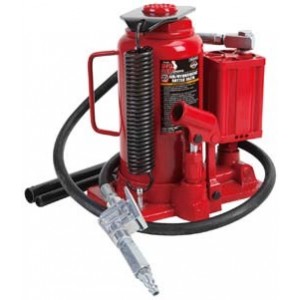

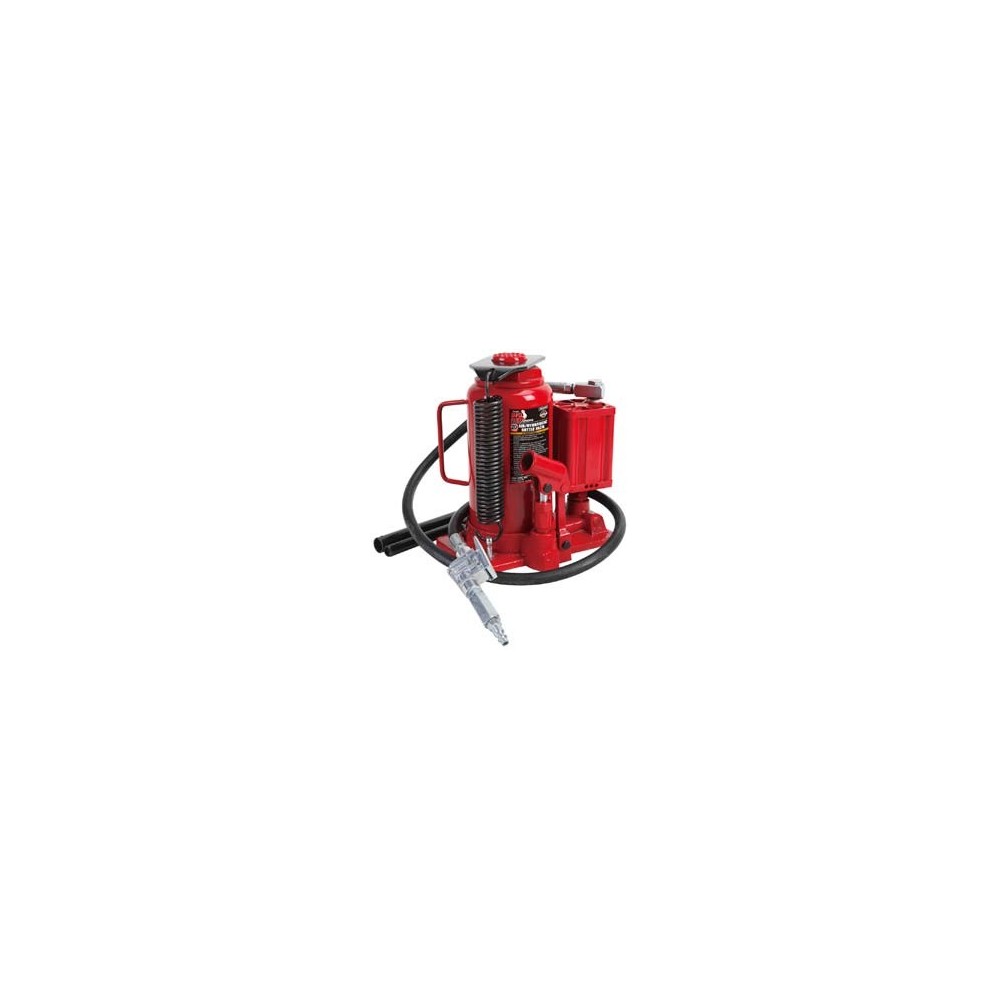

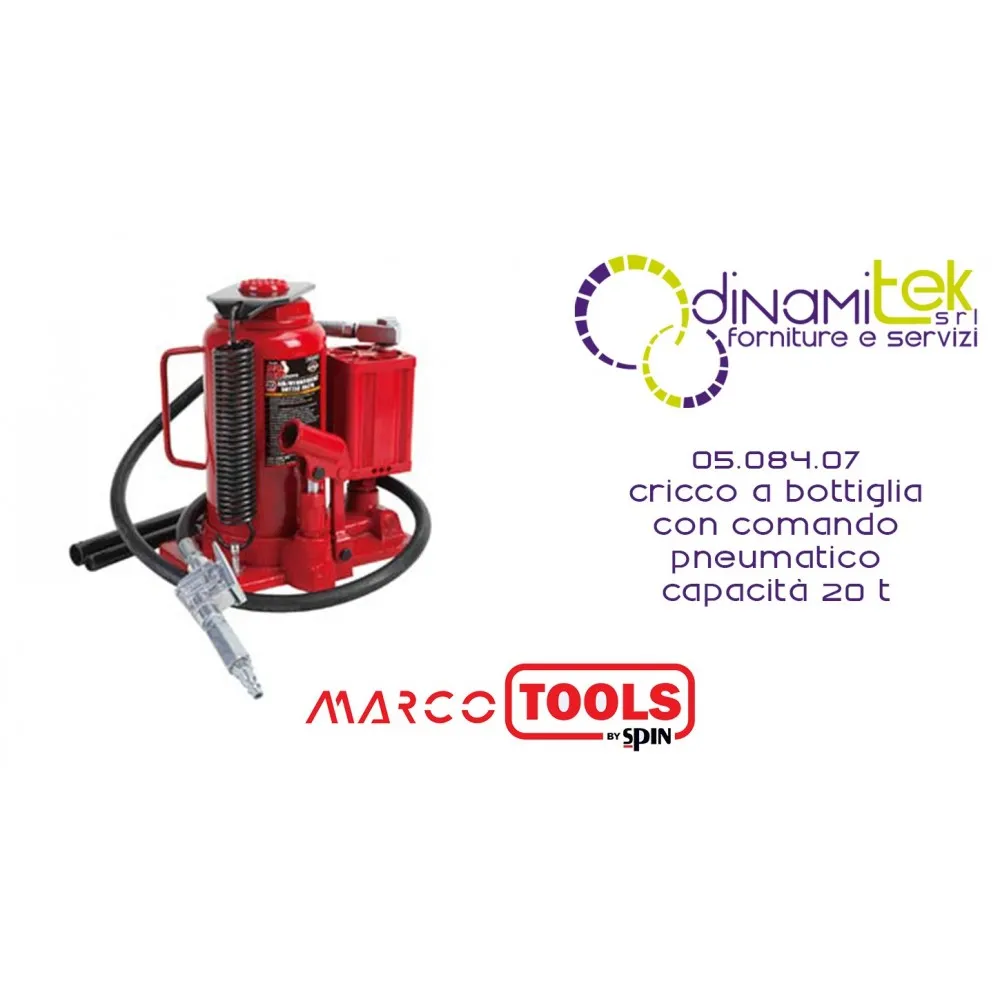

05.084.07 PNEUMATICALLY OPERATED BOTTLE JACK, 20 T CAPACITY MARCO TOOLS SPIN
Extreme lifting power for heavy-duty applications. The Spin bottle jack (Code 05.084.07) is the professional tool designed for use on trucks, agricultural vehicles, and earthmoving machinery. With a load capacity of 20 tons , this lift combines the speed of a pneumatic-hydraulic system with the versatility of manual lever operation, making it the ideal companion for both intensive workshop use and as an emergency roadside assistance kit.
Shipping cost: Free
for
Robust Solution for Trucks, Agri and Earthmoving
The Spin model, Cod. 05.084.07, represents the standard of reliability for industrial vehicle servicing. Its compact yet extremely durable bottle-shaped structure has been developed to withstand heavy duty cycles, offering superior stability thanks to the generously sized support base (165 x 224 mm).
Main Features and Operational Benefits
- Dual Drive System: The lamp can be connected to a compressed air system for quick and effortless lifting (0.8 – 0.95 Mpa), or operated manually via the supplied lever if a pneumatic source is not available.
- Calibrated Technical Lift: Offers a minimum height of 210 mm, ideal for fitting under bridges and truck frames, reaching a maximum extension of 340 mm with a net lift of 130 mm.
- Designed for Roadside Assistance: Thanks to its compact size and balanced weight (13.5 kg), it is perfect as on-board equipment for drivers and external technical assistance vehicles.
- High-Duty Construction: Made of selected steels and high-quality seals to prevent oil leaks and ensure a long operating life even in harsh outdoor environments.
- Stabilized Base: The rectangular shape ensures uniform load distribution, minimizing the risk of tipping during underbody maintenance.
Areas of Application
- Truck and Bus Sector: Tire replacement and suspension maintenance on heavy vehicles.
- Agricultural Mechanics: Interventions on large tractors and trailers.
- Construction Sites and Logistics: Lifting of industrial machinery and heavy structures.
Technical Specifications
- Product Code: 05.084.07
- Brand: Spin (Marcotools - Truck/Agri/Moving machines line)
- Capacity: 20 Tons
- Minimum height: 210 mm
- Maximum height: 340 mm
- Max lift: 130 mm
- Required Air Pressure: 0.8 – 0.95 Mpa (8-9.5 Bar)
- Base Dimensions: 165 x 224 mm
