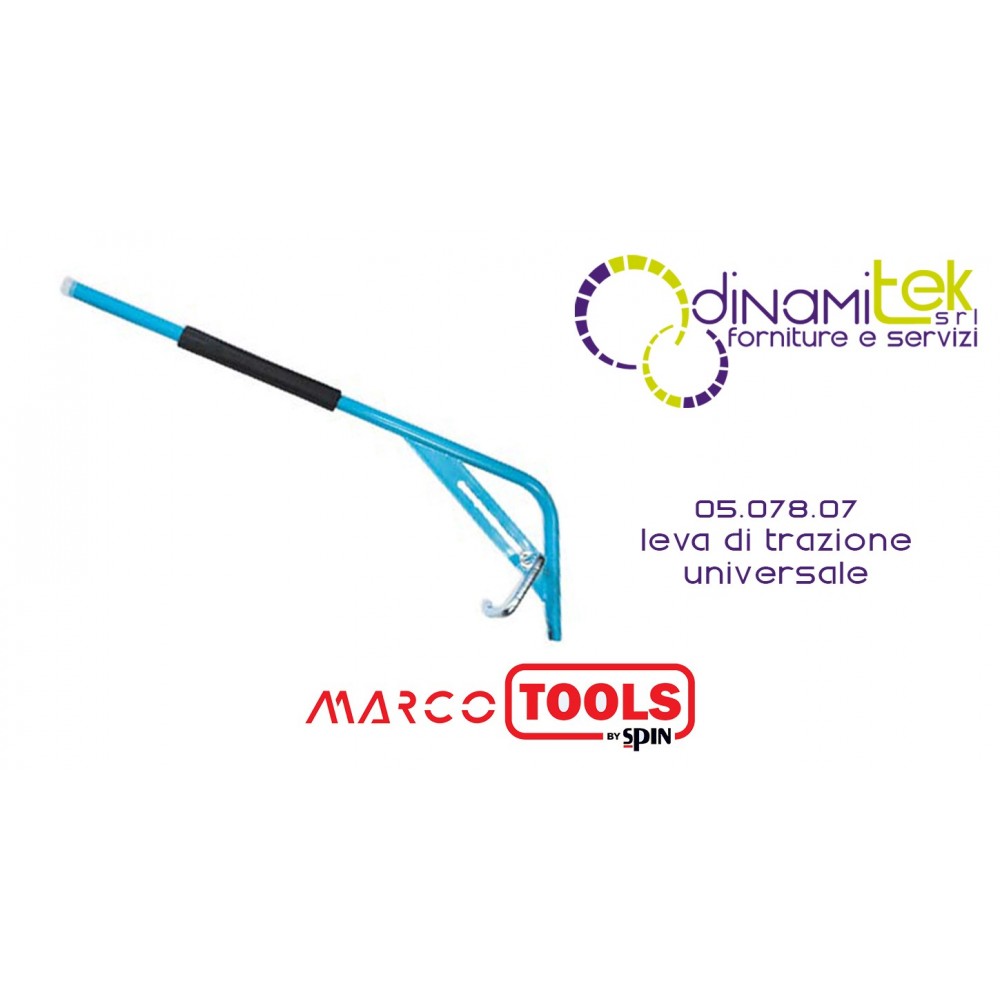

05.078.07 MARCO TOOLS UNIVERSAL PULL LEVER SPIN

Power and Control in Suspension Interventions

Model Spin Cod. 05.073.07, known as the Wishbone Lever Tool , is designed to solve one of the most strenuous operations in automotive mechanics: detaching suspension arms from their housings. The robust structure and calibrated dimensions offer a superior mechanical advantage, drastically reducing operating times and physical stress for the operator.

Functional Features and Design

• Optimized Length (120 cm): The extended lever arm allows you to generate a high pulling force even on oxidized or jammed components, operating in an ergonomic position.
• Adjustable Brace Distance: The lever features calibrated holes to vary the brace distance at 30, 35, 40, 45, and 50 cm. This modularity makes it a universal tool, adaptable to different suspension designs and vehicle sizes.
• Engineered Steel Construction: The 3.5cm diameter tube is built to withstand significant tensile loads without bending or warping, ensuring a long service life even under intensive use.
• Secure Anchor Hook: The coupling system is designed to lock securely to the swing arm, preventing accidental slippage that could damage the vehicle or injure the user.

Areas of Application

• Shock Absorber Replacement: Facilitates lowering the arm to remove the spring-shock absorber assembly.
• Joint and Tie Rod Service: Facilitates the separation of ball joints and tie rod ends from the steering knuckle.
• Front and Rear End Maintenance: Ideal for any job requiring the forced movement or stationing of suspension components.

Technical Specifications

• Product Code: 05.078.07
• Brand: Spin (Marcotools line)
• Total length: 120 cm
• Tube Diameter: 3.5 cm
• Fixing Positions: 5 (30, 35, 40, 45, 50 cm)
