XKM040 ZETEK CLAMP MULTIMETER
ZETEK KM040 CLAMP MULTIMETER
KM040

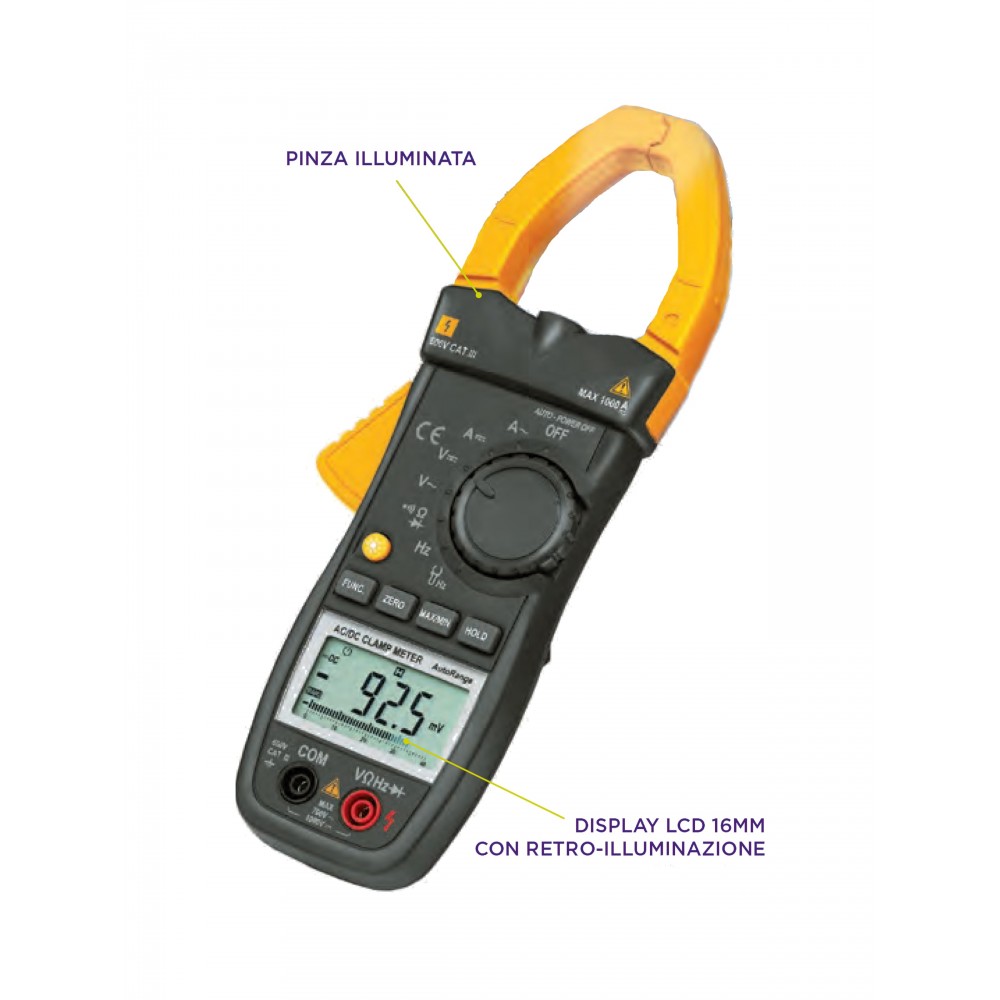

ILLUMINATED CLAMP MULTIMETER
Clamp meter / Multimeter. This instrument allows you to take current measurements (up to 1000A) without disconnecting the load. It also allows you to perform all the measurements of a standard multimeter.
16mm LCD display with backlight
42-segment numeric and bar display.
Autoranging.
Supplied with a handy case.
TECHNICAL CHARACTERISTICS
Voltage DC 4V, 40V, 400V, 600V, 1000V
Voltage AC 4V, 40V, 400V, 600V, 700V
DC current 40A, 400A, 1000A
AC current 40A, 400A, 1000A
Resistor 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Duty Cycle 0.1 - 99.9%
Continuity Relt;50Ω
Diode Test
Frequency 40Hz, 400Hz, 4kHz, 40kHz, 100kHz
Maximum voltage 600V AC/DC
Auto power off 30 min
Power supply 3 x 1.5V AAA batteries (not supplied)
